5A High-Current 0344 Swage Mount Receptacle

Product Core Value: Stable, High-Current, and Interchangeable

The 0344 Swage Mount Receptacle is a precision connector specifically designed for Printed Circuit Boards ($\text{PCB}$) requiring high reliability and high current transmission. It utilizes a unique Swage Mount installation method, ensuring exceptional mechanical stability and vibration resistance, making it the ideal choice for demanding operating environments.

• High Current Capacity: Rated current up to 5$\mathbf{A}$, easily meeting the needs of high-performance devices.
• Broad Compatibility: Accepts pins with diameters ranging from $0.813\text{mm}$ to $1.168\text{mm}$ (\mathbf{.032\text{“-.046\text{“}}), suitable for various standard and non-standard probes/pin connections.
• Alternative Solution: A high-performance alternative for engineers and procurement professionals seeking options to mainstream brand connectors (e.g., $\text{Mill-Max}$ series).

Your Non-Standard Solution Expert: Custom Engineering Services

Low exposure is often due to standard products failing to meet specialized requirements. Our core competence is providing you with customization capabilities that go beyond standard specifications.

If your design has specific demands for materials, plating, or dimensions, our experienced engineering team can engage from the concept stage to provide a complete solution.

Customization Area	Problems Solved	Contact Us Now
Material & Plating	Need higher corrosion resistance or specific contact resistance?	Copper alloy, Beryllium Copper, heavy Gold or Nickel plating
Geometric Dimensions	Need different lengths, smaller mounting holes, or special tail designs?	Change housing diameter, bore size, accept non-standard pins
Environmental Compliance	Meet specific $\text{RoHS}$ or REACH environmental requirements.	Provide customized compliance certifications and reports

We are dedicated to transforming your non-standard challenges into high-performance, mass-producible products.

Core Technical Specifications

To ensure accurate selection for your design, here are the key performance parameters for the 0344 Swage Mount Receptacle:

Feature	Specification	Notes / Advantage
Product Model	0344	High-precision machined receptacle
Mount Type	Swage Mount	Provides exceptional mechanical stability
Acceptable Pin Range	$0.813\text{mm}-1.168\text{mm}$ (\mathbf{.032\text{“-.046\text{“}})	Wide compatibility
Recommended Mount Hole	$1.702\text{mm}$ ($.067\text{“}$)	$\text{PCB}$ hole standard
Rated Current	$5A$	Based on $\text{10°C}$ temperature rise test
Contact Resistance	$10\text{m}\mathbf{\Omega }$ Max	Ensures signal integrity
Mechanical Life	$1,000$ Cycles $\text{Min}$	Suitable for frequent mating applications
Operating Temp Range	−55∘C/+125∘C	Suitable for harsh industrial environments
Housing Material/Plating	Brass Alloy / $\text{200-300mu}\text{“}$ Tin/Lead over Nickel	Optional Gold or pure Nickel available for $\text{RoHS}$ compliance



$\text{FAQ}$

We’ve compiled the most common questions posed by engineers and procurement personnel regarding the 0344 series:

Q1: What is “Swage Mount,” and what are its advantages?

A: Swage Mount is a mechanical fastening method that eliminates the need for soldering. Pressure is used to squeeze the edge of the connector’s tail into the $\text{PCB}$ mounting hole, forming a permanent mechanical and electrical connection. Advantage: It significantly improves the connector’s vibration resistance and mechanical stability, making it ideal for high-impact, high-reliability applications.

Q2: How is the 5$\mathbf{A}$ current rating of the $\text{0344}$ measured?

A: The 5$\mathbf{A}$ rating is determined according to industry standards, where the temperature rise of the connector does not exceed 10∘C when the current passes through. This metric is essential for applications requiring stable, high-power transfer, such as power modules, battery management systems, or industrial controllers.

Q3: Can the $\text{0344}$ be used as an alternative to similar products from other brands?

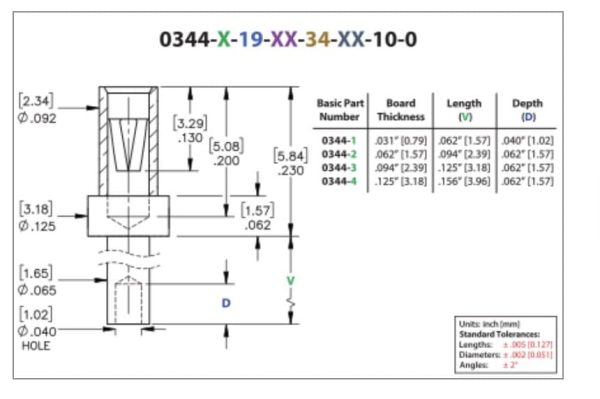

A: Yes. The $\text{0344}$ is designed to be compatible with several mainstream brand $0.8\text{mm}$ series receptacles. It is particularly suitable for buyers looking for a cost-effective alternative with more flexible customization services. We recommend downloading our $\text{PDF}$ drawing for a direct comparison of dimensions and performance with your existing materials.

Q4: What are the lead times for samples and the Minimum Order Quantity ($\text{MOQ}$)?

A: Samples for standard $0344$ products are typically shipped within $24$ hours. The $\text{MOQ}$ for standard models is flexible; please consult our sales representative for the latest bulk purchase policy. For custom models, the $\text{MOQ}$ will be determined based on the complexity of the design.

Q5: I want to customize a part. What information do I need to provide?

A: To expedite the customization process, please provide as much of the following information as possible:

1. The Target Pin Diameter.
2. The Required Overall Length or installed height.
3. Specific Plating Requirements (e.g., gold thickness, nickel plating).
4. Annual Usage forecast, which is used for cost calculation.

Contact Us: Get Samples or a Custom Quote Now

Are you looking for a reliable alternative to high-current connectors? Or does your design require a non-standard size receptacle?

Please click the button below to tell us about your project requirements and volume. We promise to respond within $12$ hours.
