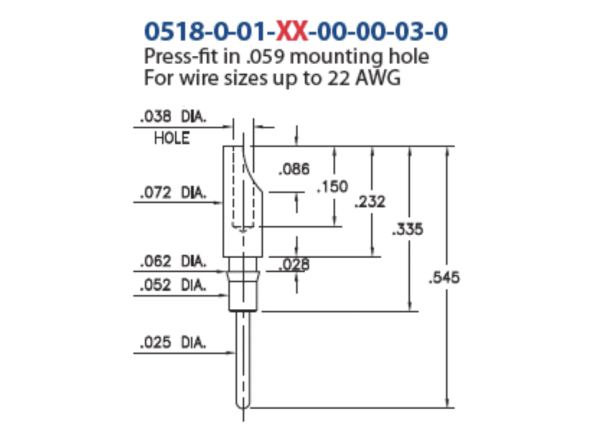

welding wire type 0518 Solder Cup Terminal Pin

The JIATEL 0518 Solder Cup Terminal Pin is a precision-machined component designed to provide a secure and efficient wire-to-board connection. It features a solder cup design that simplifies the soldering process, allowing for the creation of robust and reliable electrical joints. This terminal pin is an excellent solution for applications where wires need to be terminated cleanly and securely to a PCB or another electronic component.

Key Features

• Secure Solder Cup Design: The solder cup allows for easy wire insertion and holds the wire in place during the soldering process. This design facilitates a strong, reliable connection that is resistant to mechanical stress.
• Efficient Termination: By providing a dedicated receptacle for the wire, the solder cup eliminates the frustration of handling and soldering fine gauge wires directly to a PCB, leading to cleaner and more efficient assembly.
• High-Quality Materials: Manufactured with precision-machined brass components, the terminal pin ensures excellent conductivity and durability.
• Versatile Application: This pin is a versatile solution for prototyping, custom cable assemblies, and various wire-to-board applications in industries such as industrial control, instrumentation, and consumer electronics.

Application Areas

• Custom Cable Assemblies: Ideal for creating clean, professional-grade wire harnesses and cable assemblies.
• Prototyping: Provides a robust, reusable connection point for rapid prototyping and circuit development.
• Wire-to-Board Applications: Perfect for permanently connecting wires to a PCB where a secure, durable joint is critical.
• Electronic Devices: Used in a wide range of electronic products requiring reliable internal wiring.
