1.27mm Single Row Pin Header: High-Density Board-to-Board Solutions

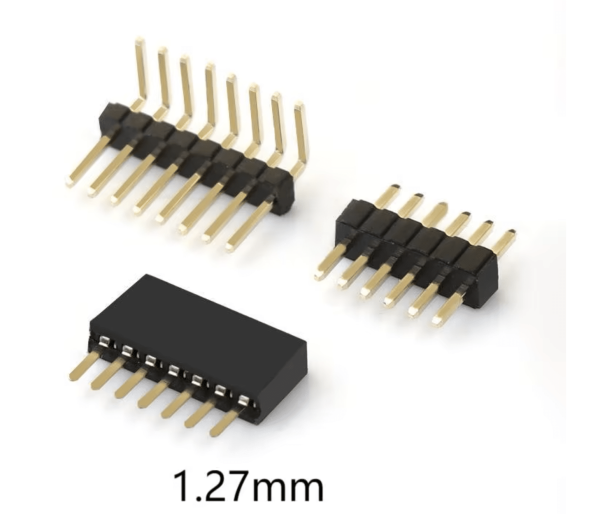

The 1.27mm Pitch Single Row Pin Header (180-degree Straight) from Jiatel is a precision-crafted connector designed for high-density PCB applications. As electronic devices become increasingly compact, our headers provide the robust connectivity needed while maximizing limited board space.
1. Key Features for Modern PCB Design
-
180° Straight Orientation: Perfect for vertical stacking in Board-to-Board (BTB) configurations.
-
High-Density Connectivity: The 1.27mm (0.05″) pitch allows for double the connection density compared to standard 2.54mm headers.
-
High-Temperature Material: Standard with PA6T or LCP insulator, making it fully compatible with Reflow Soldering processes (260°C).
-
Superior Conductivity: Available in Brass or Phosphor Bronze with selective Gold plating to ensure low contact resistance (<20mΩ).
2. Technical Specifications
| Item | Details |

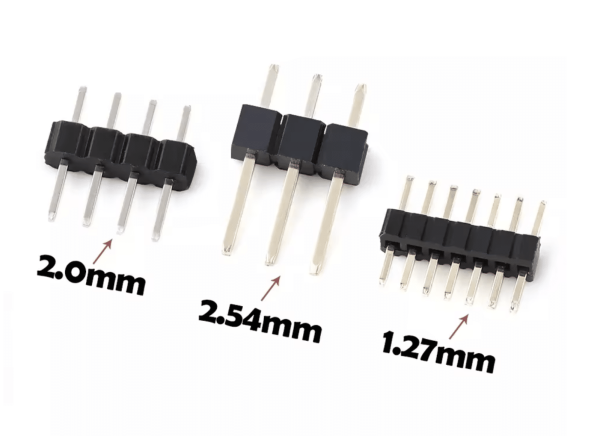

| Pitch | 1.27mm (also available in 2.0mm & 2.54mm) |
| Number of Pins | Single Row, 2 to 50 Pins |
| Contact Plating | Gold Flash, 3u” to 30u” Gold, or Tin over Nickel |
| Current Rating | 1.0A to 3.0A |
| Mechanical Life | >10,000 Cycles |
| Applications | Telecom, Medical, Controllers, Alarm Security |
3. Customization & Versatility
Jiatel is not just a supplier; we are a specialized manufacturer. We understand that one size doesn’t always fit all.
-
Variable Pin Lengths: We can customize the mating and solder tail lengths to fit your specific PCB stacking height.
-
Mating Female Headers: We provide perfectly matched Female Headers (FH) to complete your board-to-board interface.
-
Packaging: Available in Tube or Tape & Reel for automated SMT/THR assembly.
Why Choose Jiatel?
With over 10 years of experience in connector manufacturing, Jiatel guarantees quality, competitive pricing, and a rapid sample turnaround (usually 5-7 days).
Need a 3D STEP file or a custom pin length? Our engineering team is ready to assist. Contact us today for a factory-direct quote.
