Industrial-Grade 40-Pin Female Header Socket – 0.1” Spacing, Gold-Plated Contacts
Engineered for high-density connectivity, our 2×20 Female Header Socket delivers precision performance in professional and consumer applications.
Technical Specifications
- Pitch: 0.1” (2.54mm) centerline spacing, 0.1” pin spacing, 0.1” row spacing for dual-row design.
- Contact Material: Gold-plated phosphor bronze for superior conductivity and corrosion resistance.
- Mounting: Through-hole solder tails for secure PCB installation.
- Housing: Flame-retardant PA6T (UL 94 V-0), operating temperature range: -40°C to +105°C.

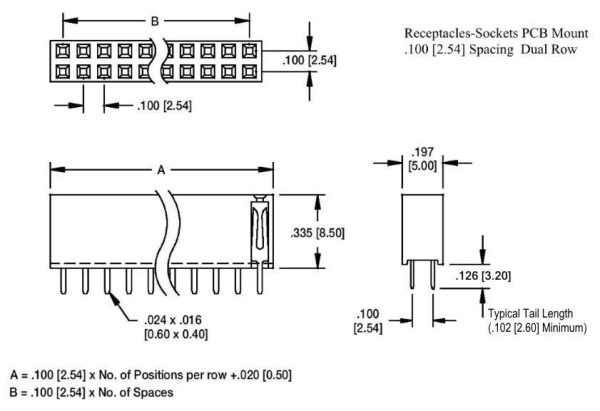

- Physical Dimensions: 0.335” (8.5mm) body height, compact yet robust.
Key Features
- 40-Pin Dual-Row Design: 2×20 configuration for space-efficient, high-density interconnections.
- Perfect Fit: Mates with 0.025” square post headers for secure mating.
- High Performance: 1A current rating, 1000V AC voltage resistance.
Applications
- Electronics: Server motherboards, network switches, and data storage devices.
- Home Appliances: Smart refrigerators, HVAC systems, and entertainment centers.
- Automotive Electronics: Advanced driver-assistance systems (ADAS), infotainment systems, and battery management modules.
- Medical Devices: MRI machines, patient monitoring systems, and diagnostic equipment.
Why Choose Our Header Socket?
- Bulk Discounts: Save on large quantities for production needs.
- Free Samples: Test compatibility before purchase.
- Quality Assurance: RoHS compliant with 90-day satisfaction guarantee.
Order Now and experience seamless connectivity. Contact us for custom solutions or bulk pricing!
