Industrial Grade 3x AAA SMT Battery Holder for Stable 4.5V Output in Data Loggers & Asset Trackers
Does your IoT Sensor Node, Data Logger, or Asset Tracking device require a stable 4.5V power source and a battery holder robust enough to survive SMT Reflow Soldering and continuous industrial vibration?
The Jiatel 3x AAA SMT Battery Holder is engineered to meet the highest reliability demands of Industrial IoT applications. By securely housing three AAA cells, it provides the essential $\text{4.5V}$ output needed for critical systems. We focus on guaranteeing stable supply and providing the detailed design support required to accelerate your product development cycle.
✅ For Engineers: Optimized for 4.5V Stability and Data Integrity
Our holder features critical design elements that ensure superior mechanical and electrical performance compared to standard parts:
- 4.5V SMT Stable Power: The 3-cell series configuration reliably delivers the 4.5V nominal voltage, making it perfect for microcontrollers and radio modules used in IoT Sensor Nodes.
- Reverse Polarity Protection: Optimized contact design provides built-in Reverse Polarity Protection, preventing potential circuit damage from incorrect battery insertion—a critical safety feature in field deployments.
- Superior Anti-Vibration Lock: Gold-plated contacts utilize high-strength material and a refined three-point retention structure, delivering exceptional spring tension. This mechanism effectively guards against power loss caused by shock and vibration in Asset Tracking applications.
- Lead-Free Solder Compatibility: The housing is molded from UL 94V-0 certified High Temp Nylon, guaranteeing structural integrity under the higher temperatures of Lead-Free Reflow Soldering (RoHS compliant).
- Low Contact Resistance: The use of gold plating assures ultra-low contact resistance over the product lifecycle, maximizing battery runtime and supporting the longevity of Data Logger applications.
💰 For Purchasing Managers: Supply Certainty and Global Compliance
Partner with Jiatel to simplify procurement and minimize the risks associated with critical components:
| Supply Advantage | Jiatel Commitment | Business Value |
| Stock Availability & Quick Delivery | We maintain stable inventory and guarantee rapid lead times, essential for high-volume IoT and Industrial Controls projects. | Eliminates supply chain gaps, preventing costly production downtime. |
| Global Compliance & Documentation | Parts are fully RoHS and REACH compliant. We provide comprehensive $\text{PPAP}$-level documentation and full material traceability. | Ensures smooth global market entry and simplifies quality assurance audits. |
| SMT Automation Packaging | Supplied in Tape & Reel (T&R) or Tray formats, fully compatible with your automated Pick-and-Place machinery. | Streamlines production, significantly reducing assembly error rates. |
| Total Cost of Ownership (TCO) Savings | Direct factory pricing combined with high component reliability results in a lower Total Cost of Ownership (TCO) compared to conventional sourcing. | Improves long-term profitability by minimizing field failures and rework. |
Technical Specification Comparison (Table Block)
| Parameter | Jiatel 3x AAA SMT | Competitor (Reference) | Key Advantage |
| Cell Count | 3 Cells | 3 Cells | ↑ (Stable 4.5V Output) |
| Target Application | IoT / Data Loggers | General Electronics | ↑ (Optimized for High Reliability) |
| Housing Material | UL 94V-0 High Temp Nylon | ABS / Polypropylene | ↑ (Reflow Soldering & Industrial Grade) |
| Contact Plating | Gold Plated Stainless Steel (Low Contact Resistance) | Nickel Plated Steel | ↑ (Anti-Oxidation & Enhanced Conductivity) |
| Key Feature | Reverse Polarity Protection | Standard Retention | ↑ (Increased Safety and Field Reliability) |
FAQ
Q: How does the Jiatel holder ensure protection against Reverse Polarity?
A: The contact design includes a specific geometry that only allows current flow when the batteries are correctly inserted. This integrated Reverse Polarity Protection is a critical safety feature for field-deployed IoT Sensor Nodes.
Q: Is the SMT Pad Layout standard, or do I need to adjust my PCB design?

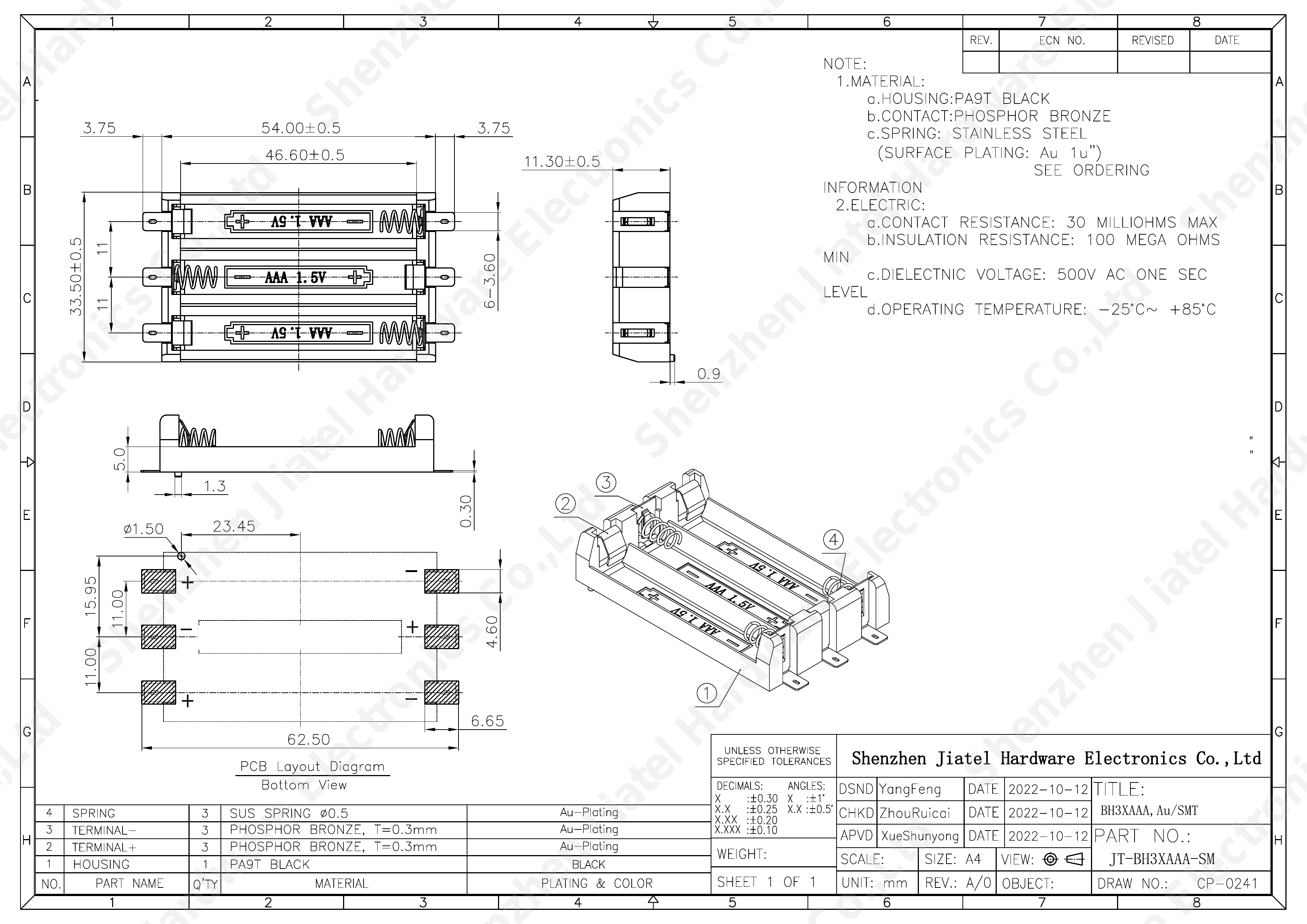

A: We provide detailed ECAD files, including the precise SMT Pad Layout and dimensional drawings, to ensure it is compatible with industry-standard 3x AAA SMT footprints, simplifying your PCB design process.
Q: What material features ensure reliability against high vibration and shock in Asset Tracking?
A: The combination of the UL 94V-0 High Temp Nylon housing and the high-tension, gold-plated contacts with a three-point retention mechanism is specifically designed to resist continuous shock and vibration common in Asset Tracking and vehicle-mounted applications.
Q: Can this holder withstand the temperature profile for Lead-Free soldering?
A: Yes. The High Temp Nylon is rated to withstand the elevated peak temperatures required by the Lead-Free Solder reflow process, maintaining its structural integrity without deformation.
Call to Action (CTA) Block
Need a different voltage or cell size? Jiatel also supplies high-reliability 2x AAA SMD Battery Holders for 3.0V output, ensuring you find the precise compact power solution for your design.
