What Is a Nail Head Pin Used for in PCBs?

A nail head pin serves as a robust connector component in printed circuit boards, prized for its distinct head shape and secure fit. These pins are commonly used to create reliable electrical connections between a PCB and other electronic components, such as sockets, connectors, or wires. Their broad head provides a stable anchoring point, which helps prevent movement under stress or vibration—a valuable quality in demanding environments.

You’ll often spot nail head pins in a variety of applications, including:

• Interconnects between two PCBs
• Interface points for test probes during quality control
• Connections for removable components like jumpers or wires

Because of their durability and ease of assembly, nail head pins are a go-to choice for engineers looking for dependable, repeatable connections within all sorts of electronic assemblies.

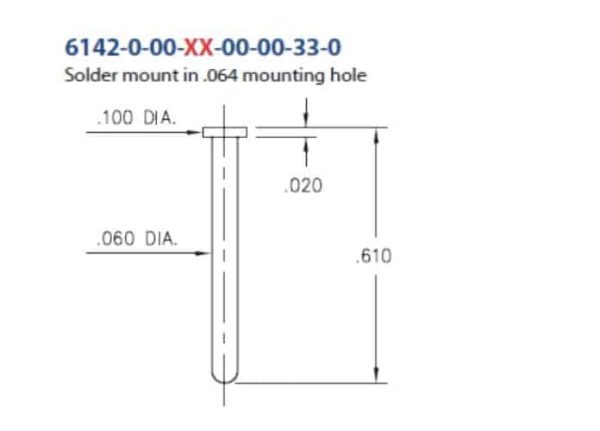

Circuit Board Hardware – Alternatives of Millmax PCB 6142 Nail Head Pin

Jiatel Pin Receptacles, also referred to as PCB sockets, micro-plugs, or connector jacks, are board-level connectors known for their reliability and versatility.

• Two-piece construction: precision-machined outer shell and stamped internal finger contact
• Flexibility, quality, and reliability for critical applications
• Excellent performance under shock and vibration
• High mechanical life without degradation from insertion/withdrawal forces

Compatible Receptacles for Nail Head Pins

These nail head pins are designed to mate seamlessly with a wide array of pin receptacles and connector jacks. You can pair them with standard PCB sockets, micro-plugs, and other board-level receptacle contacts from trusted brands like JIATEL, TE Connectivity, and Samtec. Their robust design ensures a reliable electrical connection, making them suitable for applications requiring frequent mating cycles or high vibration environments. This flexibility makes them a solid choice whether you’re designing prototypes or crafting production-level PCBs.

Common Uses for Nail Head Pins in PCBs

Nail head pins are a staple in printed circuit board (PCB) design, prized for their durable mechanical and electrical connections. Beyond the classic through-hole applications, they excel in a variety of scenarios where robust performance matters.

Popular Applications Include:

• Board-to-board connections: Nail head pins simplify stacking or linking multiple PCBs, especially in modular electronic assemblies often seen in industrial controls.
• Wire-to-board solutions: Their sturdy construction makes them excellent for securing wire leads to a board—ideal for telecom equipment or automotive harnesses where strong physical anchoring is needed.
• Test points: Frequently used as test points on populated boards, nail head pins provide a hassle-free spot for probes during quality control and diagnostics.
• Interface with sockets or connectors: They pair well with pin receptacles for quick, reliable pluggability in devices that might require regular maintenance or upgrade—think medical devices or lab instrumentation.

Their versatility under both mechanical stress and repetitive insertions has made them indispensable in fields ranging from aerospace to consumer electronics. Whether you’re working on prototypes or final products, nail head pins offer the rugged dependability designers can count on.

Versatile Choices for PCB Pin Applications

When evaluating alternatives to the 6142 Nail Head Pin or considering various options for PCB pin connections, it’s helpful to be aware of several other widely used pin types and sizes. For example, circular PC pins with diameters such as 0.075″ and 0.030″ are common, offering different mechanical and electrical characteristics to suit various board layouts and current requirements. Nail head pins designed for solder mounting and standard pins with or without gold plating provide further flexibility in both prototyping and production settings.

Additionally, products from trusted manufacturers like Keystone Electronics feature nickel-plated pins with larger diameters (such as 0.125″) for those seeking robust connections in high-current or physically demanding environments. The range of available PCB pin types ensures engineers can select the ideal combination of mechanical strength, electrical performance, and longevity tailored to their application.

Whether you’re designing for high-reliability industrial controls, communications hardware, or precision instrumentation, these pin receptacles and their alternatives offer a spectrum of solutions to meet demanding requirements.

Discover More New Alternatives

Looking for products similar to the 4068 nail head pin? Here are some fresh additions to our lineup that could fit your next board-to-board or edge connection project:

• Edge-mount pins designed for streamlined interconnect solutions
• Low-profile receptacle pins for tight PCB arrangements
• Double-ended press-fit contacts for versatile mounting options
• Right-angle PCB pins for creative board layouts

Explore these new options and see how they can simplify your circuit design while maintaining robust and reliable connections. If you need customization or technical details, our experienced engineering team is ready to support your selection.

How long does it take to manufacture this part?

Standard production lead time for the 6142 Nail Head Pin is typically around 5 weeks, allowing for precise machining and quality assurance at every stage. Please account for this timeframe when planning your next project.
