Description: Alternative of Mill-Max Receptacle With No Tail Accepts .037″-.043″ (0,940-1,092mm) diameter leads.

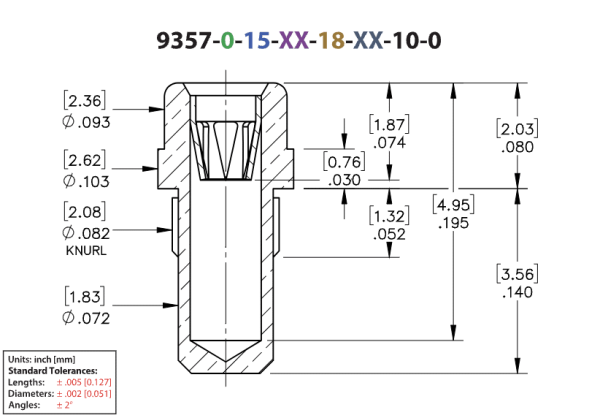

Name: 9357 Receptacle With No Tail
Brand: Jiatel
Price: 0.10 USD
Availability: InStock

Mounting Feature: Press-Fit into a Non-Plated Through Hole (NPTH)
Mounting Hole: 0.078″ (1,981mm)
Tail Type: None

Product Family: Pin Receptacle

Pin Diameter Range: 0.037″-0.043″ (0,940- 1,092mm) Packaging: Packaged in Bulk

RoHS: No

Product Lifecycle : Active

Material : Brass Alloy

Shell Plating : 200 – 300 μ” Tin/Lead over Nickel

Contact Plating : 30 μ” Gold over Nickel

Mechanical life (Durability) : 1,000 Cycles Minimum Operating Temperature Range : -55/+125° C

Current Rating : 5A @ 10°C Temperature Rise

Contact Resistance : 10 mΩ Max

Shock : No Elect. Discontinuity > 1μs @ 50g

Vibration : No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G

Part No.	Shell Plating	Contact Plating	ROHS
9357-0-15-01-18-27-10-0	01: – 200 – 300 μ” Tin/Lead over Nickel	27: 30 μ” Gold over Nickel	No
9357-0-15-15-18-27-10-0	15: – 10 μ” Gold over Nickel	27: 30 μ” Gold over Nickel	Yes
9357-0-15-80-18-27-10-0	80: – 200 – 300 μ” Tin (matte finish) over Nickel	27: 30 μ” Gold over Nickel	Yes

9357 Receptacle With No Tail
