BS-2AG13 (LR44) Battery Holder – High-Quality Contact Pad for LR44/AG13 Button Cells
This AC-13 (LR44) battery holder is meticulously designed for LR44 (AG13) button-cell batteries, ensuring a secure and reliable electrical connection. Ideal for diverse electronic applications, it features precision-crafted dimensions to fit LR44 batteries perfectly, preventing displacement and ensuring stable performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Compatible Battery | LR44, AG13 (interchangeable button-cell batteries) |
| Material | Flame-retardant plastic housing; gold-plated copper contacts |
| Contact Resistance | ≤50mΩ (low-resistance design for efficient power transfer) |
| Operating Temperature | -20°C to +60°C |
| Retention Force | 1.5N–2.5N (secure hold without damaging the battery) |
Key Features

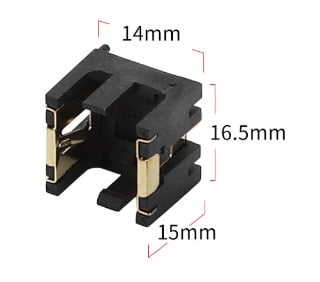

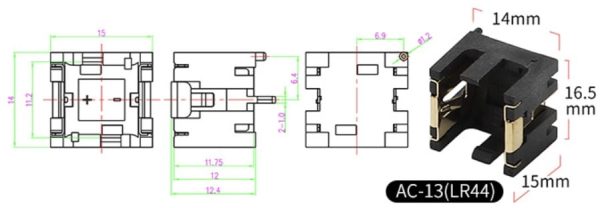

- Precision Fit: Engineered with exact dimensions (11.6mm diameter, 5.4mm height) for snug LR44/AG13 battery placement.
- Superior Conductivity: Gold-plated contacts reduce oxidation and ensure consistent electrical flow.
- Vibration Resistance: Ribbed interior design minimizes battery movement in dynamic environments.
- Easy Installation: Through-hole mounting (2.54mm pin spacing) for quick soldering onto PCBs.
Why Choose Our BS-2AAG13 (LR44) Battery Holder?
- Reliable Performance: Tested for 1,000+ insertion/extraction cycles without contact wear.
- Universal Compatibility: Fits both LR44 (ANSI) and AG13 (IEC) standards, ideal for global applications.
- Cost-Effective Solution: Bulk pricing available for orders ≥1000pcs, with free samples for qualified buyers.
- Quality Assurance: 100% conductivity tested and RoHS-compliant materials for safe, long-term use.
Applications
- Consumer Electronics: Digital watches, calculators, remote controls, and laser pointers.
- Medical Devices: Glucometers, hearing aids, and portable patient monitors.
- Industrial Equipment: Small-scale sensors, IoT devices, and control modules.
- Hobbies & DIY: Model trains, RC toys, and electronic craft projects.
