MIll-Max0508-0-00-15-00-00-03-0
Compatible with Mill-Max 0508 Surface Mount Pin - Image 2

Compatible with Mill-Max 0508 Surface Mount Pin

Download Technical Datasheet

Description: 0508 Surface Mount Pin

Tail Type: Soldertail
Tail Diameter: 0.020″ (0,508mm)
Alternate Mounting: Through-Hole Soldertail Mount
Alternate Mounting Hole: 0.024″ (0,610mm)
Product Family: Printed Circuit Board (PCB) Pin
Packaging: Packaged in Bulk
RoHS : Yes
Product Lifecycle : Active





Materials

Shell Material : Brass Alloy
Shell Plating : 10 μ” Gold over Nickel

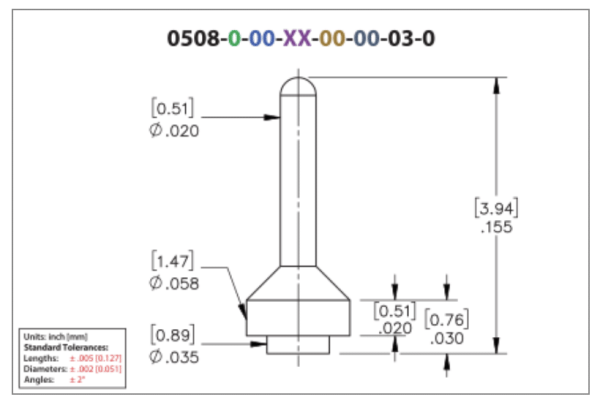

Mill-max-0508



Technical Specs

Operating Temperature Range : – 55/+125° C
Current Rating :Application Specific

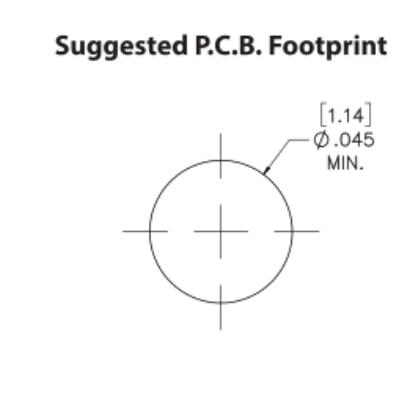

0508-suggested
