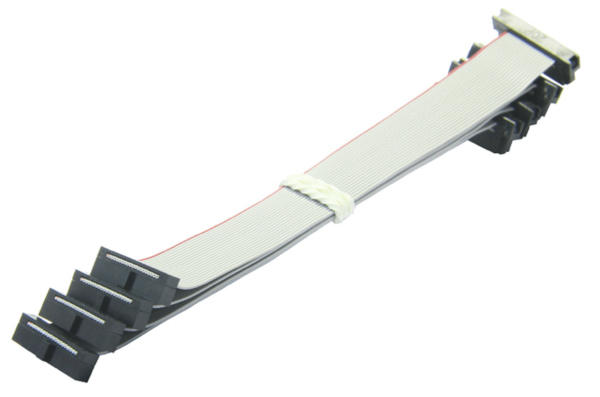

Our IDC 1.27mm Pitch Ribbon Cable meets the demanding requirements for high-density and stable connections in modern electronic devices. As a result, with a precise 1.27mm pitch, this cable offers a compact and reliable wiring solution, working perfectly for space-constrained applications. Whether for data transfer, power supply, or signal control, it consistently provides outstanding performance while occupying minimal space. Furthermore, we strictly adhere to RoHS standards. This process ensures every product is lead-free and environmentally friendly, which ultimately gives you a safe and high-quality connectivity solution.
Key Features
- Ultra-Compact Design: The 1.27mm pitch is ideal for devices with limited internal space, such as medical instruments, drones, and miniature robotics.
- Stable and Reliable: Made with high-quality UL2651 28AWG ribbon cable, ensuring stable signal transmission and excellent resistance to interference.
- Flexible Customization: Available in a wide range of pin counts from 6PIN to 64PIN, with options for different connector types, lengths, and wiring configurations to perfectly match your project specifications.

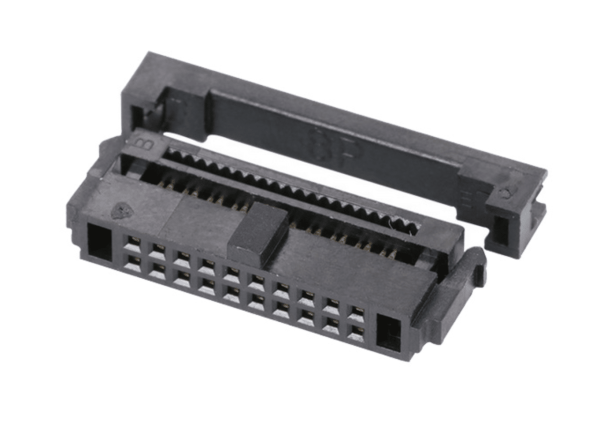

- Easy to Use: The IDC (Insulation Displacement Connector) technology allows for a quick and simple crimping process, significantly boosting production efficiency.
| Product Number | JT-CA-0409 | alternatives | |
| Number of Positions | 6~80P | Wire Gauge | 30AWG (1.27mm Pitch) |
| Connection | IDC (Insulation Displacement Connector) | Type | Board to Cable |
| Rated temperature: | -40~+105℃ | Operating frequency | :Low frequency |
| Rated Current | 1.0 A AC/DC | Voltage | 250V AC/minute |
| Insulation Resistance | ≥1000MΩ | Contact Resistance | ≤15 mΩ |
| Plastic material | PBT UL 94V-0 | Material of Terminal | Phosphor Bronze (Gold -Plated) |
| Color | Black or Custom | Certificate/Standard | UL, TS16949 |
Application Areas
This cable is widely used in fields that demand high-density and stable connections:
- Consumer Electronics: Laptops, tablets, digital cameras, etc.
- Industrial Control: Automation equipment, testing instruments, industrial computers, etc.
- Communication Equipment: Switches, servers, routers, etc.
- Medical Devices: Ultrasound machines, monitors, small diagnostic instruments, etc.
|
|
|
The characteristics of the cable assembly:
- The ribbon cable can be accurately positioned before and during the insulation puncture process

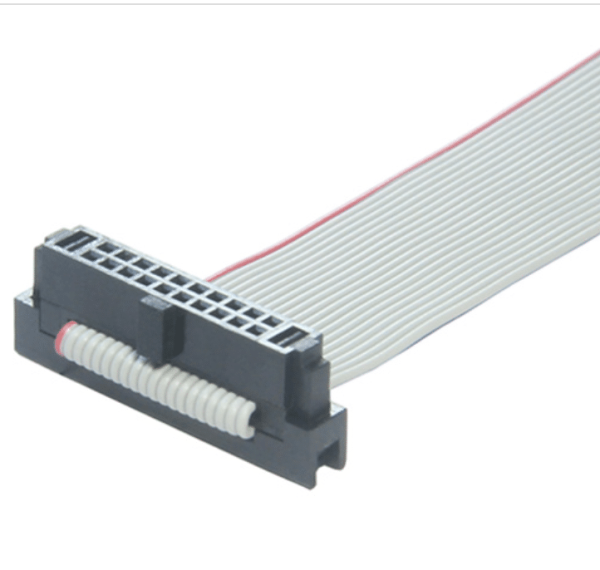

- The connector can clamp the bent ribbon cable, which greatly strengthens the firmness of the cable and the connector
- Dual row, multi-finger contact system for reliability in tough conditions and high-reliability applications
Custom Made：
- OEM/ODM are highly appreciated
- The number of the positions, color, structure, wires or cables all can be customized
- We can quickly develop new products based on your samples or drawings
- We can provide matching connectors, male or female, cable-to-board, board-to-board
- Our products can replace TE, Molex, JST, FCI, HRS, Lumberg, Samtec, 3M, etc.
- You can choose the original connector or our alternatives connector
- If you do not find the connector or cable assembly you need, please contact us
Our products are 100% strictly tested and are suitable for use as a part of industrial products, B2B, wholesale
For any customization needs, feel free to contact us. We are dedicated to providing you with professional solutions.
