Overview

Description: Long Solder Tail DIP Socket
Frame Type: Open Frame 0.100″ (2,540mm) Pitch
Mounting Type: Through Hole Solder Mount
Packaging Options: Packaged in Tubes
Product Family: IC Socket

General Info

Description: Long Solder Tail DIP Socket
Type: DIP
Category: Dual In Line Socket
Mounting Style: Through Hole Solder Mount
Tail Type: Solder Tail
Pins: 6
Packaging: Packaged in Tubes
Qty Tube: 67
Frame Type: Open Frame
ECCN: EAR99
HTSUS: 8536.90.4040
Product Lifecycle: Active

Environmental Specs

Temperature Range: -55/+125°C
Shock: No Elect. Discontinuity > 1?s @ 50g
Vibration:No Elect. Discontinuity > 1?s @ 10-2000HZ, 15G
RoHS: Yes
Moisture Sensitivity Level (MSL): 1 (Unlimited)
:

Mechanical Specs

Mechanical life (Durability): 1,000 Cycles Minimum
Mounting Hole:.024″ (0,610mm)

Materials

Loose Pin/Receptacle (Material): 0134 (Brass Alloy)
Shell Plating:200?” Tin (matte finish) over 100?” Nickel
Inner Contact: 30
Contact Fingers: 4
Inner Contact Material: Beryllium Copper
Inner Contact Plating: 30?” Gold over 50?” Nickel
Insulator Material: High Temp Thermoplastic

Technical Specs

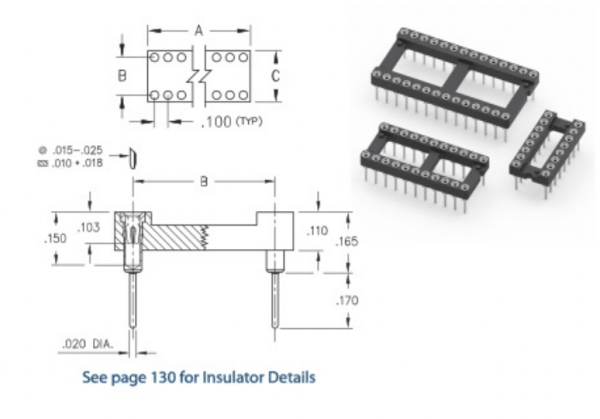

Pitch:.100″ (2,540mm)
A Dim:.300″ (7,620mm)
B Dim:.300″ (7,620mm)
C Dim:.400″ (10,160mm)

Electrical Specs

Current Rating: 3 Amps
Contact Resistance: 10 m? max.
Rated Voltage: 100 VRMS/150 VDC
Insulation Resistance: 10,000 M? min.
Dielectric Withstanding Voltage: 1,000 VRMS min.
