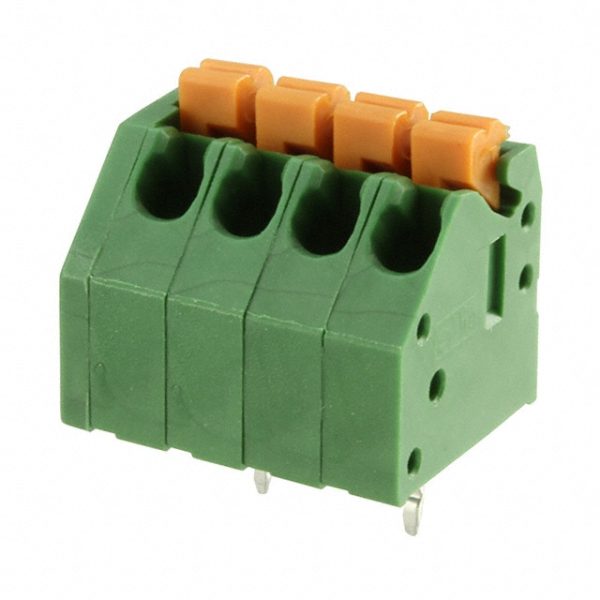

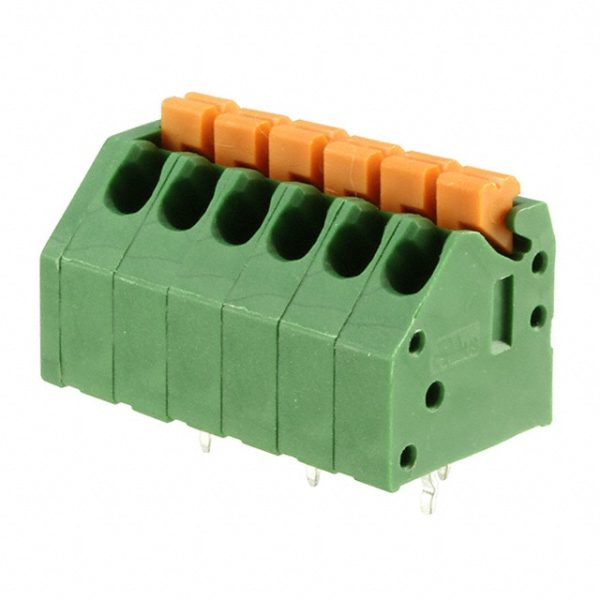

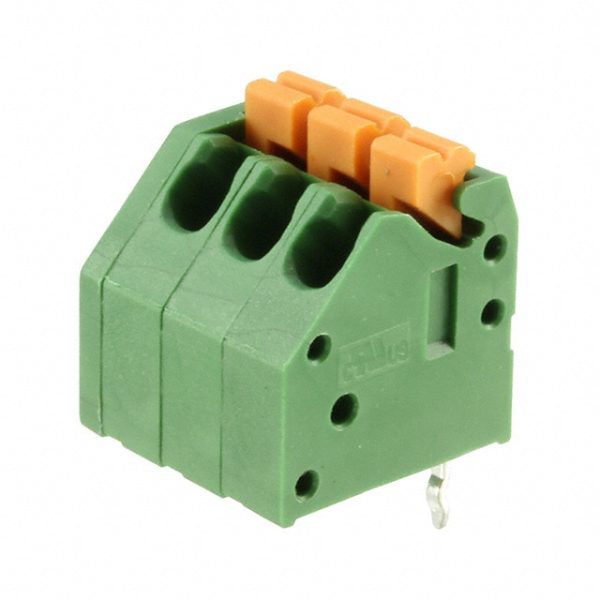

MSC Terminal Blocks
JIATEL Modular Screwless (MSC) Terminal Blocks are poke-in connectors with 2-6 positions and a pitch range of 2.5mm to 5.0mm. JIATEL’s MSC series offers efficient and flexible terminal blocks with easily replaceable wires that do not require special tooling. The wide range of product pitches enables design flexibility and the different color configurations make identification easy. The high density and compact design of the MSC series enable use in the field of telecommunication systems, lighting systems, security, and wire arrangement of architectures.
Description
TERM BLK 2P TOP ENTRY 3.5MM PCB
Detailed Description
2 Position Wire to Board Terminal Block Vertical with Board 0.138″ (3.50mm) Through Hole, Kinked Pin
|
|
|
|
|
Packaging
|
Bulk
|
|
Part Status
|
Active
|
|
Number of Levels
|
1
|
|
Positions Per Level
|
2
|
|
Pitch
|
0.138″ (3.50mm)
|
|
Mating Orientation
|
Vertical with Board
|
|
Current
|
6 A
|
|
Voltage
|
300 V
|
|
Wire Gauge
|
14-20 AWG
|
|
Mounting Type
|
Through Hole, Kinked Pin
|
|
Wire Termination
|
Screwless – Leg Spring, Push-In Spring
|
|
Color
|
Green
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Housing Material
|
Polyamide (PA66), Nylon 6/6
|
|
Contact Material – Plating
|
Copper Alloy – Tin Plated
|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
