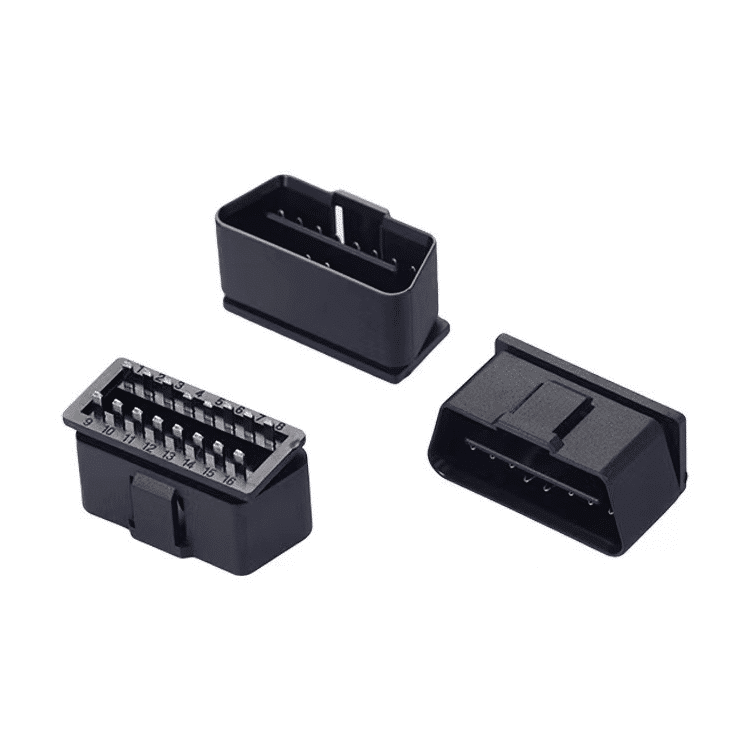

Build or repair your own OBD-II cables and devices with our high-quality J1962 male connector kit. Featuring a standard 16-pin layout and straight (180-degree) pins, this connector is perfect for a wide range of automotive applications. The durable, easy-to-assemble snap-fit housing ensures a secure and professional finish.
Key Features:
- Standard J1962M Connector: Universally compatible with all OBD-II compliant vehicles (1996 & newer in the US).

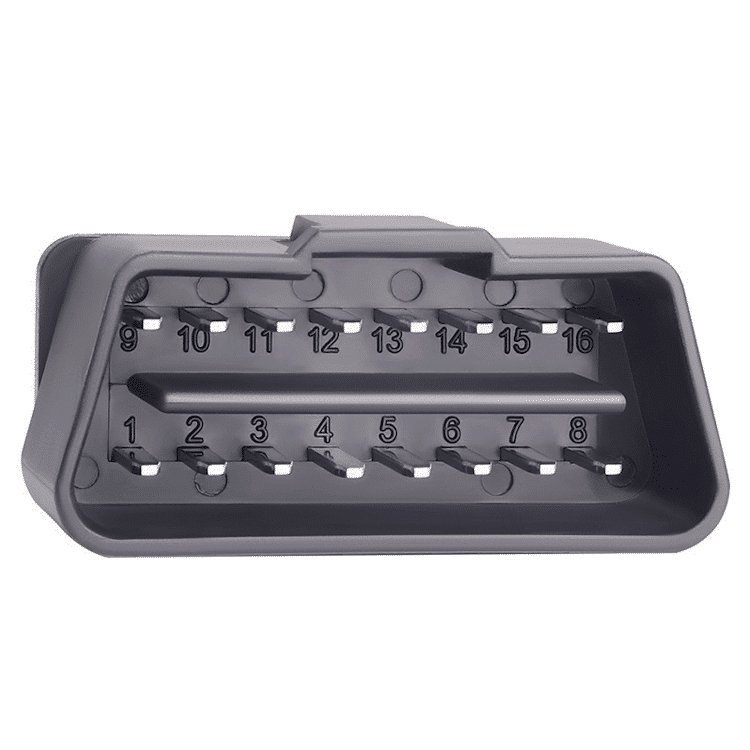

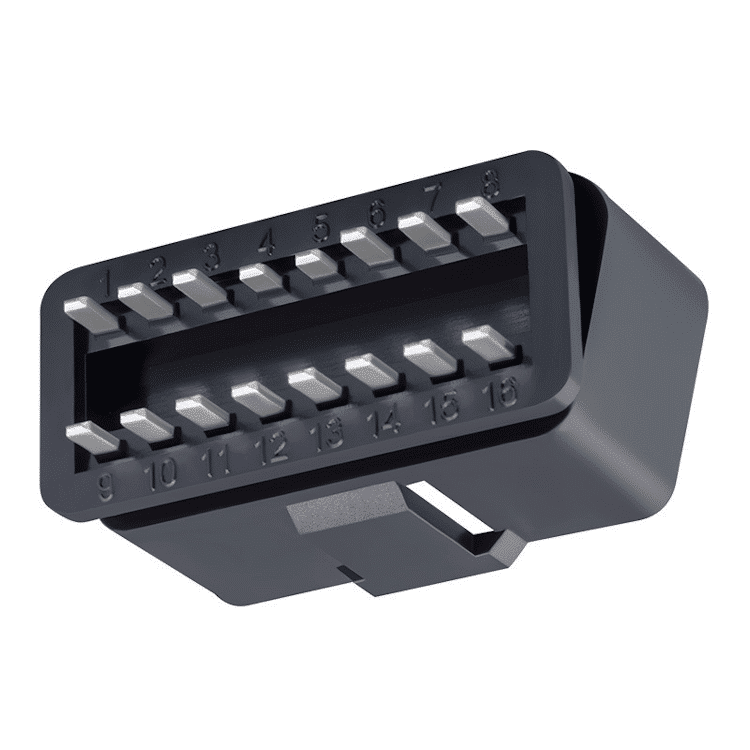

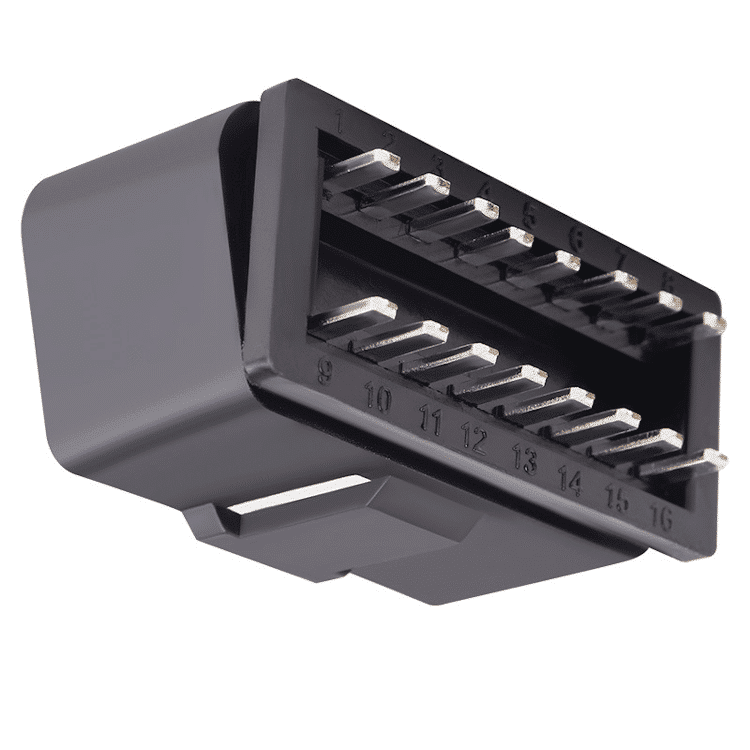

- 16-Pin Straight Layout: All 16 pins are populated and arranged in a 180-degree straight-through configuration.

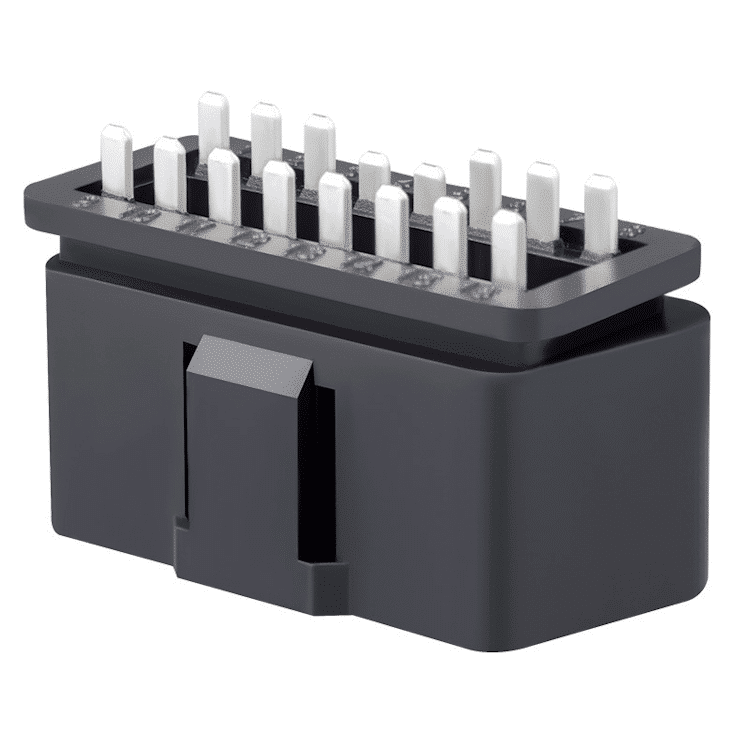

- Solder-Type Terminals: Provides reliable and strong electrical connections for your custom wiring.
- Durable ABS Housing: Comes with a robust top-and-bottom shell and strain relief for cable protection.
- DIY & Professional Use: Ideal for creating custom diagnostic tools, GPS tracker harnesses, ECU flash cables, or repairing existing OBD-II equipment.
Build, Repair, or Prototype with Our Professional Grade OBD-II Connector
Unlock the full potential of your vehicle’s On-Board Diagnostics (OBD-II) port. Whether you’re a professional mechanic, a fleet manager, a hardware developer, or a DIY car enthusiast, our J1962 16-pin male connector is the essential component for your projects. It provides a reliable and secure interface to your vehicle’s computer, allowing you to build everything from custom diagnostic scanners to advanced telematics systems.
High-Quality Construction for Lasting Performance
Engineered for durability and ease of use, this connector kit is designed to withstand the rigors of any garage or workshop environment.
- High-Conductivity Pins: The solder-type pins are made from premium materials to ensure minimal signal loss and stable data transmission, critical for accurate diagnostics and ECU programming.
- Robust Snap-Fit Enclosure: The tough ABS plastic housing protects the internal wiring from dust, moisture, and physical strain. The simple snap-fit design allows for quick and easy assembly without special tools.
- Integrated Strain Relief: The included cable grommet and strain relief prevent wires from being pulled or damaged at the connection point, extending the life of your custom cable.
Technical Specifications
Unlimited Applications
This versatile connector is the starting point for countless automotive electronic projects. It’s the same standard connector found in every modern car, making it perfect for:
- DIY Diagnostic Tools: Build your own code reader or data logger using platforms like Arduino or Raspberry Pi.
- Telematics & Fleet Management: Create custom wiring harnesses for GPS trackers, ELD (Electronic Logging Devices), and fleet monitoring systems.
- ECU Tuning & Flashing: Assemble reliable cables for performance tuning and ECU remapping.
- Cable Repair & Extension: Replace a broken or damaged connector on your existing diagnostic scanner or create a custom-length OBD-II extension cable.
- Prototyping & R&D: An essential component for any new automotive hardware development.
- Heads-Up Displays (HUDs): Power and feed data to aftermarket HUD units.
What’s Included in the Box?
- 1x J1962 16-Pin Male Connector Insert
- 1x Top & Bottom Connector Housing Shell
- 1x Strain Relief Grommet
- (Optional: Add if you include them) 2x Assembly Screws
