How to Design a Reliable Waterproof Magnetic Charging Interface for Wearables

1. Introduction: The Shift Towards Portless Wearables

As the wearable tech market—spanning TWS earbuds, smartwatches, and medical-grade biosensors—expands, the demand for robust, portless architectures has converged on a single paradigm: magnetic contact charging. A well-designed waterproof magnetic charging interface eliminates the mechanical vulnerabilities of traditional USB-C ports, providing superior ingress protection (IP67/IP68) and a seamless user experience.

However, designing an IP68 waterproof connector that performs reliably across 3,000+ charge cycles, survives daily sweat exposure, and maintains low contact resistance demands cross-disciplinary engineering. This guide breaks down the critical mechanical, metallurgical, and electrical decisions required to design a reliable magnetic pogo pin connector system.

2. Key Failure Modes in Wearable Charging Interfaces

Before selecting components, R&D and NPI engineers must account for the primary root causes of field failures:

  • Sweat Corrosion (Electrolysis): Human sweat contains sodium chloride, lactic acid, and urea, with a pH ranging from 4.5 to 7.5. Combined with a charging voltage, it triggers rapid galvanic corrosion on inadequately plated pads.
  • Dynamic Water Intrusion: Real-world wearables face dynamic scenarios (pressurized showers, thermal cycling) that cause pressure differentials, drawing water into the PCBA via micro-gaps.
  • Poor Contact Force: Spring fatigue reduces preload force (typically needing 80–150 gf for charging), leading to intermittent charging.
  • Magnetic Misalignment: Asymmetric contact force accelerates mechanical wear on the pogo pin barrels.

3. Material & Plating Design for Anti-Corrosion

The most critical factor in a wearable magnetic charging interface is the plating stack-up. Standard commercial plating will fail rapidly under direct skin contact.

Internal structure of gold-plated pogo pin for wearable charging interface

Cross-section of a high-reliability pogo pin highlighting the gold plating layer.

3.1 Base Material Selection

  • Brass (C3604): Cost-effective, excellent machinability, used for standard barrels.
  • Phosphor Bronze: Superior fatigue resistance, mandatory for internal springs to maintain lifecycle contact pressure.
  • Tellurium Copper: Excellent electrical conductivity, ideal for high-current plungers.

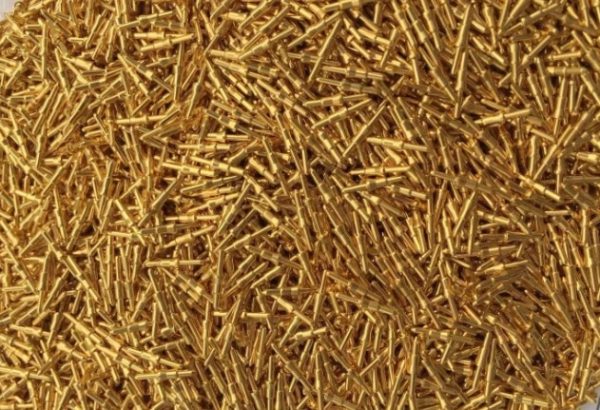

3.2 Gold Plating Thickness vs. Sweat Resistance

Gold plating is the defining variable for anti-corrosion. It must be applied over a Nickel underlayer (1.0–2.5 μm) which acts as a diffusion barrier. Specifying gold thickness without the nickel barrier is a common source of field failures.

Gold Thickness Salt Spray (ASTM B117) Sweat Cycles (Est.) Recommended Application
0.1 μm ~48h ~500 Absolute minimum for consumer wearables
0.3 μm ~96h ~1,500 Standard TWS & smartwatch specification
0.5 μm+ ~120h+ ~3,000+ Premium wearables & Medical devices

4. Waterproof Structure Solutions: Over-Molding vs. O-Ring

Achieving a true IP67 or IP68 rating requires isolating the internal spring mechanism from the external environment.

IP68 waterproof pogo pin structure comparison: O-ring vs Over-molding

Over-molding provides a monolithic seal compared to traditional O-ring assemblies.
Sealing Method Ingress Rating Assembly Yield Cost Best Application
O-Ring Assembly IP65 / IP67 Moderate Low Tooling Low-volume, cost-constrained trackers
Insert Molding (Over-Molding) IP68+ High (Near 100%) Higher Tooling Premium TWS, Medical wearables, High-volume

Engineering Recommendation: For devices targeting IP68 and high-volume production (>100K units/year), over-molding injects thermoplastic elastomer (TPE) directly around the pin, eliminating micro-gaps. It consistently delivers superior sealing reliability over O-rings.

5. Magnetic Connection & Electrical Design Principles

5.1 Mechanical & Magnetic Synergy

  • Magnetic Force Matching: The holding force of the N52 magnets must be 1.5x to 2.0x the combined preload of all pogo pin springs to prevent disconnection during user movement.
  • Optimal Working Stroke: Set the nominal mating position at 40% to 60% of total stroke. This ensures adequate spring force while accommodating manufacturing tolerances (±0.2–0.4 mm).

5.2 Electrical Performance & Continuous Current Rating

Modern wearables often use the charging interface for data transfer (firmware OTA, diagnostics) and fast charging. Pogo pin current rating depends on pin diameter and thermal management:

Pin Diameter Continuous Current Application Scenarios
0.9 mm 1.0 A TWS earbuds, small hearables
1.3 mm 2.0 A Smartwatches, fitness bands
2.0 mm 4.0–5.0 A Fast-charge wearables, medical devices
  • Contact Resistance: Target < 30 mΩ (initial) per pin, with a maximum allowable drift to < 50 mΩ after 3,000 cycles and salt spray testing.
  • High-Speed Data: For USB 2.0 protocols, ensure differential impedance matching (90 Ω) and crosstalk isolation (> 40 dB at 480 MHz) between power and data pins.

⚠️ Struggling with Corrosion, Signal Loss, or Pogo Pin Failure?

Don’t let sweat corrosion or poor contact ruin your wearable device’s reputation. Shenzhen Jiate Electronics Co., Ltd. provides advanced over-molded IP68 pogo pins and custom magnetic assemblies. Get free DFM reviews from our senior engineers today.

👉 Submit Your Requirements for a Free Sample & DFM Review

6. Jiatel’s Practical OEM/ODM Solutions

At Shenzhen Jiate Electronics Co., Ltd., we go beyond manufacturing individual pins. With over 12 years of specialized experience, we provide complete, turnkey custom magnetic charging wire harness solutions for TWS earbuds, smartwatches, and medical devices.

Our engineering capabilities set a higher standard than conventional commercial suppliers: Our custom gold plating process passes the strict 120-hour ASTM B117 salt spray test, and we support highly precise IP68 over-molding for pin diameters as small as 0.3 mm.

Instead of dealing with multiple vendors for magnets, plastics, cables, and pogo pins, our clients receive a fully assembled, 100% tested magnetic charging cable. We handle the complex tolerance stack-ups between the magnetic field strength, the pogo pin spring force, and the IP68 over-molding process, significantly accelerating your NPI phase.

7. Conclusion & Next Steps

Designing a waterproof magnetic charging interface requires balancing spring force, magnetic attraction, and metallurgical anti-corrosion properties. Whether you are sourcing a custom magnetic charging connector for a smartwatch or a highly durable IP68 pogo pin for medical wearables, choosing the right sealing method and plating thickness is critical to field reliability.

Ready to integrate reliable magnetic charging into your device?
We support engineers with rapid prototyping, 2D/3D STEP files, and PCB layout guidelines.

Request CAD Files and a Custom Quote Here »
