2.5mm Pitch 10Pin Spring Loaded Connector used in Wire free, Rechargeable Device

Jiatel P/N



Vertical SMT

Plugger & Barrel Material

Brass C3604



Plunger and Barrel

Gold plate Au3μ", 5μ",10μ",

Rated Current

3 Amp

Spring Force



10,000 cycles



Environmental Information

RoHS Certificate

Details about 2.5mm Pitch 10Pin Spring Loaded Connector used in Wire free, Rechargeable Device

Connector Pitch: 2.5mm

No of Pins: 10

Mounting: Vertical Surface Mount

Gender: Male

Pin Length: 4.5mm. Or any length between 3.5~10mm, accept customized


Find a similar 10pin but in through-hole mount.

Find the Jiatel other PCB Connectors from here.


More about JIATEL POGO PIN/Spring Loaded Connectors:

  • JIATEL has 13 years of experience in manufacturing POGO PIN  CONNECTOR.
  • Our POGO PIN CONNECTOR can reach 10,000life cycles and realize high current (2A to 30A).
  • Our R&D team provides customers with HIGH QUALITY, COMPETITIVE PRODUCTS and SERVICES. Besides, the whole inspection process are almost handled and operated by an automatic inspection testing machine and an imported life test machine.
  • Our strict procedures and effective testing instruments are in line with the European and RoHS environmental standards, and JIT production management strategy.

Why choose JIATEL to make Pogo Connectors?

  • Full serious insulator molds existing build already.  From pitch 2.0mm to 4.0mm, 1pin to 12Pin. We have the existing part for your choice.
  • Even Custom make Connector, detailed evaluation from engineer to check if the solution workable or not. Official 2D drawing send to the customer for approval before start mold.
  • Low building mold charge to under US$2,000 !!!
  • Fast working for mold building and initial samples. Generally only need 30 days!
  • Initial samples inspection by engineer, such as for insulator melting to ensure good in the re-flow process, spring force test, general dimension inspection to ensure part are within the drawing and ensure future production goes smooth.
  • Free shipping for new samples, send by DHL/Fedex / UPS/TNT
  • Free charge for T&R package when for mass production stage.

Jiatel Pogo Connector Application:

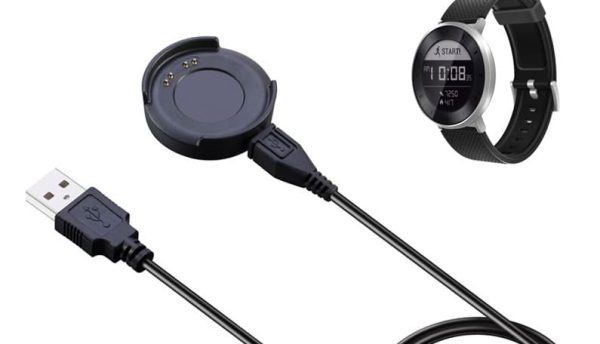

Wearing Devices   Smart Watch Magnet Cable Keyboard


Small Connector, Big Connection.

Jiatel help you in your Printed Circuit Board Connectors & Cable Assemblies.
