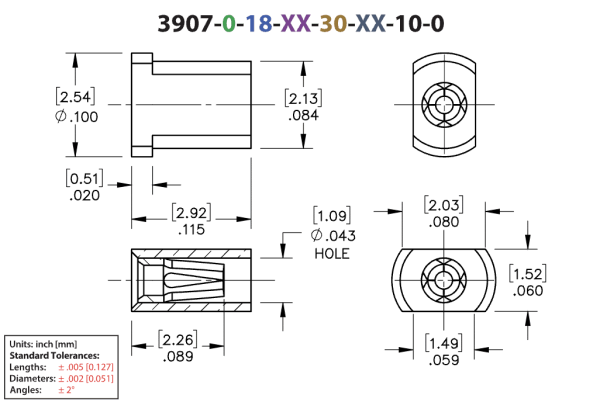

Description: Alternative of Mill-Max Horizontal Surface Mount Receptacle Accepts .015″-.025″ (0,381-0,635mm) diameter leads.
|
Mounting Feature:Surface Mount
MaterialsShell Material : Brass Alloy |
|
| Part No | Shell Plating | Contact Plating | RoHS |
| 3907-0-58-80-30-84-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 84: 100 – 200 μ” Tin (matte finish) over Nickel | Yes |
| 3907-0-18-01-30-02-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 02: 100 – 200 μ” Tin/Lead over Nickel | No |
| 3907-0-18-01-30-27-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 27: 30 μ” Gold over Nickel | No |
| 3907-0-18-15-30-14-10-0 | 15: – 10 μ” Gold over Nickel | 14: 10 μ” Gold over Nickel | Yes |
| 3907-0-18-15-30-27-10-0 | 15: – 10 μ” Gold over Nickel | 27: 30 μ” Gold over Nickel | Yes |
| 3907-0-18-80-30-14-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 14: 10 μ” Gold over Nickel | Yes |
| 3907-0-18-80-30-27-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 27: 30 μ” Gold over Nickel | Yes |
| 3907-0-18-80-30-84-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 84: 100 – 200 μ” Tin (matte finish) over Nickel | Yes |
| 3907-0-58-01-30-02-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 02: 100 – 200 μ” Tin/Lead over Nickel | No |
| 3907-0-58-01-30-27-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 27: 30 μ” Gold over Nickel | No |
