Jiatel Electronics - Custom Pogo Pin and Wire Harness Manufacturer
8637-0-15-01-21-27-10
MIll-Max 8637 Receptacle With No Tail - Image 2
8637-0-15-15-21-27-10

MIll-Max 8637 Receptacle With No Tail

Market Alert: Facing rising raw material costs? Our engineers can help you optimize your plating thickness (from 1u" to high-end 10u") to meet both performance and budget.

Read Guide: A Comprehensive Analysis of Gold Plating →
Current Rating

3A
Durability

1,000 Cycles
Download Technical Datasheet

Alternative of Mill-Max 8637 Receptacle With No Tail Accepts .015″-.022″ (0,381-0,559mm) diameter leads.

Mounting Feature: Press-Fit into a Non-Plated Through Hole (NPTH)
Mounting Hole: 0.039″ (0,991mm)
Tail Type: None
Product Family: Pin Receptacle
RoHS : Yes
Product Lifecycle : Active



Materials

Shell Material : Brass Alloy
Shell Plating : 10 μ” Gold over Nickel
Contact Plating : 30 μ” Gold over Nickel

mill-max 8376

Technical Specs

Mechanicallife (Durability) : 1,000 Cycles Minimum
Operating Temperature Range : -55/+125° C
Current Rating : 3A @ 10°C Temperature Rise
Contact Resistance : 10 mΩ Max
Shock : No Elect. Discontinuity > 1μs @ 50g
Vibration : No Elect. Discontinuity >1μs @ 10-2000HZ, 20 G


Other products in the series：

8637-0-15-15-21-27-10-0
8637-0-15-01-21-02-10-0
8637-0-15-01-21-27-10-0
8637-0-15-15-21-14-10-0
8637-0-15-15-25-27-10-0
8637-0-15-80-21-14-10-0
8637-0-15-80-21-27-10-0
8637-0-15-80-21-84-10-0

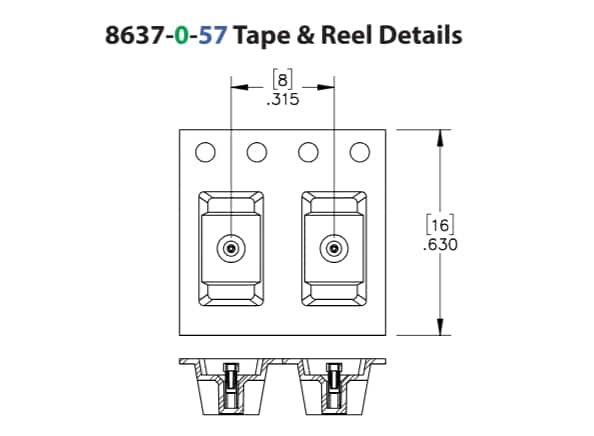

8637-0-57-01-21-02-10-0
8637-0-57-01-21-27-10-0
