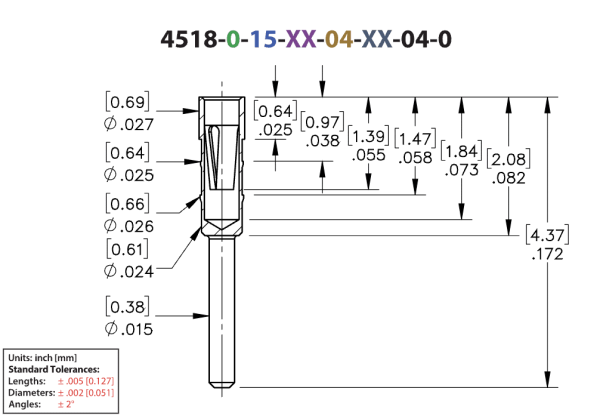

Description: Mill-Max Receptacle With A Standard Tail Accepts .008″-.013″ (0,203-0,330mm) diameter leads.
Mounting Feature: Press-Fit into a Non-Plated Through Hole (NPTH) Mounting Hole: 0.025″ (0,635mm) Tail Type: Soldertail Tail Diameter: 0.015″ (0,381mm) Alternate Mounting: Through-Hole Soldertail MountProduct Family: Pin Receptacle Packaging: Packaged in Bulk RoHS: No Product Lifecycle : Active
Materials
Shell Material : Brass Alloy Shell Plating : 10 μ” Gold over Nickel Contact Plating : 30 μ” Gold over Nickel
Technical Specs
Mechanical life (Durability) : 1,000 Cycles Minimum Operating Temperature Range : -55/+125° C Current Rating : 2A @ 10°C Temperature Rise Contact Resistance : 10 mΩ Max Shock : No Elect. Discontinuity > 1μs @ 50g Vibration : No Elect. Discontinuity >1μs @ 10-2000HZ, 20 G
