The jiatel Press-Fit PCB Pin is a high-quality, direct alternative to the Mill-Max 0257, engineered to provide a robust and solderless connection for your PCBs. As a specialized part for high-reliability applications like power supplies and converters, our pin ensures a secure mechanical and electrical connection. It is the ideal choice for manufacturers seeking to reduce soldering costs and improve assembly efficiency without compromising performance.

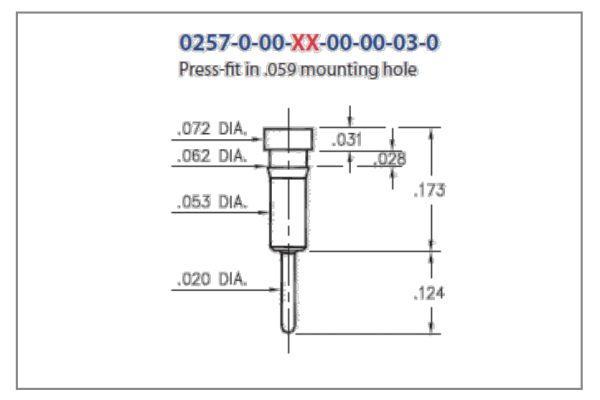

| Description:Press-fit PCB Pin Mounting Feature:Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator Mounting Hole: 0.059″ (1,499mm) Tail Type: Soldertail Tail Diameter: 0.020″ (0,508mm) Alternate Mounting:Through-Hole Soldertail Mount Alternate Mounting Hole: 0.024″ (0,610mm) Product Family:Printed Circuit Board (PCB) Pin General InfoDescription :Press-fit PCB Pin |
MaterialsShell Material : Brass Alloy Technical SpecsOperating Temperature Range : – 55/+125° C |
Key Advantages as a Mill-Max 0257 Alternative
Our pin is designed to be a seamless, drop-in replacement for the Mill-Max 0257, providing comparable electrical and mechanical performance.
- Solderless and Reliable: The press-fit technology creates a gas-tight, permanent connection by cold-welding the pin to the plated through-hole of the PCB. This eliminates the complexities and potential failures associated with the soldering process.
- Dimensional and Functional Match: This pin is a direct functional alternatives to the Mill-Max 0257, allowing for confident integration into your existing designs and PCBs without any modifications.
- High-Quality Stamped and Machined Parts: Our pins feature a precision-machined brass alloy shell with a durable gold-over-nickel plating. This construction ensures excellent conductivity and long-term reliability even in harsh environments.
- Designed for PCB Integrity: Our unique press-fit zone design prevents damage to the internal board layers and maintains continuity throughout all layers of the PCB.
What is press-fit in PCB?
The press-fit technology is a solder-less termination technology used in electrical systems throughout the interconnection industry, which mechanically and electrically joins a press-fit contact to a printed circuit board (pcb).
Why Choose Our Press-Fit PCB Pin?
Choosing jiatel’s alternative means you get the quality and functionality you need, along with significant cost savings. Our expertise in precision metal stamping and machining ensures every part meets stringent quality standards.
- Cost-Effective Solution: Our pin offers the same performance as the original part but at a more competitive price, helping you reduce component costs and improve your product’s competitiveness.
- Consistent Quality: We maintain strict quality control throughout our manufacturing process, guaranteeing that every connector performs to the highest standards.
- Expert Manufacturing: We specialize in producing custom and standard metal components, ensuring precise dimensions and excellent mechanical properties for all our products.
Key Specifications
| Attribute | Specification |
|---|---|
| Product Type | Press-Fit PCB Pin |
| Alternative Model | Mill-Max 0257 |
| Mounting Method | Press-Fit into Plated Through-Hole (PTH) or Non-Plated Through-Hole (NPTH) |
| Material | Brass Alloy |
| Surface Finish | Gold Plated over Nickel |
| Operating Temperature | -55°C to +125°C |
| Current Rating | Application Specific |
| Brand | jiatel |
What is the standard press-fit pin?
The acceptable press fit for most metals (steel, brass, and aluminum) is between . 0005” and . 002”. In production assembly, the acceptable press fit is the sum of the tolerances for the pin and the hole.
What are the advantages of press-fit connectors?
- Cost-Effective & Energy-Efficient On Training And Skills.
- Helps in Decreasing Physical Labour Costs.
- Amplifies Your Job Safety.
- Enhances Job Accuracy.
- Streamline Repairs and Maintenance Efficiently.
Common Applications
This press-fit PCB pin is an ideal component for a wide range of electronic products and systems, including:
- Power Supplies & Converters: For high-current and robust power connections.
- Automotive Electronics: Used in engine control units and other high-reliability systems.
- Industrial Controls: For reliable and vibration-resistant connections in machinery.
- Backplane Connections: Provides a secure connection in board-stacking applications.
Frequently Asked Questions (FAQ)
Q1: What is a press-fit connection? A1: Press-fit is a solderless termination technology where a pin is pressed into a PCB hole, creating an electrical and mechanical connection through elastic and plastic deformation.
Q2: Is this pin compatible with my existing PCB design for the Mill-Max 0257? A2: Yes, our pin is designed to be a direct functional substitute with matching dimensions, ensuring seamless integration into your existing designs.
jiatel: Your Trusted Partner for Electronic Components
jiatel is dedicated to providing reliable, professional-grade electronic components as cost-effective alternatives to industry standards. Our replacement for the Mill-Max 0257 is a prime example of our commitment to quality, durability, and value.
Need a high-quality press-fit PCB pin? Learn more and purchase our product today to build with confidence.
The basic component used for making electrical connections in a wide array of electronic equipment is the pin receptacle. The JIATEL pin receptacle provides a highly reliable, low resistance electrical path to terminate the pins of a device or discrete wires to aPCB or other mating apparatus such as cables, modules or other pins and wires. Assembled into sockets i.e. DIP, SIP,PGA, etc. or used discretely, receptacles make devices and modules pluggable for repair and replacement. The machined shell or housing of pin receptacles is available in various styles depending on the application, e.g. low profile, elevated, press-fit, SMT. The terminal end of pin receptacles has many variations:a round solder tail, a press-fit tail, a surface mount base, crimp barrel, soldercup,swage feature or no tail.
Inside every JIATEL receptacle is a contact clip. A contact clip is a conductive,multi-finger, progressive die stamping. The standard material is beryllium copper and for high temperature applications, beryllium nickel is used. Both materials are heat treated to achieve optimal spring characteristics & durability.The contact clip engages, scores and holds the mated pin making an electrical and gas tight connection at 3, 4 or 6 points of contact, depending on the selected contact. JIATEL receptacles are capable of 1,000 minimum insertion cycles for a broad range of applications. Mating pin size, shape and
finish, along with application specific variables, will affect the life of a contact.
JIATEL currently offers over 39 styles of contacts to engage pins from 0.008” to 0.102” in diameter.
Pin receptacles can be utilized as discrete connectors for the plugging and unplugging of components on PC boards. They can be utilized individually or in random arrays where the usage is small. They can be handled and loaded manually in preparation for soldering or, with a different style shell, for pressfitting. When the requirement is for volume placement of receptacles, socket carriers or tape and reel packaging are tremendous labor-saving solutions for our customers.
In addition to the products found on the following pages, JIATEL offers the following stock materials and diameters available for manufacture:
BRASS Alloys 360/385:.062/.072/.078/.093/.125/.156/.187/.250 diameters
PHOSPHOR BRONZE Alloy 544:.062/.072/.078 diameters
TELLURIUM COPPER Alloy 145:.079/.093/.125/.156 diameters
