90-Degree Right-Angled 16-Pin OBD2 Male Connector with Gold Plating – SAE J1962 Compliant OBD2 Plug
Product Overview
This 90-degree right-angled 16-pin OBD2 male connector is engineered for automotive On-Board Diagnostics (OBD2) systems, providing a reliable, space-efficient connection to vehicle OBD2 ports (compliant with SAE J1962 and ISO 15765 standards). The gold-plated contacts ensure superior electrical conductivity, corrosion resistance, and signal integrity, while the 90-degree bend optimizes installation in tight automotive environments, reducing cable strain and interference. Ideal for diagnostic tools, telematics devices, and aftermarket accessories, this connector delivers consistent performance in harsh under-hood conditions.

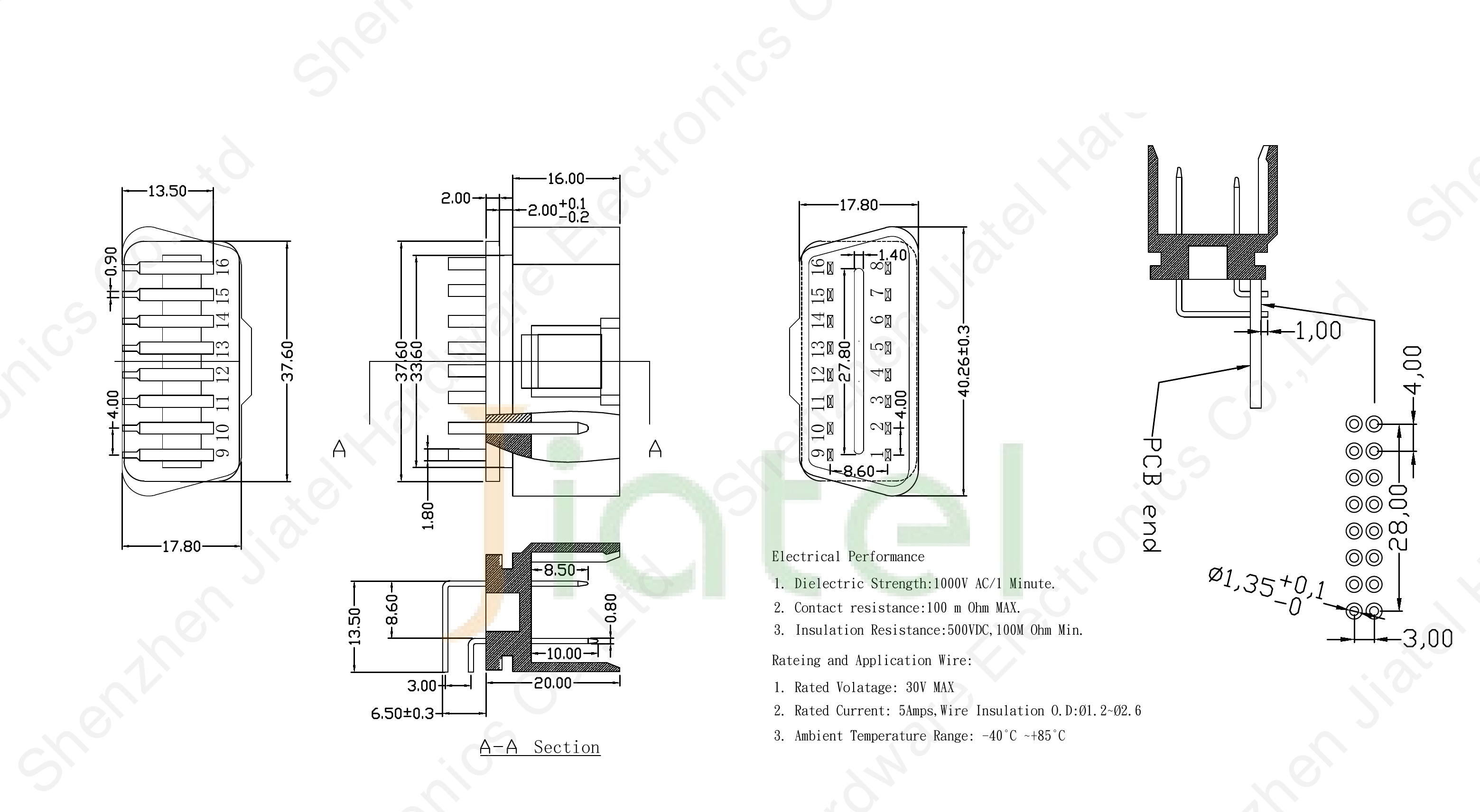

Technical Specifications
| Parameter | Details |
|---|---|
| Connector Type | OBD2 male plug, 90-degree right-angled (bent pins) |
| Pin Configuration | 16-pin, compliant with SAE J1962 standard pinout (ISO 15765-4) |
| Plating | Gold plating (3-5μm thickness) on phosphor bronze contacts |
| Contact Material | Phosphor bronze (high elasticity, low contact resistance) |
| Housing Material | High-temperature PBT (UL94V-0, flame-retardant, -40°C to +125°C) |
| Rated Current | 5A per contact (Pin 16: battery voltage supply) |
| Contact Resistance | ≤20mΩ (stable signal transmission for CAN/LIN bus protocols) |
| Insulation Resistance | ≥1000MΩ at 500V DC |
| Withstand Voltage | 1000V AC/DC for 1 minute |
| Vibration Resistance | Meets USCAR-2 standards (resistant to 3G vibration at 10-2000Hz) |
| RoHS/REACH Compliance | Yes (lead-free, halogen-free materials) |
Key Features
- Space-Optimized 90° Design:
- Right-angled geometry minimizes cable bending stress and fits snugly in confined spaces (e.g., under the dashboard or near the engine bay), improving installation efficiency.
- Gold-Plated Performance:
- 3-5μm gold plating reduces oxidation and signal loss, ensuring long-term reliability in high-humidity, high-temperature environments (common in automotive settings).
- OBD2 Standard Compliance:
- Strict adherence to SAE J1962 (mechanical dimensions) and ISO 15765 (communication protocols) ensures universal compatibility with all OBD2-compliant vehicles (post-1996 in the US, post-2001 in the EU).
- High-Temperature Resistance:
- PBT housing withstands extreme temperatures (-40°C to +125°C), making it suitable for under-hood applications with high thermal stress.
- Secure Locking Mechanism:
- Integrated latch prevents accidental disconnection during vehicle operation, ensuring a vibration-resistant connection.
Applications
- Automotive Diagnostics:
- Connecting scan tools (e.g., Autel MaxiCOM, Bosch Diagnostic) to read fault codes, reset ECUs, or monitor real-time engine data.
- Telematics & Fleet Management:
- Enabling GPS tracking, remote diagnostics, and data logging for commercial fleets, rental cars, or logistics vehicles via OBD2-to-4G/LTE modules.
- Aftermarket Accessories:
- Powering and communicating with performance tuners, head-up displays (HUD), or OBD-to-Wi-Fi adapters in passenger cars and trucks.
- OEM & Industrial Use:
- Used in vehicle manufacturing for quality control testing and in heavy equipment (e.g., construction machinery) with OBD2-compatible diagnostic systems.
Why Choose Our OBD2 Connector?
1. Industry-Leading Quality Assurance
- Rigorous Testing: 100% tested for electrical conductivity (≤20mΩ contact resistance), thermal stability, and vibration resistance (USCAR-2 compliant), ensuring zero-defect performance.
- ISO Certified Manufacturing: Produced in ISO 9001:2015-certified facilities with full traceability, from RoHS-compliant gold-plated phosphor bronze to final assembly.
2. Customization Expertise
- Tailored Solutions: Offer custom pin configurations, cable lengths, and housing options (straight/angled) for OEM integrations or proprietary tools.
- Rapid Prototyping: 3–5 day turnaround for custom samples, supported by in-house CAD design and mold-making.
3. Global Compliance & Reliability
- Universal Compatibility: SAE J1962 and ISO 15765 compliant for plug-and-play use with 99% of OBD2 vehicles worldwide.
- Certifications: RoHS/REACH compliant, with optional UL/CE for global markets.
4. Scalable Production & Competitive Pricing
- Large-Scale Capacity: Monthly output of 500,000+ units, with bulk discounts (10%+ for orders >10,000 units) and 2–3 week lead times.
- Cost-Effective Design: Optimized gold plating and automation reduce waste, delivering affordable pricing without compromising quality.
5. End-to-End Technical Support
- Dedicated Engineers: Free design consultation to solve installation challenges (e.g., EMI shielding, space constraints).
- After-Sales Assurance: 2-year warranty against defects, with 24/7 response to technical inquiries.
