Alternative of Mill-Max 0259 Press-fit PCB Pin
Overview

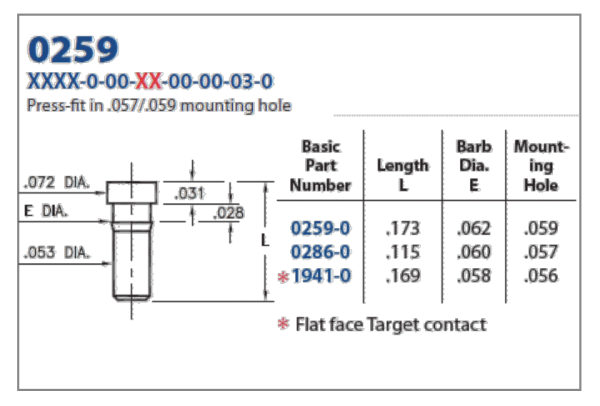

| Description: 0259 Press-fit PCB Pin Mounting Feature:Press-Fit into a Non-Plated Through Hole (NPTH) or Insulator Mounting Hole: 0.059″ (1,499mm) Tail Type: No Tail Tail Diameter: 0″ (0,0mm) Product Family:Printed Circuit Board (PCB) Pin Packaging: Packaged in Bulk RoHS : Yes Product Lifecycle :Active MaterialsShell Material : Brass Alloy |
Technical SpecsOperating Temperature Range : – 55/+125° C |
What is press-fit in PCB?
The press-fit technology is a solder-less termination technology used in electrical systems throughout the interconnection industry, which mechanically and electrically joins a press-fit contact to a printed circuit board (pcb).
What is the standard press-fit pin?
The acceptable press fit for most metals (steel, brass, and aluminum) is between . 0005” and . 002”. In production assembly, the acceptable press fit is the sum of the tolerances for the pin and the hole.
What are the advantages of press-fit connectors?
- Cost-Effective & Energy-Efficient On Training And Skills.
- Helps in Decreasing Physical Labour Costs.
- Amplifies Your Job Safety.
- Enhances Job Accuracy.
- Streamline Repairs and Maintenance Efficiently.
The basic component used for making electrical connections in a wide array of electronic equipment is the pin receptacle. The JIATEL pin receptacle provides a highly reliable, low resistance electrical path to terminate the pins of a device or discrete wires to aPCB or other mating apparatus such as cables, modules or other pins and wires. Assembled into sockets i.e. DIP, SIP,PGA, etc. or used discretely, receptacles make devices and modules pluggable for repair and replacement. The machined shell or housing of pin receptacles is available in various styles depending on the application, e.g. low profile, elevated, press-fit, SMT. The terminal end of pin receptacles has many variations:a round solder tail, a press-fit tail, a surface mount base, crimp barrel, soldercup,swage feature or no tail.
Inside every JIATEL receptacle is a contact clip. A contact clip is a conductive,multi-finger, progressive die stamping. The standard material is beryllium copper and for high temperature applications, beryllium nickel is used. Both materials are heat treated to achieve optimal spring characteristics & durability.The contact clip engages, scores and holds the mated pin making an electrical and gas tight connection at 3, 4 or 6 points of contact, depending on the selected contact. JIATEL receptacles are capable of 1,000 minimum insertion cycles for a broad range of applications. Mating pin size, shape and
finish, along with application specific variables, will affect the life of a contact.
JIATEL currently offers over 39 styles of contacts to engage pins from 0.008” to 0.102” in diameter.
Pin receptacles can be utilized as discrete connectors for the plugging and unplugging of components on PC boards. They can be utilized individually or in random arrays where the usage is small. They can be handled and loaded manually in preparation for soldering or, with a different style shell, for pressfitting. When the requirement is for volume placement of receptacles, socket carriers or tape and reel packaging are tremendous labor-saving solutions for our customers.
In addition to the products found on the following pages, JIATEL offers the following stock materials and diameters available for manufacture:
BRASS Alloys 360/385:.062/.072/.078/.093/.125/.156/.187/.250 diameters
PHOSPHOR BRONZE Alloy 544:.062/.072/.078 diameters
TELLURIUM COPPER Alloy 145:.079/.093/.125/.156 diameters
