8579 Receptacle With No Tail

Market Alert: Facing rising raw material costs? Our engineers can help you optimize your plating thickness (from 1u" to high-end 10u") to meet both performance and budget.

Read Guide: A Comprehensive Analysis of Gold Plating →
Current Rating

8A
Durability

1,000 Cycles
Download Technical Datasheet

Alternative of Mill-Max 8579 Receptacle With No Tail Accepts .015″-.022″ (0,381-0,559mm) diameter leads.

Mounting Feature: Solder Mount
Mounting Hole: 0.042″ (1,067mm)
Tail Type: None
Product Family: Pin Receptacle
Material: Beryllium Copper
Pin Diameter Range : 0.015″-.020″ (0,381-0,508mm)
Maximum Current: 8A @ 30⁰ C Temp. Rise
Maximum Operating Temp  Max Current : 120˚ C
Contact Resistance: 10mΩ Max
Shell Material : Brass Alloy
Packaging: Packaged in Bulk
Lifecycle : Active

Materials

Shell Material : Brass Alloy
Shell Plating : 200 – 300 μ” Tin/Leadover Nickel
Contact
Plating :  20 μ” Gold over Nickel

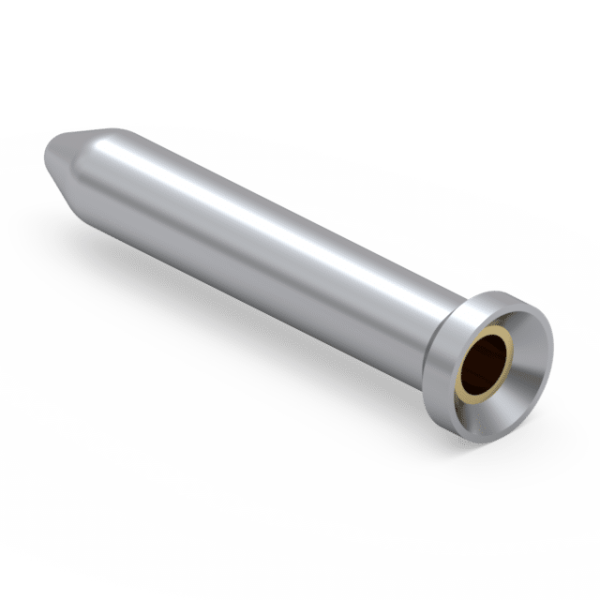

  8579-0-15-01-11-27-10-0

Technical Specs

Mechanical life (Durability) : 1,000 Cycles Minimum
Operating
Temperature Range : -55/+125° C
Current Rating : 3A @ 10°C Temperature Rise
Contact Resistance : 10 mΩ Max
Shock : No Elect. Discontinuity >1μs @ 50g
Vibration : No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Others in the same series：

8579-0-15-01-11-02-10-0

8579-0-15-01-21-02-10-0

8579-0-15-01-21-27-10-0

8579-0-15-15-11-14-10-0

8579-0-15-15-11-27-10-0

8579-0-15-15-21-14-10-0

8579-0-15-15-21-27-10-0

8579-0-15-80-11-14-10-0

8579-0-15-80-11-27-10-0
