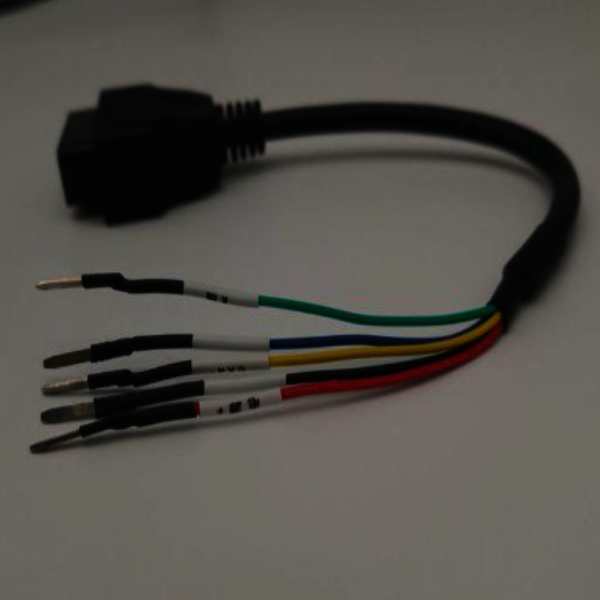

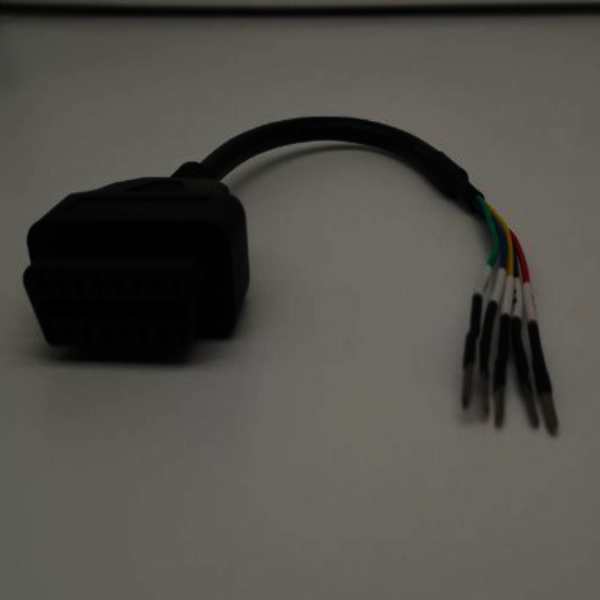

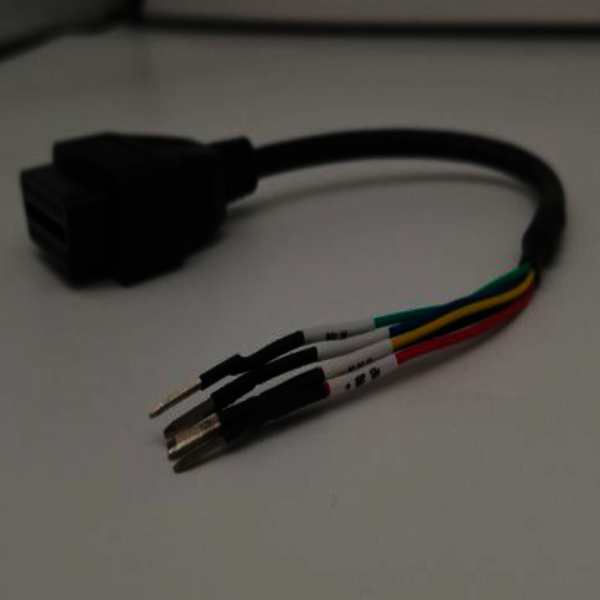

This jiatel OBD2 female connector is a specialized jumper tester and breakout box. It allows technicians to directly test a vehicle’s OBD2 communication pins. Made for professional use, it provides pin-level access to key signals like K-Line, CAN-bus High, and CAN-bus Low for accurate diagnostics and troubleshooting.
A Pro-Level Tool for Advanced Vehicle Diagnostics
When a diagnostic scanner fails to connect with a vehicle, the problem could be in the scanner, the ECU, or the wiring. Our jiatel OBD2 Jumper Tester helps you accurately find the source of the issue. This is more than just a cable—it’s a powerful tool that gives you full access to your car’s communication lines.
Key Features
- Pin-Level Diagnostic Access: You can directly probe each of the 16 pins with a multimeter or oscilloscope. This helps you quickly test for power, ground, and communication signals.
- K-Line & CAN-bus Support: This tester is specifically designed for the two most common communication protocols. It lets you check for K-Line signals (Pin 7) on older models and also test for high-speed CAN High (Pin 6) and CAN Low (Pin 14) signals on modern vehicles.
- Rerouting and Jumper Functionality: The open design lets you safely reroute signals. You can use jumper wires to connect different pins, which is helpful for specialized programming or for bypassing a broken wire.
- Built-in Safety: We made this connector with high-quality materials to ensure a secure and safe connection. This helps prevent short circuits and damage to your vehicle’s sensitive electronics during testing.
Key Specifications
How It Works
Just plug this tool into your car’s OBD2 port. The 16 female pins are exposed, which lets you use a voltmeter or oscilloscope to check the voltage and waveform on each pin. Therefore, you can quickly find out if a problem exists with your vehicle’s power, ground, or communication lines before you connect a more expensive diagnostic tool.
FAQ
Q1: Is this tool suitable for beginners? A1: This tool is for experienced users and technicians who understand automotive electronics and diagnostic procedures.
Q2: Does this product include jumper wires? A2: No, this product includes only the connector itself.
Q3: Can I use this to connect my diagnostic tool to the car? A3: This is a diagnostic tool, not a simple adapter. You use it to troubleshoot communication issues before you connect your main diagnostic scanner.
jiatel: Your Trusted Partner for Professional Diagnostics
jiatel is dedicated to providing high-quality, reliable tools for automotive professionals. As a result, our OBD2 Jumper Tester is a must-have for any technician’s toolbox, giving you the precision you need for advanced troubleshooting.
Take control of your diagnostics. Purchase the jiatel OBD2 Jumper Tester today.
