High-Reliability SMT Holder: The Precision-Engineered Alternative to Keystone 1022 Dual AAA Battery Tray.
Are you facing challenges sourcing a reliable, high-quality Dual AAA Battery Holder that is robust enough for SMT Reflow Soldering and demanding industrial environments?
The Jiatel JT-BH1022SM holder is designed as the perfect alternative to the Keystone 1022. We engineered this part to provide a superior, stable supply solution that addresses common production issues, such as low-quality SMT holders failing under heat or lacking crucial mechanical stability.
✅ For Engineers: Optimized for Reflow and Mechanical Durability
This holder combines material excellence with a refined mechanical design, ensuring consistent power in critical applications:

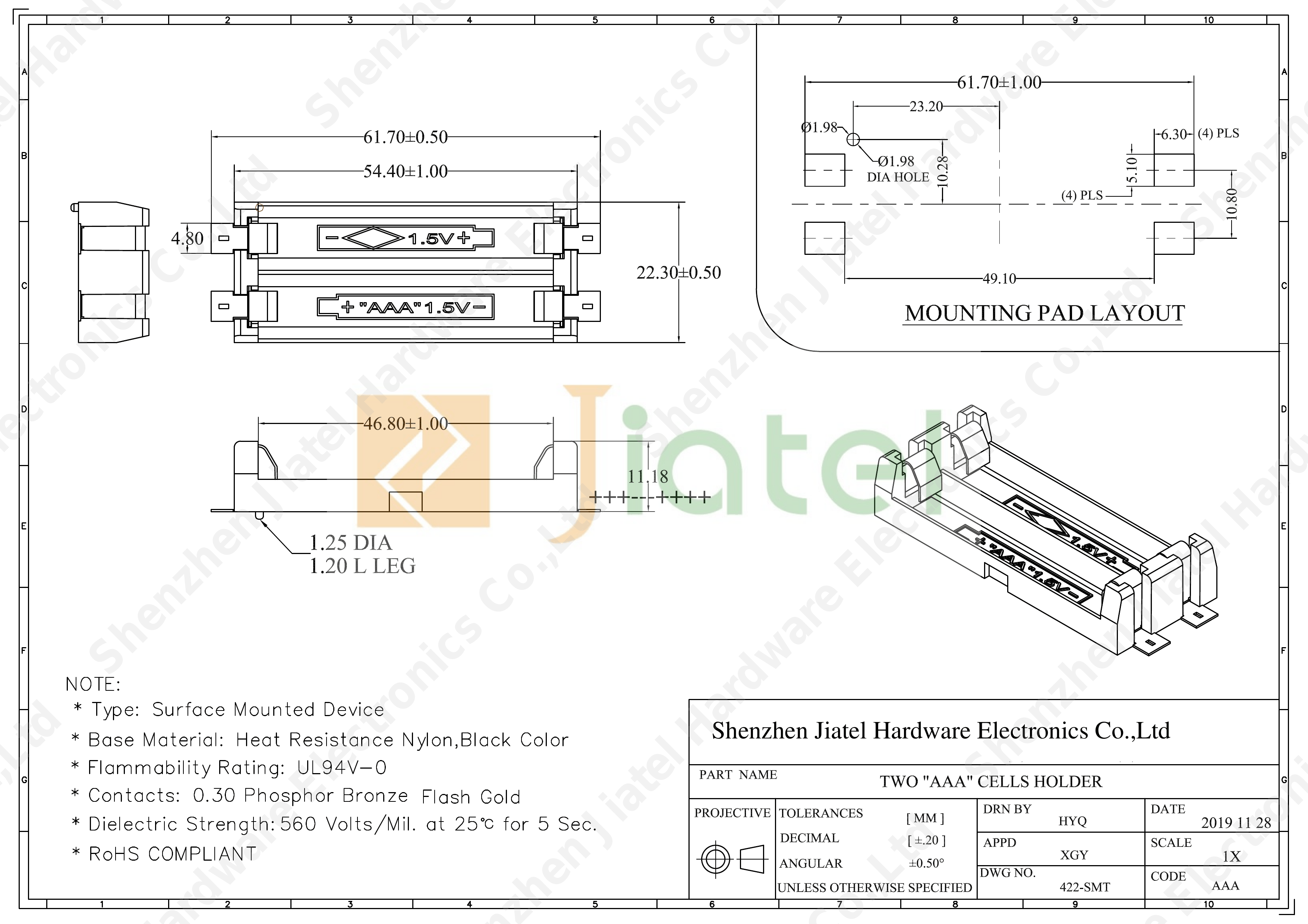

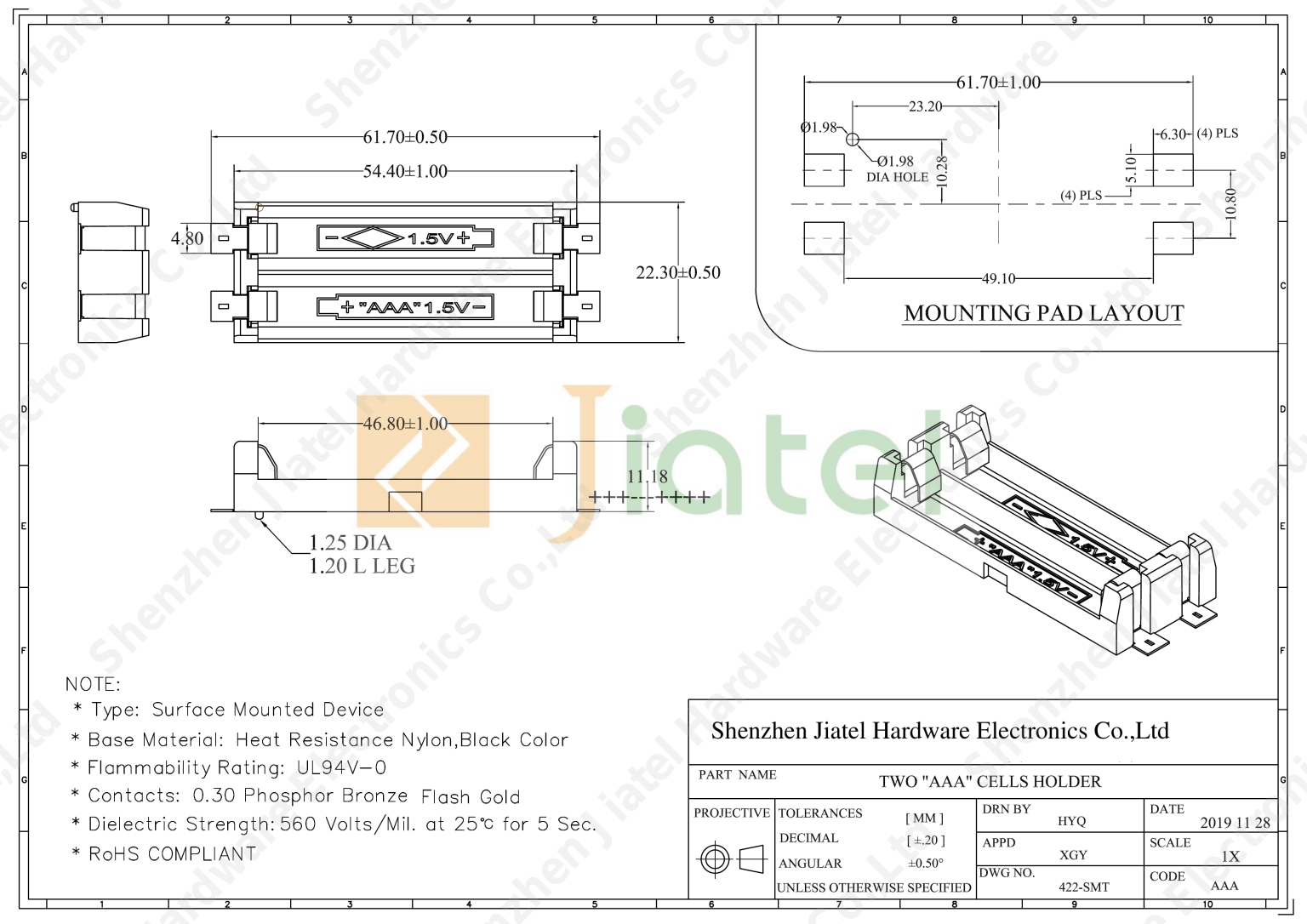

- Design Match: Offers full compatibility with the Keystone 1022’s electrical and mechanical footprint, guaranteeing a direct, drop-in replacement without requiring any PCB layout changes.
- Low Profile & Space-Saving: Features an ultra-low profile, making it essential for compact devices and any application where minimal height is critical for component placement.
- High-Temperature Construction: Fabricated using UL 94V-0 certified High Temp Nylon, guaranteeing structural integrity throughout the SMT reflow process. It is fully compatible with Lead-Free Solder standards.
- Secure Contacts: Equipped with Gold-Plated Stainless Steel contacts, ensuring minimal contact resistance and providing a secure, reliable spring tension to lock the cells in place, offering excellent shock and vibration resistance.
- Versatile Application: This 2x AAA (3.0V nominal) series solution is widely trusted for use in Memory Backup, Industrial Control systems, and high-demand Telecom applications.
- Automation Ready: Its uniform and stable body design facilitates highly efficient assembly using standard Vacuum Pick-and-Place machinery.
💰 For Purchasing Managers: Guaranteed Supply and Superior Cost Structure
Partner with Jiatel for supply certainty, cost efficiency, and predictable logistics:
| Supply Advantage | Jiatel Commitment | Business Value |
| SMT Automation Supply | Furnished in Tray or Tape & Reel (T&R) packaging, designed for automation. | Ensures maximum throughput and minimizes downtime on high-speed assembly lines. |
| Quality Compliance | Housing material carries the UL 94V-0 Flame Retardant certification. | Simplifies regulatory compliance and enhances overall product safety. |
| Predictable Lead Time | We guarantee a standard lead time of 4 Weeks Delivery (A.R.O.) for consistent bulk orders. | Provides stability and predictability, drastically improving your inventory management and planning. |
| Cost Leadership | Leverage our factory-direct model for a significant reduction in your Bill of Materials (BOM) cost compared to major distributors. | Directly contributes to higher profit margins for high-volume products. |
Technical Specification Comparison (Table Block)
| Parameter | Jiatel Alternative (JT-BH1022SM) | Keystone 1022 (Ref.) | Key Advantage |
| Supported Cell Sizes | AAA (Micro) | AAA | ✓ (Exact Match) |
| Number of Cells | 2 Cells | 2 Cells | ✓ (Standard Dual AAA) |
| Mounting Style | SMT (Surface Mount) | SMT (Surface Mount) | ↑ (Low Profile, Lead-Free Solder Ready) |
| Housing Material | UL 94V-0 High Temp Nylon | High Temp Nylon UL 94V-0 | ↑ (Resistant to Reflow Temperatures) |
| Contact Material | Gold-Plated Stainless Steel/Phosphor Bronze | Gold-Plated Stainless Steel | ↑ (Low Contact Resistance, Anti-Vibration) |
| Height (H above PCB) | approx 11.18mm (0.440″) | 11.18mm (0.440″) | ✓ (Precise Height Match) |
| Packaging | Tray/Tape & Reel (T&R) | Bulk/Tray | ↑ (Optimized for Automation) |
| Cross Reference | Keystone 1022 alternatives (AAA SMT Battery Tray) | – | ✓ (Direct Replacement) |
FAQ
Q: Is the Jiatel JT-BH1022SM PCB footprint an exact match to the Keystone 1022?
A: Yes. We confirm the SMT pad layout and external dimensions are an exact match, allowing for immediate integration without any PCB modifications.
Q: Why is the Low Profile design important for my application?
A: The Low Profile structure is essential for space-constrained designs as it minimizes the required vertical clearance, enabling denser component placement or thinner final product enclosures.
Q: Can this SMT battery holder withstand the temperatures of a lead-free reflow profile?
A: Absolutely. The materials used, particularly the UL 94V-0 rated nylon, are specifically rated to tolerate the higher temperatures associated with modern lead-free reflow soldering processes.
Q: How does the holder prevent battery disconnection under shock or vibration?
A: The contacts are precision-stamped to apply optimal spring force and are corrosion-resistant, ensuring the cells are securely retained and maintain electrical continuity even when subjected to mechanical stress and vibration.
