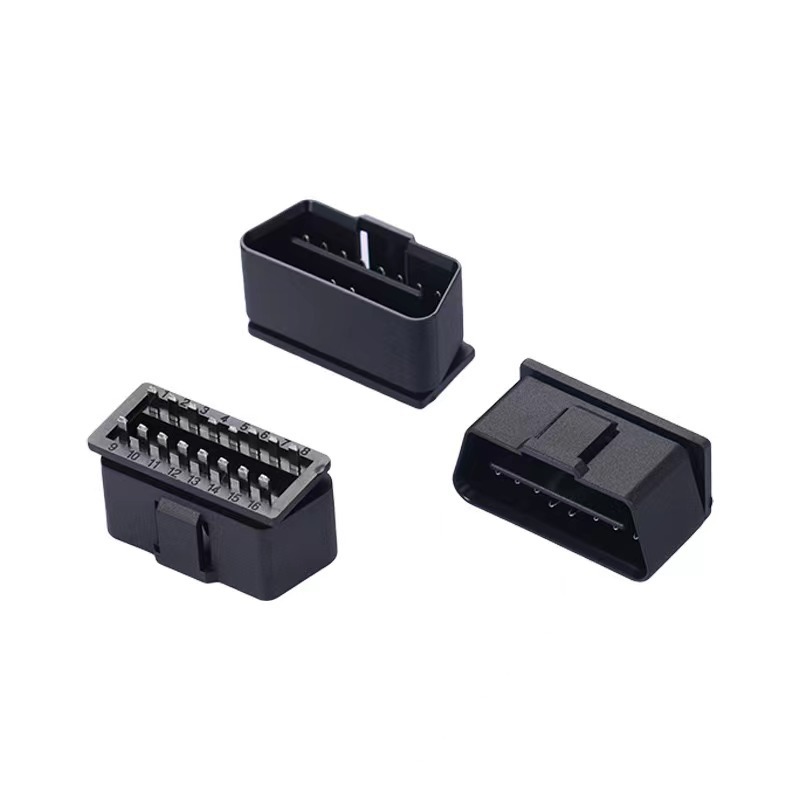

This OBD-II male connector features 16 straight pins (16-core design) and a durable housing, engineered for seamless integration into automotive diagnostic systems. Compliant with SAE J1962 (OBD-II standard), it ensures reliable signal transmission for fault code reading, ECU programming, and real-time vehicle data monitoring. Ideal for DIY wiring harnesses, diagnostic tools, and aftermarket OBD extensions.
Technical Specifications
| Parameter | Details |
|---|---|
| Connector Type | Male, 16-pin (2 rows × 8 pins), straight pins (0° insertion angle) |
| Pin Configuration | SAE J1962 standard (Pins 1-16, including power, ground, CAN/LIN/K-line) |
| Housing Material | High-impact ABS (UL94 V-0 flame-retardant), black finish |
| Pin Material | Gold-plated brass (≥3μ” thickness) for corrosion resistance and low resistance (≤50mΩ) |
| Cable Gauge Support | AWG 22-24 (tinned copper wires, shielded or unshielded) |
| Operating Temperature | -40°C to +105°C (-40°F to +221°F) |
| Certifications | RoHS, REACH, SAE J1962-3 (2019) |
| SKU | OBD-M16-ST-ABS |
Key Features
1. SAE J1962 Compliance
- Matches the global OBD-II standard, compatible with 99% of cars/trucks (1996+ model years) and diagnostic tools (e.g., Autel, Launch, VCDS).
2. Straight Pin Design
- 0° pin orientation simplifies soldering/wiring in tight spaces (e.g., under-dash OBD ports, compact diagnostic modules).
3. Durable Housing
- Impact-resistant ABS withstands mechanical stress (vibration, temperature cycles), while the gold-plated pins ensure long-term conductivity (≥10,000 insertion cycles).
4. Versatile Integration
- Use as a replacement plug for damaged OBD ports, or in custom harnesses for fleet telematics, dashcams, or ECU tuners.
5. Plug-and-Play Ready
- Pre-molded housing with secure latch (prevents accidental disconnection) – no additional assembly required.
Applications
1. Automotive Diagnostics
- Connect to OBD scanners, code readers, or data loggers for engine/transmission/ABS diagnostics.
2. Aftermarket Modifications
- Build custom OBD extensions (e.g., 1.5M/3M cables) for hard-to-reach ports in SUVs, trucks, or motorcycles.
3. Fleet Telematics
- Integrate into GPS tracking systems for real-time vehicle health monitoring (fuel efficiency, DTCs, mileage).
4. DIY Electronics
- Ideal for hobbyists building OBD-powered projects (e.g., Arduino-based dashboards, OBD-to-Bluetooth adapters).
Why Choose Our OBD Connector?
- Precision Engineering: Tight pin-to-housing tolerance (±0.05mm) ensures no signal loss or misalignment.
- Cost-Effective: Bulk pricing available (MOQ 100 units) for repair shops, 线束 manufacturers, or resellers.

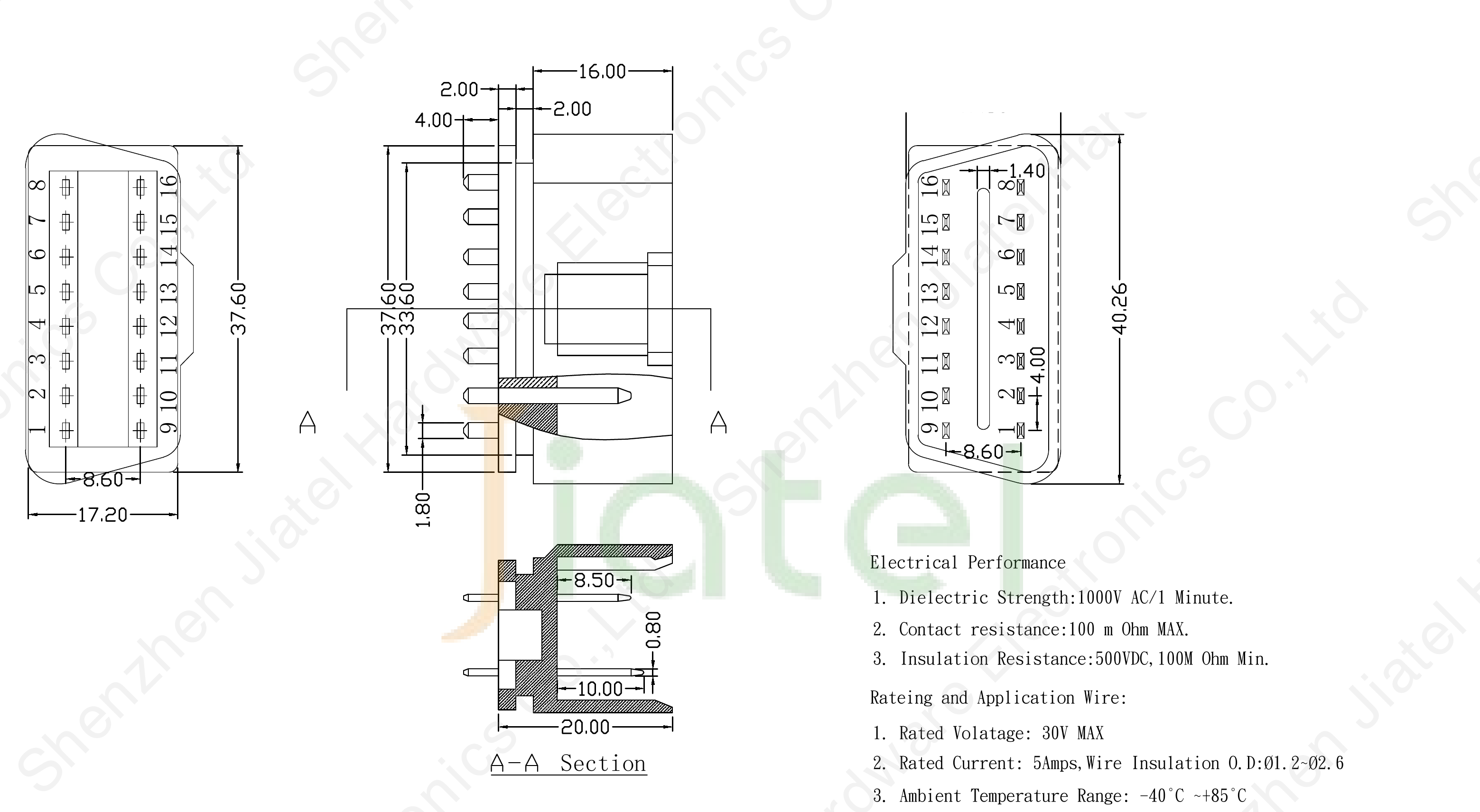

- Global Support: Free technical drawings (CAD files) for custom harness design; 24/7 email support.
