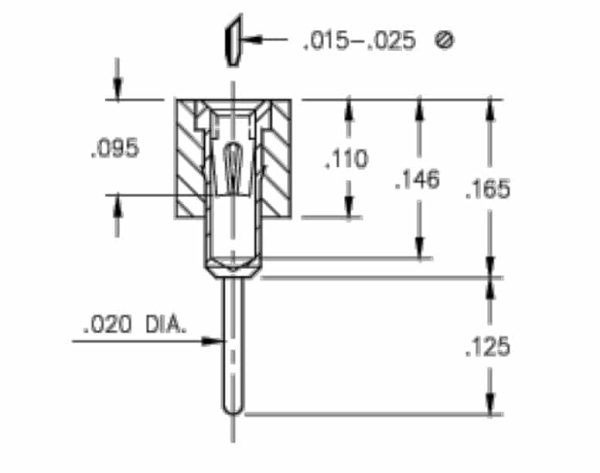

General Info Description:

Solder Tail PGA Socket Type: PGA
Category: Machined Pin Socket
Mounting Style: Through Hole Solder Mount
Pins: 12
Packaging: Packaged in Box or Tube
ECCN: EAR99
HTSUS: 8536.90.4040
Product Lifecycle: Active

Materials

Loose Pin/Receptacle (Material):1001 (Brass Alloy)
Shell Plating: 10?” Gold over 100?” Nickel
Inner Contact: 32
Contact Fingers: 6
Inner Contact Material: Beryllium Copper
Inner Contact Plating: 30?” Gold over 50?” Nickel
Insulator Material: High Temp Thermoplastic

Environmental Specs

Temperature Range: -55/+125°C
Shock: No Elect. Discontinuity > 1?s @ 50g
Vibration:No Elect. Discontinuity > 1?s @ 10-2000HZ, 15 G
RoHS: Yes
Moisture Sensitivity Level (MSL):1 (Unlimited)
:

Mechanical Specs

Mechanical life (Durability): 100 Cycles Minimum
Mounting Hole: 0.024″ (0,610mm)

Electrical Specs

Current Rating: 3 Amps
Contact Resistance: 10 m? max.
Rated Voltage: 100 VRMS/150 VDC
Insulation Resistance: 10,000 M? min.
Dielectric Withstanding Voltage: 1,000 VRMS min.
