Engineering Datasheet: THM Coin Cell Retainer, Direct Footprint Replacement for Keystone 3013
Securing Ø16.0mm coin cells in high-vibration environments requires robust through-hole integration. The JIATEL JT-BC-1632-KS3013 is a direct footprint replacement for the Keystone 3013. Unlike the SMT 3012 variant, this retainer deploys a dual-pin THM architecture. It provides extreme resistance against lateral shear forces. You can execute seamless board-level integration for CR1620 and CR1632 backup cells without altering existing PCB drill hole coordinates.
Verified Board-Level Parameters
| Target Cross-Reference | Direct Footprint Replacement for Keystone 3013 |
| Mounting Architecture | Through-Hole Mount (THM) Dual Pin |
| Axial Pin Pitch | 16.97mm Spread (Requires 2-Ø1.85mm Drills) |
| Negative Pad Constraint | 4.00mm Square Minimum (Center Pad) |
| Base Metallurgy | T=0.25mm Phosphor Bronze | Nickel Plated |
Target Deployments
- Industrial Controllers: Heavy-duty PLC modules requiring wave-soldered RTC backup.
- Automotive Electronics: In-cabin sensor nodes exposed to constant road vibration.
- Medical Equipment: Stationary diagnostic hardware demanding maximum terminal retention.
Metallurgical Rigidity & Wave Soldering Integrity
We stamp the JT-BC-1632-KS3013 from rigid T=0.25mm Phosphor Bronze. The top clamping arms maintain continuous pressure on the CR1620/CR1632 cells, preventing voltage drop during mechanical impact. We finish the THM tails with high-density Nickel Plating. This maximizes wave solder wettability across the 16.97mm pin layout. It eliminates the risk of cold solder joints and physical detachment.
NPI PCB Footprint Audit & SLA Directive

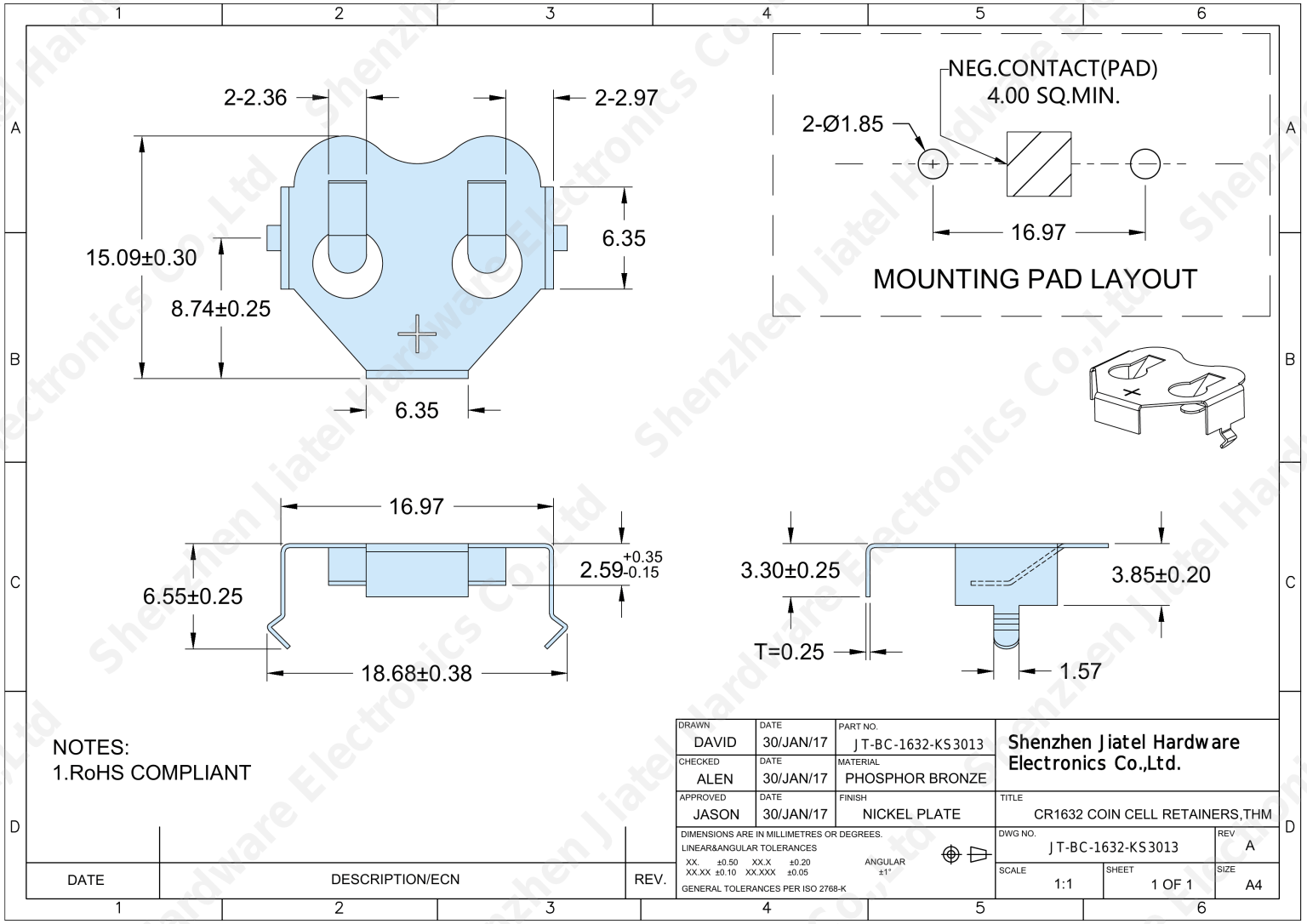

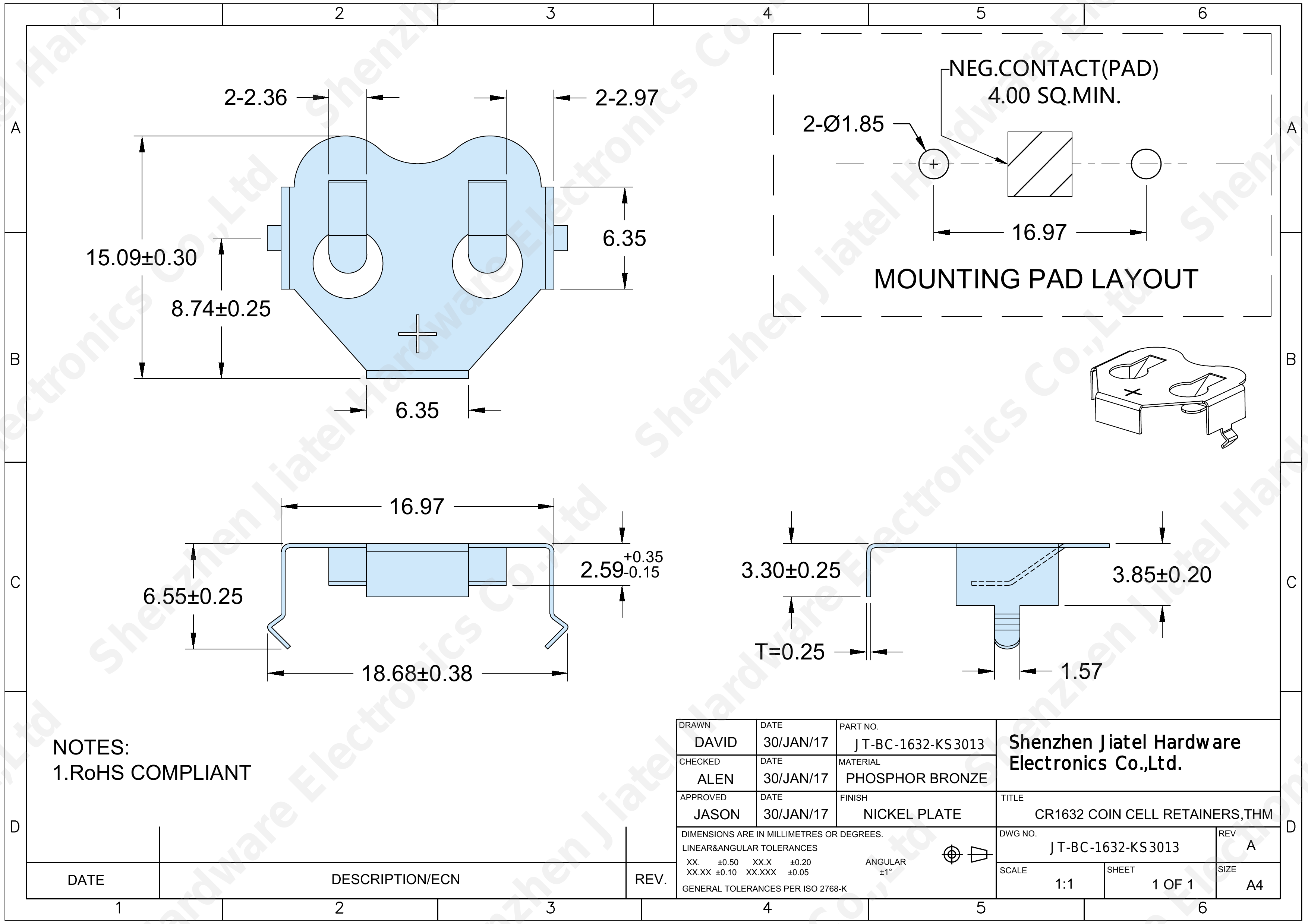

Through-hole integration demands strict adherence to pin pitch dimensions and drill tolerances. Layout errors cause pin bending and wave soldering failures. Our engineering rules strictly prohibit the distribution of unverified digital mockups. We execute structural footprint validation exclusively through official [Technical Datasheets]. We rely on dimensionally controlled [2D Footprint Specs].
Confirm that our THM retainer matches your FR4 drill pattern. We must deploy our Senior NPI Engineering Team to ensure a 1:1 footprint replacement. Submit your board constraints directly to our technical desk: Request Engineering Support. We will dispatch matched, production-ready PDF drawings within 12 working hours.
