Introduction: The Starting Point for Flexible Interconnection Decisions
In modern electronics design—where miniaturization, high performance, and dynamic motion are non-negotiable—flexible interconnection is key. FPC (Flexible Printed Circuit), FFC (Flexible Flat Cable), and Jumper Cables are the three most common flexible solutions, yet their purpose, cost, and technical specifications differ significantly.
This article serves as your ultimate technical guide. We will delve into the core differences between FFC and FPC, providing a professional decision matrix to help you select the safest and most efficient connection method for your next project.
FPC vs FFC: Core Differentiators from Manufacturing to Performance
While FFC and FPC look similar, their manufacturing process and materials dictate their nature and range of applications.
1. Structure and Manufacturing Process Comparison
FFC is relatively simple, made by laminating flat copper wires between insulating layers of PET (Polyethylene Terephthalate). This FFC manufacturing process is cost-effective and highly standardized, typically resulting in a single-layer structure.
In contrast, FPC functions more like a flexible circuit board. It uses high-thermal substrates like PI (Polyimide) or LCP (Liquid Crystal Polymer), where circuit patterns are created using a chemical etching process. FPC supports complex multi-layer routing (up to 14 layers) and can have electronic components (ICs, resistors, capacitors) integrated directly onto the circuit, making it a true functional unit beyond a simple cable.
2. Performance, Cost, and Application Scenarios
| Feature | FFC (Flat Flexible Cable) | FPC (Flexible Printed Circuit) |
| Cost | Lower, ideal for high-volume, cost-sensitive consumer electronics. | Higher, due to customization and advanced processes. |
| Signal Integrity | Fair, not suitable for high-speed, high-frequency signals. | Excellent, supports FPC Impedance Control for high-speed data transmission (up to 25 Gbps). |
| Flex Cycles | Great for dynamic, repeated bending (FFC for dynamic bending) like in printers and scanners. | Superior, suitable for dynamic flexing and complex 3D routing found in premium devices like FPC for Foldable smartphones. |
| Thermal Stability | Limited by the PET substrate. | High, PI/LCP handle harsh, high-temperature environments. |
| Min. Pitch | 0.5mm, 1.0mm common. | Can achieve FPC fine pitch size, down to 0.2mm, crucial for miniaturization. |
The Third Option for Flexible Cables: Jumper Cables
Jumper Cables (or Ribbon Jumpers) are often compared to FFC/FPC but represent a simpler connection solution. They typically feature wider pitches (e.g., 1.27mm or 2.54mm) and are the least complex of the three. They are primarily used for prototyping, testing, or simple board-to-board connections. Lacking the complex circuit capabilities of FPC, their primary value is ease of use for temporary or low-frequency-motion applications.
Connector Selection and Critical Technical Details

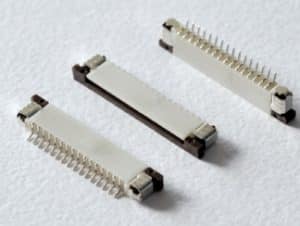

The reliability of a flexible interconnect system hinges on the matching connector. Both FPC and FFC most commonly mate with ZIF (Zero Insertion Force) or Non-ZIF connectors.
1. Essential Connector Types
- ZIF Connectors: Utilize a secure locking mechanism (like a Front-Flip or Back-Flip latch) to ensure zero insertion force and high cable retention. The type of flip mechanism impacts space requirements and locking security.
- Contact Types: Designers must select the appropriate connector type (Top Contact, Bottom Contact, or Dual-Sided Contact) to match the cable’s exposed contact orientation.
2. Must-Consider Design Specifications
When designing with these components, the following specifications are paramount:
- Pitch Size: The distance between the center of adjacent conductors. The FPC fine pitch size requirement must precisely match the connector pitch.
- Plating: The plating material (Gold or Tin) on both the connector contact and the cable terminal must match to prevent galvanism and ensure long-term reliability.
- Shielding: For high-frequency signals or critical applications (e.g., Automotive ADAS), FPC can be customized with shielding layers to mitigate EMI (Electromagnetic Interference).
FFC- PCB (need the Gerber file)Specs: 1.0mm pitch -12pin B type |
Shielding FFC observing material Specs: 0.5mm pitch -12pin B type |

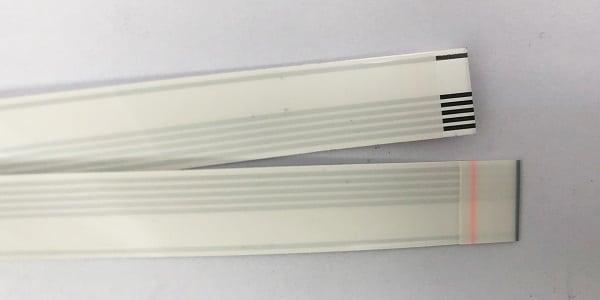

Customize FFC missing pinsSpecs: 1.25mm pitch 9Pin A type |
Normal FFCSpecs：0.5mm pitch 50Pin FFC B type |
Decision Matrix: Choosing the Right Flexible Solution
To guide your selection, use this matrix based on your primary design constraints:
| Design Requirement | FFC | FPC | Jumper Cable |
| Need High-Speed Signal/Impedance Control? | ❌ (Not Recommended) | ✔️ (Supported) | ❌ (Not Recommended) |
| Need Integrated Components or Multi-Layer Circuitry? | ❌ (Cannot) | ✔️ (Yes) | ❌ (Cannot) |
| Require the Strict Lowest Cost Budget? | ✔️ (Low Cost) | ❌ (High Cost) | ✔️ (Low Cost) |
| Must operate in Extreme Temperature/Harsh Environments? | ❌ (PET Limitation) | ✔️ (PI/LCP) | ❌ (Unsuitable) |
| Need Simple Point-to-Point Connectivity? | ✔️ (Efficient) | ❌ (Overkill) | ❌ (Non-Permanent) |
| Used for Prototyping or Temporary Connections Only? | ❌ (Not Primary) | ❌ (Too Expensive) | ✔️ (Ideal) |
Conclusion: Ready to Select Your Connector? Partner with Jiatel
Choosing the right flexible solution is the first step to unlocking your product’s full potential. While FPC provides the technological ceiling (for high-speed, miniaturized designs), and FFC offers cost-efficiency, the reliability ultimately depends on the quality of the components and customization expertise.
Jiatel provides a full ecosystem of flexible connectivity:
- Precision FPC/FFC Connectors: A wide selection of ZIF and Non-ZIF connectors across all common pitch sizes (from 0.2mm to 2.54mm).
- Custom FPC Manufacturing: Expertise in multi-layer stack-ups and advanced FPC Impedance Control required for high-frequency applications like 5G and Foldable devices.
Don’t compromise on connectivity. Get expert guidance on your specific design challenges—whether you need high-volume FFC connectors or a fully customized FPC solution.
Call to Action: [Contact our technical sales team now] to secure a competitive edge with reliable, high-performance flexible connectivity components.
