Jiatel Pogo Pin Charger: Empowering Innovation with Precision Connectivity

1. Introduction: Jiatel Pogo Pin Charger – The Future of Reliable Connectivity

In today’s rapidly evolving electronic device landscape, miniaturization, intelligence, and interconnectedness have become irreversible trends. From smartphones to wearables, and from complex industrial systems to medical instruments, the demand for efficient and reliable power and data transmission solutions has never been more urgent. Traditional connection methods, such as common USB cables, often face challenges like wear and tear, port damage, and space occupation after frequent plugging and unplugging and long-term use. These issues not only affect user experience but also increase device maintenance costs and reliability risks over their lifecycle.

It is against this backdrop that Pogo Pin chargers, with their unique structure and outstanding performance, are rapidly becoming the ideal solution to address these pain points. This innovative connection technology provides seamless, durable, and efficient electrical connections, significantly enhancing the overall performance and user experience of electronic products.

Jiatel, as a leading Chinese supplier of connectors and cable assemblies, leverages its deep expertise, excellent manufacturing capabilities, and relentless pursuit of innovation to provide high-quality, cost-effective Pogo Pin charging solutions. Jiatel’s products have not only built a reputation in the industry for their outstanding reliability and durability but also, through continuous technological advancement and a deep understanding of customer needs, empower the innovative development of electronic products worldwide, becoming the trusted choice for many top-tier enterprises.

2. Unveiling the Working Principle of Jiatel Pogo Pin Charger

A Pogo Pin charger is a charging system that utilizes precise Pogo Pin components to achieve power transmission. A Pogo Pin itself is a spring-loaded probe with compressive elasticity, whose basic structure consists of three main parts: a movable plunger, a spring that provides contact pressure, and a barrel that houses the plunger and spring.

The uniqueness of this connector lies in its working mechanism. When a device comes into contact with the charger, the plunger of the Pogo Pin is compressed by the action of the built-in spring, thereby establishing a stable electrical connection with the charging contacts on the device. This design avoids the common friction and wear associated with traditional plug-in connectors, ensuring connection stability and reliability.

To further enhance connection convenience and precision, many Jiatel Pogo Pin chargers can also integrate magnetic adsorption functionality. Magnetic assistance ensures that devices can easily and accurately dock with the charger, providing a “place and charge” seamless experience. This design is not just a functional improvement; it is a profound transformation of the user experience. In today’s fast-paced modern life, reducing connection friction and cognitive load directly enhances product appeal. This design philosophy reflects the evolution of modern electronic product design from pure functionality to a “seamless experience.” By providing Pogo Pins that support magnetic adsorption, Jiatel not only solves technical problems but also meets users’ deep-seated needs for convenience and intuitive operation, thereby enhancing the market competitiveness of end products. This demonstrates that Jiatel understands and supports its customers’ innovations in user experience, not just providing hardware components.

3. The Outstanding Advantages of Jiatel Pogo Pin Chargers

Jiatel’s Pogo Pin chargers, with their innovative design and precision manufacturing, surpass traditional connection solutions in many aspects, bringing significant value to customers.

3.1 Unparalleled Durability and Long Lifespan

Jiatel Pogo Pins utilize high-quality materials and precision machining processes to ensure excellent mechanical durability. For example, plungers are typically made of gold-plated brass, providing excellent conductivity and corrosion resistance; barrels are made of durable stainless steel, while springs use materials like beryllium copper to ensure they maintain their elasticity and strength during repeated compression and and release. This selection of materials and stringent manufacturing standards enable Jiatel’s Pogo Pins to withstand tens of thousands or even hundreds of thousands of mating cycles. For instance, some right-angle Pogo Pins can have a mating life of up to 100,000 cycles, far exceeding traditional connectors.

This exceptional durability directly translates into a “reduced total cost of ownership” for customers. The wear and tear of traditional connectors (like USB) are common pain points. Jiatel, by selecting high-quality materials and precision processes, and conducting rigorous durability tests, achieves an ultra-long mating lifespan. For devices requiring frequent connection and disconnection (such as automated test equipment, wearables), this reduces repair and replacement costs and downtime due to connector failures. This is not just an extension of product life, but an improvement in reliability and economy throughout the product lifecycle, especially in industrial and medical applications where reliability requirements are extremely high, its value is even more prominent.

3.2 Ultimate Space Efficiency and Flexible Design

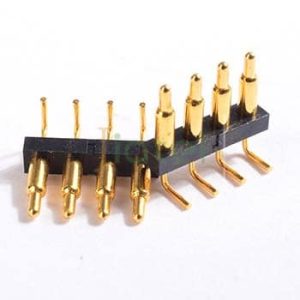

Jiatel offers a variety of mounting options, including Surface Mount (SMT), Through-Hole (DIP), and unique 90-degree right-angle designs. Particularly, the right-angle Pogo Pin, with its unique bent tail design, allows the connector to connect horizontally to the PCB, greatly saving vertical space, making it an ideal choice for space-constrained applications. This design is especially useful in height-restricted applications, such as mobile devices, portable electronics, or compact test systems.

The miniaturization of electronic products is an irreversible trend. The right-angle Pogo Pin, through its 90-degree design, compresses the vertical stacking thickness to the extreme, solving the layout challenges of traditional connectors in confined spaces. Jiatel not only provides this design but also offers customized lengths, pitches, and shapes, and even customized plastic insulators. Jiatel’s right-angle Pogo Pins and their highly customizable capabilities make it a solution provider for “space optimization” and “complex form factor design.” This gives engineers greater freedom in product design, enabling them to create more compact, aesthetically pleasing, and powerful products, thereby standing out in a competitive market. This flexibility is a key element driving future innovative product forms.

3.3 Stable and Efficient Power and Signal Transmission

Jiatel Pogo Pins ensure low contact resistance and high current carrying capacity. For example, their contact resistance can average 9.6mΩ, far below the IPC standard recommendation of 20mΩ. In parallel configurations, Jiatel’s Pogo Pins can support currents up to 50A, ensuring efficient and stable power transmission.

In addition to powerful power transmission capabilities, Jiatel Pogo Pins also possess excellent signal integrity. Their response time can be as low as nanoseconds (e.g., less than 10ns), making them ideal for high-frequency signal transmission. In circuits with strict impedance matching requirements, Jiatel can optimize signal transmission by specific configurations, such as surrounding signal pins with ground pins, to reduce interference and maintain signal fidelity.

Modern electronic systems (such as EV BMS, drones, high-precision medical devices) not only require high-current power supply but also need to transmit complex signals at high speed and without loss. Jiatel directly meets these stringent requirements by providing Pogo Pins with low contact resistance, high current capacity, and excellent signal integrity. This is not just about “being able to conduct electricity,” but about “how to conduct electricity and transmit signals efficiently, reliably, and without loss.” Jiatel’s advantages in these key performance indicators make it the preferred choice for high-reliability, high-performance applications, such as in harsh environments or mission-critical systems, ensuring that device functionality and safety are not compromised. This demonstrates Jiatel’s deep strength as a “technology leader.”

3.4 Simplified Assembly and Reduced Costs

The integrated design of Pogo Pins (a single component performing both contact and spring functions) simplifies the assembly process of electronic products, reducing the number of required parts and assembly complexity. This design is highly suitable for automated manufacturing systems, where horizontal placement can accelerate assembly speed and reduce production costs.

Jiatel boasts a strong automated production line, capable of producing 100,000 Pogo Pins and Pogo Pin connectors weekly, equipped with 11 automated assembly machines. This efficient production capacity further accelerates assembly speed, reduces production costs, and lowers assembly error rates.

The assembly cost and error rate of complex products are significant challenges in manufacturing. Jiatel, through its integrated design and automated production capabilities, directly reduces customers’ production costs and time. Jiatel not only provides high-performance components but also, through its design and manufacturing capabilities, helps customers optimize their overall production processes, achieving faster time-to-market and higher production efficiency. This improvement in “total cost-effectiveness” is highly attractive to modern enterprises pursuing lean production and rapid iteration.

3.5 Enhanced User Experience

Pogo Pin chargers eliminate the need for precise alignment; simply placing the device on the charger initiates charging, greatly enhancing the convenience and fluidity of daily use. This “place and charge” experience makes the charging process more intuitive and hassle-free.

Furthermore, Pogo Pin chargers avoid the physical wear and tear on device ports caused by traditional plugging and unplugging, reducing charging interruptions or data transmission failures due to poor connections. This not only extends the device’s lifespan but also provides users with a consistently stable and worry-free charging experience.

In the consumer electronics market, user experience is one of the key factors for product success. Jiatel Pogo Pin chargers’ “worry-free experience” directly enhances the appeal of end products. This excellent user experience is not just a functional advantage; it is an important source of brand differentiation and market competitiveness. By adopting Jiatel’s Pogo Pin charging solutions, customers can imbue their products with a “high-end, convenient, and reliable” image, thereby gaining an advantage in fierce market competition and enhancing user satisfaction and brand loyalty.

Jiatel Pogo Pin Charger vs. Traditional Connectors: Advantages Comparison

4. Wide Application Scenarios for Jiatel Pogo Pin Chargers

Hearing AIDS Pogo Pin application for charging connection:low resistance, high contact stability. Pogo Pin is used for connecting antennas:low impedance, anti-interference. LDS antenna: high space utilization, stablesignal transmission, high consistency.	Smart home/electronic door lock Pogo Pin is used for charging connection:high current, low impedance, high contactstability.	Shared power bank Pogo Pin application for charging connection:high current, high stability, long life.
5G base stations Application of Pogo Pin in 5G base station,RF, high speed, zero defect.	Smart glass Pogo Pin is applied to the chargingconnection of water cup: stable, lowimpedance, long life.	New energy charging pile Pogo Pin is applied to new energy chargingconnection: stable, high current, long life.

Jiatel Pogo Pin chargers, with their versatility and excellent performance, have become an ideal choice for numerous cutting-edge industries and devices.

Consumer Electronics

In consumer electronic products such as smartphones, tablets, smartwatches, wearables, and Bluetooth headsets, Jiatel Pogo Pin chargers enable compact, convenient charging and data connections. They are particularly suitable for docking stations and charging ports, maximizing the space efficiency of the connector while maintaining connection reliability.

Medical Devices

Medical devices demand extremely high reliability, compactness, and corrosion resistance from connectors, as poor connections can affect device function and patient safety. Jiatel’s Pogo Pins are widely used in diagnostic equipment, wearable health monitoring devices, and even implantable medical devices (such as smart capsules, neural stimulators). For example, Jiatel’s right-angle Pogo Pins can maintain over 98% electrical performance integrity after 60 days of immersion in 37℃ physiological saline solution. This is not just a display of technical performance but a commitment to “risk mitigation” for medical device manufacturers. In life-critical applications, Jiatel’s Pogo Pins can provide reliability that meets or even exceeds industry standards, helping customers meet stringent medical regulations and certification requirements, accelerating product launch, and reducing recall risks.

Industrial Automation and Robotics

In industrial applications, Jiatel Pogo Pin chargers are used in equipment requiring robust, repeatable connections under harsh conditions, such as control panels, Human-Machine Interface (HMI) systems, and robot arm signal feedback modules. They provide reliable connections in highly repetitive movements, for instance, in robot arms, where they can reduce misconnection rates by 41% compared to traditional terminal connectors, even with high-speed crimping exceeding 200 times per hour.

Electric Vehicles (EV) and Battery Management Systems (BMS)

Battery Management System (BMS) modules in electric vehicles require parallel transmission of high current and small signals between module boards, while also demanding extremely low embedding depth and the ability to automatically absorb horizontal docking errors. Jiatel’s Pogo Pins can achieve a module embedding depth of only 2.50mm and automatically absorb ±0.30mm of horizontal docking error. Jiatel’s Pogo Pins are not just meeting current demands but are “enabling technologies” for future technological trends. They are key components supporting the high performance, high integration, and high reliability of next-generation intelligent systems such as electric vehicles and robots, reflecting Jiatel’s core role in promoting industry technological advancement.

Automated Test Equipment (ATE) and Prototyping

In Automated Test Equipment (ATE), Jiatel Pogo Pins help optimize connector layouts in compact spaces and accommodate the need to establish connections with multiple points on the Device Under Test (DUT). For engineers prototyping new devices or systems, Pogo Pins also provide a convenient way to create temporary, adjustable connections, simplifying the testing and verification process without permanent soldering.

Smart Home

Jiatel Pogo Pin connectors also provide an ideal charging solution for smart home devices. In smart switches, smart sockets, sensors, and other devices, they enable the interconnection of whole-house smart devices, eliminating messy cables and providing a seamless smart charging experience, truly making smart homes interconnected.

5. Jiatel’s Commitment to Quality and Innovation

Jiatel not only provides excellent Pogo Pin chargers but also, with its firm commitment to quality and strong innovation capabilities, becomes a trusted partner for customers.

5.1 Precision Manufacturing and Customization Services

Jiatel possesses strong R&D and manufacturing capabilities, offering high-precision customized elastic connection solutions. Jiatel’s spring-loaded pins are precisely machined to ensure connectors have high quality, low resistance, and compatibility, giving them an advantage in the rapidly evolving field of electronic interconnection.

Jiatel offers a wide range of customization options to meet specific customer needs:

Jiatel Pogo Pin Customization Specifications at a Glance

Jiatel not only provides a wide range of customization options but also clearly defines fast customization cycles and transparent mold fees. For example, Pogo Pin connector plastic base molds can be customized within 4 weeks (costing approximately US$2,0004,000),andcustombatterycontactsalsotakeonly4weeks(costingapproximatelyUS$600~800). This “rapid response customization” capability is Jiatel’s core competitiveness. It means that Jiatel can closely cooperate with customers’ R&D cycles, quickly transforming innovative ideas into actual products, especially for customers who require rapid iteration or have unique design constraints, Jiatel is an ideal partner. This sets it apart from the competition, transforming it from a mere manufacturer into a co-developer of solutions.

5.2 Strict Quality Control and Certifications

Jiatel’s commitment to product quality is reflected in its rigorous quality control system. All Pogo Pin connectors undergo 100% inspection before leaving the factory, ensuring that every product meets the highest standards.

Jiatel conducts comprehensive product testing, including:

• Salt-fog test: Used to evaluate the product’s corrosion resistance, ensuring stability even in harsh environments.
• Spring force test: Ensures consistent contact pressure for each Pogo Pin, thereby guaranteeing reliable electrical connection.
• Contact resistance COC: Ensures conduction stability, minimizing signal loss.

Furthermore, Jiatel is ISO 9001:2015 certified (Certificate No.: ias25924q1358r0s, valid until March 11, 2027), covering connectors, cable assemblies, stamping terminals, and precision machined pins. These quality assurance measures are not just internal processes; they are “signals of trust” that Jiatel conveys to its customers. In the highly competitive and technologically complex field of electronic manufacturing, Jiatel effectively reduces customers’ procurement risks and builds a foundation for long-term cooperation through transparent quality control and third-party certifications. This is crucial for enterprises with strict requirements for supply chain stability and product reliability.

5.3 Professional Engineering Support and Rapid Response

Jiatel boasts a team of experienced professional engineers with over 10 years of industry experience, ensuring a full understanding of customer needs and transforming customer ideas into feasible solutions. This professional capability is the foundation of Jiatel’s customized services.

Jiatel also commits to responding to customer inquiries within 12 hours and providing official drawings for customer final review and confirmation, ensuring efficient and smooth communication and accelerating project progress. Jiatel is not just a product supplier; it is a “technical partner.” This professional support and rapid response capability greatly enhance customer efficiency during project development, reducing communication barriers and delays. This allows customers to focus more on their core business and product innovation, while confidently entrusting the complexity of the connector part to Jiatel.

6. Key Considerations for Choosing Jiatel Pogo Pin Chargers

When selecting the most suitable Jiatel Pogo Pin charger for your application, consider the following key factors to ensure optimal performance and long-term reliability:

• Alignment and Cleanliness: Ensure good alignment between the Pogo Pins and charging contacts, and keep them clean and free of debris to maintain optimal electrical contact. Jiatel’s magnetic adsorption design helps achieve precise alignment, simplifying operation.
• Compatibility and Electrical Requirements: Based on your device needs, select a compatible charger model and specify the required current capacity, voltage requirements, and signal integrity standards. Jiatel offers extensive customization services to meet specific electrical specifications, ensuring a perfect match for your application.
• Environmental Adaptability and Durability: Consider the device’s operating environment, including temperature, humidity, vibration, and potential corrosive substances. Choose Jiatel Pogo Pin products with corresponding resistance and durability (e.g., gold plating for corrosion resistance, high-strength springs) to ensure stable and reliable performance under various harsh conditions.

7. Conclusion: Partner with Jiatel for Excellence

Jiatel, as a leader in the Pogo Pin connector field, not only provides high-performance, high-reliability Pogo Pin chargers but also, with its excellent customization capabilities, strict quality control, and professional engineering support, becomes an ideal partner on the path to innovation.

Choosing Jiatel means choosing unparalleled durability, ultimate space efficiency, stable and efficient power and signal transmission, simplified assembly processes, and superior user experience. Jiatel’s Pogo Pin solutions will inject powerful momentum into your next-generation products, helping you stand out in the market. We firmly believe that through cooperation with Jiatel, customers will be able to achieve more innovative, reliable, and competitive products. Contact Jiatel today to embark on your customized connectivity journey and jointly shape the future of electronic products.

8. Frequently Asked Questions (FAQs)

What is a Pogo Pin charger?

A Pogo Pin charger is a system that uses spring-loaded precision connectors (i.e., Pogo Pins) for power transmission. It establishes electrical connections through physical contact rather than traditional plugging and unplugging, thereby achieving a convenient, efficient, and durable charging process.

How does Jiatel Pogo Pin ensure connection stability?

Jiatel Pogo Pins ensure stable and reliable electrical connections even with multiple mating cycles and vibrations, through precisely machined components (plunger, spring, barrel), high-quality gold-plated materials, and strict spring force control and low contact resistance design. Some Jiatel products also support magnetic adsorption and innovative 3D spring force self-adjusting structures, further enhancing connection precision and stability.

Can Jiatel customize Pogo Pin chargers for specific needs?

Yes, Jiatel offers comprehensive customization services to meet specific customer needs. Customization options include pin length, pitch, plating materials, current/voltage specifications, plastic insulator shapes, materials, and colors, as well as special designs like 90-degree right angles. Jiatel has a team of experienced engineers and a fast customization cycle, capable of transforming customers’ unique ideas into viable products.
