General Info

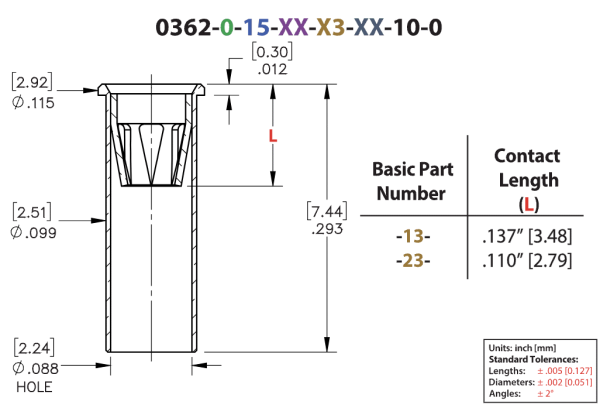

Description : Receptacle With No Tail
Mounting Feature : Solder Mount
Mounting Hole: 0.103″ (2,616mm) Pin Diameter
Range: 0.048″-0.064″ (1,219-1,626mm)
Packaging: Packaged in Bulk
RoHS: No
Product Lifecycle : Active

Materials

Shell Material : Brass Alloy
Shell Plating : 200 – 300 μ” Tin/Lead over Nickel
Contact Plating : 30 μ” Gold over Nickel

Technical Specs

Mechanical life (Durability) : 1,000 Cycles Minimum
Operating Temperature Range : -55/+125° C
Current Rating : 5.2A @ 10°C Temperature Rise
Contact Resistance : 10 mΩ Max
Shock : No Elect. Discontinuity > 1μs @ 50g
Vibration : No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
