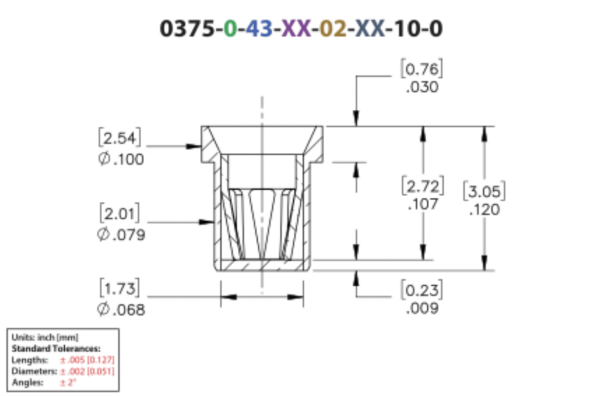

Circuit Board Hardware – Alternative of MillMax 0375-0-43 Receptacle With OFP Solder Barrier

Overview

Description:  Receptacle With OFP Solder Barrier
Accepts 0.040″-0.050″ (1,016-1,270mm) diameter leads.
Mounting Feature: Solder Mount
Mounting Hole:  0.084″ (2,134mm)
Product Family:  Pin Receptacle

General Info

Mounting Feature : Solder Mount
Mounting Hole: 0.084″ (2,134mm)
Pin Diameter Range: 0.040″-0.050″ (1,016-1,270mm)
Packaging: Packaged in Bulk With Organic Fibre Plug
RoHS : Yes
Product Lifecycle : Active

Materials

Shell Material :  Brass Alloy
Shell Plating :  10 μ” Gold over Nickel Contact
Plating :  Gold over Nickel

Technical Specs

Mechanical life (Durability) :  500 Cycles Minimum
Operating Temperature Range :  -55/+125° C
Current Rating :  4A @ 10°C Temperature Rise
Contact Resistance :  10 mΩ Max
Shock :   No Elect. Discontinuity > 1μs @ 50g
Vibration :  No Elect. Discontinuity >1μs @ 10-2000HZ, 20 G
