Mill-Max 0463 Receptacle With A Standard Tail

Market Alert: Facing rising raw material costs? Our engineers can help you optimize your plating thickness (from 1u" to high-end 10u") to meet both performance and budget.

Read Guide: A Comprehensive Analysis of Gold Plating →
Current Rating

3A
Durability

1,000 Cycles
Download Technical Datasheet

Description: Alternative of Mill-Max Receptacle With A Standard Tail Accepts .015″-.022″ (0,381-0,559mm) diameter leads.



Mounting Feature:
Press-Fit into a Non-Plated Through Hole (NPTH)
Mounting Hole:  .043″ (1,092mm)
Tail Type: Soldertail
Tail Diameter: .020″ (0,508mm)
Alternate Mounting:Through-Hole Soldertail Mount

Product Family:Pin Receptacle

Materials

Shell Material : Phosphor Bronze
Shell Plating : 10 μ” Gold over Nickel
Contact Plating : 10 μ” Gold over Nickel

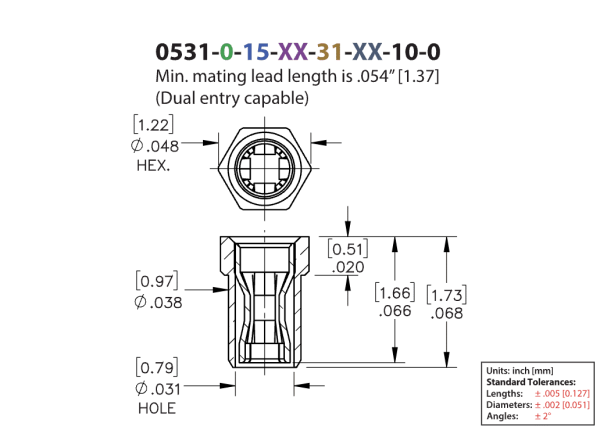

mill-max 0531

Technical Specs

Mechanical life (Durability) : 1,000 Cycles Minimum
Operating Temperature Range : -55/+125° C
Current Rating : 3A @ 10°C Temperature Rise
Contact Resistance : 10 mΩ Max
Shock : No Elect. Discontinuity > 1μs @ 50g
Vibration : No Elect. Discontinuity >1μs @ 10-2000HZ, 20 G
Part No Shell Plating  Contact Plating RoHS
0463-0-15-01-21-02-04-0 01: – 200 – 300 μ” Tin/Lead over Nickel 02: 100 – 200 μ” Tin/Lead over Nickel No
0463-0-15-01-21-27-04-0 01: – 200 – 300 μ” Tin/Lead over Nickel 27: 30 μ” Gold over Nickel No
0463-0-15-15-21-14-04-0 15: – 10 μ” Gold over Nickel 14: 10 μ” Gold over Nickel Yes
0463-0-15-15-21-27-04-0 15: – 10 μ” Gold over Nickel 27: 30 μ” Gold over Nickel Yes
0463-0-15-80-21-14-04-0 80: – 200 – 300 μ” Tin (matte finish) over Nickel 14: 10 μ” Gold over Nickel Yes
0463-0-15-80-21-27-04-0 80: – 200 – 300 μ” Tin (matte finish) over Nickel 27: 30 μ” Gold over Nickel Yes
0463-0-15-80-21-84-04-0 80: – 200 – 300 μ” Tin (matte finish) over Nickel 84: 100 – 200 μ” Tin (matte finish) over Nickel Yes
