Description

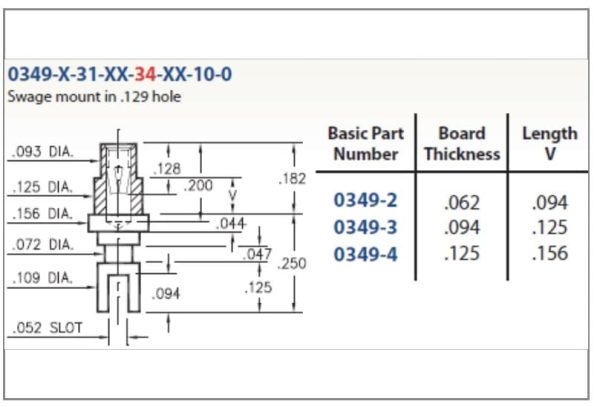

Swage Mount Receptacle Accepts .032″-.046″ (0,813-1,168mm) diameter leads.
Mounting Feature Swage Mount
Mounting Hole 0.129″ (3,277mm)
Tail Type None
Product Family Pin Receptacle
Pin Diameter Range .032″-.046″ (0,813-1,168mm)
Packaging. Packaged in Bulk
RoHS No
Product Lifecycle Active
Materials
Shell Material Brass Alloy
Shell Plating 100 – 200 μ” Tin/Lead over Nickel
Contact Plating 100 – 200 μ” Tin/Lead over Nickel
Technical Specs
Mechanical life (Durability) 500 Cycles Minimum
Operating Temperature Range -55/+125° C
Current Rating 8A @ 10°C Temperature Rise
Contact Resistance 10 mΩ Max
Shock No Elect. Discontinuity > 1μs @ 50g
Vibration No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
