1*6 female Header

1*6 Pin Female Header Socket

**Industrial-Grade 1*6 Pin Female Header Socket – 0.1” Spacing, Gold-Plated Contacts**

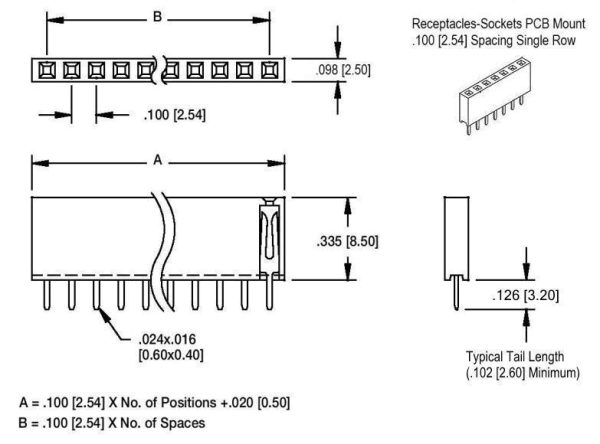

1*6 female Header drawing

Engineered for precision and durability, our 1×6 Female Header Socket delivers secure connectivity for professional and DIY PCB applications.

Technical Specifications

Pitch: 0.1” (2.54mm) centerline spacing for compatibility with standard breadboards.
Contact Material: Gold-plated phosphor bronze for superior conductivity and corrosion resistance.
Mounting: Through-hole solder tails for stable PCB installation.
Housing: Flame-retardant PA6T (UL 94 V-0), operating temperature range: -40°C to +105°C.
Physical Dimensions: 0.335” (8.5mm) body height, compact yet robust.

Key Features

Perfect Fit: Mates with 0.025” square post headers for secure mating.
High Performance: 1A current rating, 1000V AC voltage resistance.
Versatile Use: Ideal for prototyping, industrial automation, medical devices, and automotive systems.

Why Choose Our Header Socket?

Bulk Discounts: Save on large quantities for production needs.
Free Samples: Test compatibility before purchase.
Quality Assurance: RoHS compliant with 90-day satisfaction guarantee.

Need a Custom Solution?

Small Connector, Big Connection.

Jiatel help you in your Printed Circuit Board Connectors & Cable Assemblies.

One stop supply for interconnect product
Strong Ability in building molds/ tooling
Custom Make Ability , Engineer over 12 Years Experience Help you from concept to Product
Support Small trial lot
Order from factory, huge savings!
Within 12 hours Fast response
365 days quality assurance
Economic shipping charge, stable forwarder cooperate with us over 10 years.
