Industrial-Grade 3*12 (36 Pin) Female Header Socket – 0.1” Spacing for Electronics, Automotive, Medical & Home Appliances

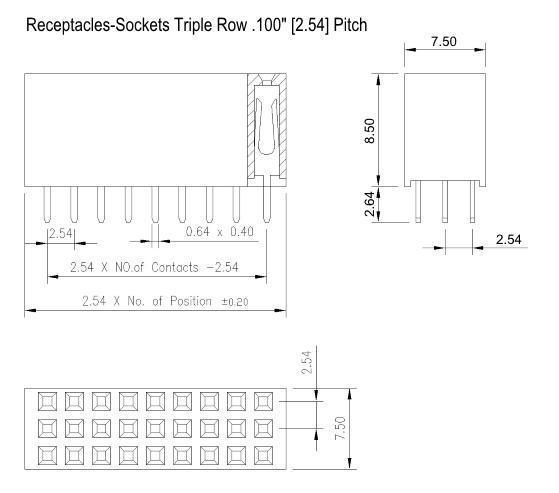

Technical Specifications

• Pitch: 0.1” (2.54mm) centerline spacing, 0.1” row spacing for triple-row design.
• Contact Material: Gold-plated phosphor bronze for superior conductivity and corrosion resistance.
• Mounting: Through-hole solder tails with 2.64mm tail length for secure PCB installation.
• Housing: Flame-retardant PA6T (UL 94 V-0), operating temperature: -40°C to +105°C.
• Physical Dimensions: 8.5mm body height, compact yet robust.

Key Features

• 36-Pin Configuration: Triple-row design (3×12) for space-efficient, high-density interconnections.
• Perfect Fit: Mates with 0.025” square post headers for secure mating.
• High Performance: 1A current rating, 1000V AC voltage resistance.

Applications

• Electronics: Smartphone motherboards, tablet interfaces, wearable devices.
• Home Appliances: Smart appliance controllers, LED lighting drivers, home theater systems.
• Automotive Electronics: Engine Control Units (ECUs), infotainment systems, sensor networks.
• Medical Devices: Patient monitors, portable diagnostic equipment, surgical instrument controls.

Why Choose Our Header Socket?

• Bulk Discounts: Save on large quantities for production needs.
• Free Samples: Test compatibility before purchase.
• Quality Assurance: RoHS compliant with 90-day satisfaction guarantee.
