Description: Alternative of Mill-Max 3450 Receptacle With A Standard Tail Accepts 0.037″-0.043″ (0,940-1,092mm) diameter leads.



Mounting Feature: Solder Mount
Mounting Hole:  0.045″ (1,143mm)
Tail Type:  Soldertail
Tail Diameter:  0.041″ (1,041mm)
Product Family:  Pin Receptacle
Packaging: Packaged in Bulk
RoHS: No
Product Lifecycle : Active



Materials

Shell Material : Brass Alloy
Shell Plating :  200 – 300 μ” Tin/Lead over Nickel
Contact Plating : 30 μ” Gold over Nickel

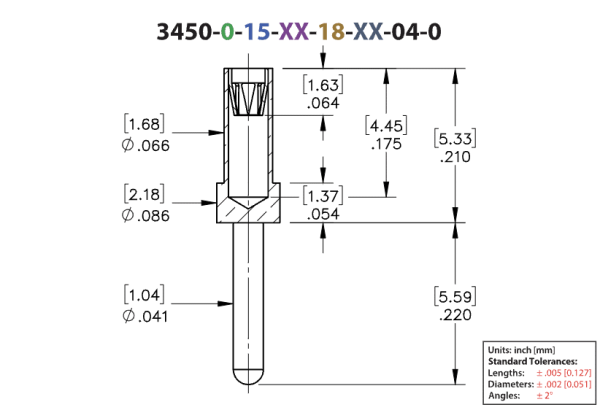

mill-max 3450 drawing Technical

Specs Mechanical life (Durability) : 1,000 Cycles Minimum Operating Temperature Range : -55/+125° C

Current Rating : 8A @ 10°C Temperature Rise

Contact Resistance : 10 mΩ Max

Shock : No Elect. Discontinuity > 1μs @ 50g

Vibration : No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
Part No. Shell Plating Contact Plating ROHS

3450-0-15-80-18-27-04-0

 80: – 200 – 300 μ” Tin (matte finish) over Nickel 27: 30 μ” Gold over Nickel Yes
3450-0-15-01-18-01-04-0 01: – 200 – 300 μ” Tin/Lead over Nickel 01: 200 – 300 μ” Tin/Lead over Nickel No
3450-0-15-01-18-27-04-0 01: – 200 – 300 μ” Tin/Lead over Nickel 27: 30 μ” Gold over Nickel No
3450-0-15-15-18-14-04-0 15: – 10 μ” Gold over Nickel 14: 10 μ” Gold over Nickel Yes
3450-0-15-15-18-27-04-0 15: – 10 μ” Gold over Nickel 27: 30 μ” Gold over Nickel Yes
3450-0-15-80-18-14-04-0 80: – 200 – 300 μ” Tin (matte finish) over Nickel 14: 10 μ” Gold over Nickel Yes
3450-0-15-80-18-80-04-0 80: – 200 – 300 μ” Tin (matte finish) over Nickel 80: 200 – 300 μ” Tin (matte finish) over Nickel Yes
