Description: Alternative of Mill-Max 3580 Straight Pin

Name: 3580 Straight Pin
Brand: Jiatel
Price: 0.10 USD
Availability: InStock

Mounting Feature:Through-Hole Solder Mount
Mounting Hole: 0.084″ (2,134mm)
Tail Type: Soldertail
Tail Diameter: 0.080″ (2,032mm)

Product Family: Printed Circuit Board (PCB) Pin

Packaging: Packaged in Bulk

RoHS : Yes

Product Lifecycle : Active

Shell Material : Brass Alloy

Shell Plating : 10 μ” Gold over Nickel

Operating Temperature Range : – 55/+125° C

Current Rating : Application Specific

Part No.	Shell Plating	ROHS
3580-0-00-15-00-00-03-0	15: – 10 μ” Gold over Nickel	Yes
3580-0-00-80-00-00-03-0	80: – 200 – 300 μ” Tin (matte finish) over Nickel	Yes
3580-1-00-15-00-00-03-0	15: – 10 μ” Gold over Nickel	Yes
3580-1-00-80-00-00-03-0	80: – 200 – 300 μ” Tin (matte finish) over Nickel	Yes
3580-2-00-15-00-00-03-0	15: – 10 μ” Gold over Nickel	Yes
3580-2-00-80-00-00-03-0	80: – 200 – 300 μ” Tin (matte finish) over Nickel	Yes

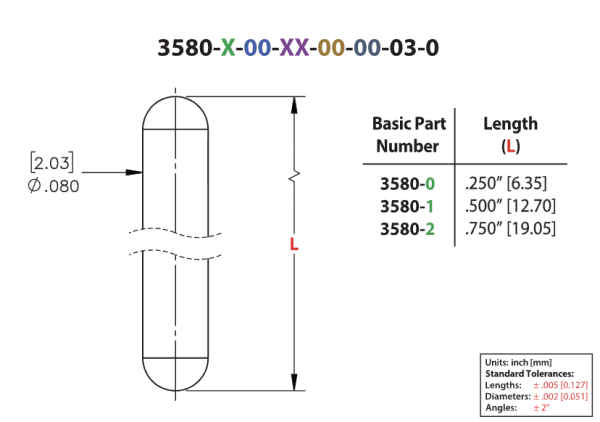

3580 Straight Pin
