mill-max 4914-0-00-15-00-00-03-0
mill-max 4914-0-00-80-00-00-03-0

4914 Solder Mount PCB Pin

Market Alert: Facing rising raw material costs? Our engineers can help you optimize your plating thickness (from 1u" to high-end 10u") to meet both performance and budget.

Read Guide: A Comprehensive Analysis of Gold Plating →
Plating

tin
Download Technical Datasheet

Description: Alternative of Mill-Max 4914 Solder Mount PCB Pin



Mounting Feature:Through-Hole Solder Mount
Mounting Hole:  0.079″ (2,007mm)
Tail Type: Soldertail
Tail Diameter: 0.080″ (2,032mm)
Alternate Mounting:Through-Hole Soldertail Mount
Alternate Mounting Hole:  0.084″ (2,134mm)
Product Family: Printed Circuit Board (PCB) Pin

Packaging: Packaged in Bulk
RoHS : Yes
Product Lifecycle : Active



Materials

Shell Material : Brass Alloy

Shell Plating :  10 μ” Gold over Nickel

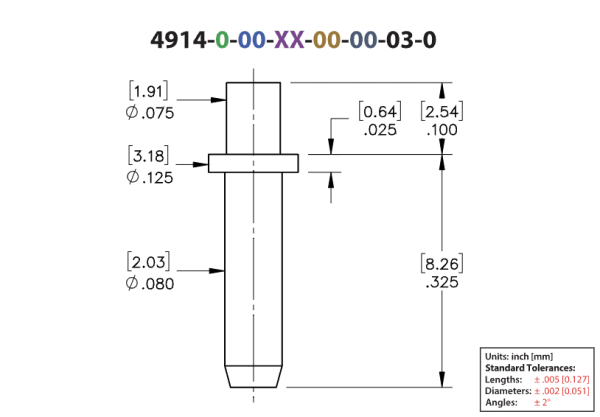

mill-max 4914 Drawing



Technical Specs

Operating Temperature Range : – 55/+125° C

Current Rating : Application Specific
Part No. Shell Plating Contact Plating ROHS
4914-0-00-15-00-00-03-0 15: – 10 μ” Gold over Nickel Yes
4914-0-00-80-00-00-03-0 80: – 200 – 300 μ” Tin (matte finish) over Nickel Yes
