mill-max 4428-0-67-15-04-14-10-0

MIll-Max 4428 Receptacle With OFP Solder Barrier

Market Alert: Facing rising raw material costs? Our engineers can help you optimize your plating thickness (from 1u" to high-end 10u") to meet both performance and budget.

Read Guide: A Comprehensive Analysis of Gold Plating →
Current Rating

2A
Durability

1,000 Cycles
Download Technical Datasheet

Description: Receptacle With OFP Solder Barrier Accepts .008″-.013″ (0,203-0,330mm) diameter leads.



Mounting Feature: Solder Mount
Mounting Hole:  0.032″ (0,813mm)
Tail Type: None

Product Family: Pin Receptacle

Pin Diameter Range: 0.008″-0.013″ (0,203- 0,330mm) Packaging: Packaged in Bulk With Organic Fibre Plug RoHS : Yes

Product Lifecycle : Active

Materials

Shell Material : Brass Alloy

Shell Plating : 10 μ” Gold over Nickel

Contact Plating : 10 μ” Gold over Nickel

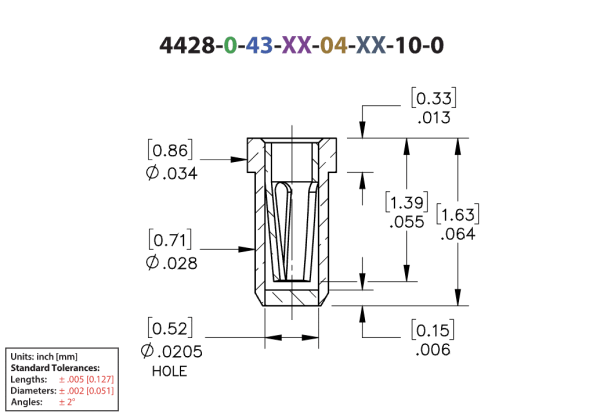

mill-max 4428 drawing

Technical Specs

Mechanical life (Durability) : 1,000 Cycles Minimum Operating Temperature Range : -55/+125° C

Current Rating : 2A @ 10°C Temperature Rise

Contact Resistance : 10 mΩ Max

Shock : No Elect. Discontinuity > 1μs @ 50g

Vibration : No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G
