mill-max 5556-0-00-15-00-00-38-0
mill-max 5556-0-00-01-00-00-38-0

5556 Crimp Terminal Pin

Market Alert: Facing rising raw material costs? Our engineers can help you optimize your plating thickness (from 1u" to high-end 10u") to meet both performance and budget.

Read Guide: A Comprehensive Analysis of Gold Plating →
Plating

tin
Download Technical Datasheet

Description: Alternative of Mill-Max  5556 Crimp Terminal Pin

Wire Termination: Crimp 30-36 AWG
Mounting Feature: Wire Mount
Tail Type: Soldertail
Tail Diameter: .020″ (0,508mm)
Alternate Mounting Hole:  .024″ (0,610mm)

Product Family: Printed Circuit Board (PCB) Pin

Packaging: Packaged in Bulk
RoHS : Yes
Product Lifecycle : Active

Materials

Shell Material : Brass Alloy

Shell Plating :  20 μ” Gold over Nickel

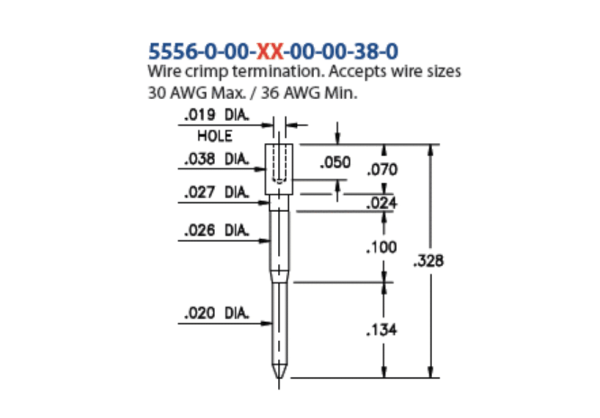

mill-max 5556 Drawing

Technical Specs

Operating Temperature Range : – 55/+125° C

Current Rating : Application Specific
Part No. Shell Plating Contact Plating ROHS
5556-0-00-01-00-00-38-0 01: – 200 – 300 μ” Tin/Lead over Nickel No
5556-0-00-15-00-00-38-0 15: – 10 μ” Gold over Nickel Yes
5556-0-00-21-00-00-38-0 21: – 20 μ” Gold over Nickel Yes
5556-0-00-34-00-00-38-0 34: – 50 μ” Gold over Nickel Yes
5556-0-00-80-00-00-38-0 80: – 200 – 300 μ” Tin (matte finish) over Nickel Yes
