mill-max 5037-0-00-15-00-00-03-0
5037 Solder Mount PCB Pin - Image 2
mill-max 5037-1-00-80-00-00-03-0

5037 Solder Mount PCB Pin

Market Alert: Facing rising raw material costs? Our engineers can help you optimize your plating thickness (from 1u" to high-end 10u") to meet both performance and budget.

Read Guide: A Comprehensive Analysis of Gold Plating →
Download Technical Datasheet

Description: Alternative of Mill-Max mill-max 5037 Solder Mount PCB Pin

Mounting Feature: Through-Hole Solder Mount
Mounting Hole: 0.024″ (0,610mm)
Tail Type: Soldertail
Tail Diameter:  0.030″ (0,762mm)
Alternate Mounting:Through-Hole Soldertail Mount
Alternate Mounting Hole:  0.034″ (0,864mm)

Product Family: Printed Circuit Board (PCB) Pin

Packaging:  Packaged in Bulk
RoHS :  Yes
Product Lifecycle : Active

Materials

Shell Material : Brass Alloy
Shell Plating :  10 μ” Gold over Nickel

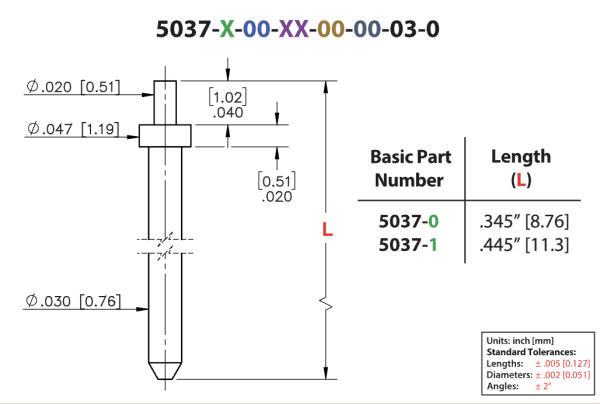

mill-max 5037 drawing

Technical Specs

Operating Temperature Range : – 55/+125° C
Current Rating :  Application Specific
Part No  Shell Plating  RoHS
5037-0-00-15-00-00-03-0 15: – 10 μ” Gold over Nickel Yes
5037-0-00-80-00-00-03-0 80: – 200 – 300 μ” Tin (matte finish) over Nickel Yes
5037-1-00-15-00-00-03-0 15: – 10 μ” Gold over Nickel Yes
5037-1-00-80-00-00-03-0 80: – 200 – 300 μ” Tin (matte finish) over Nickel Yes
