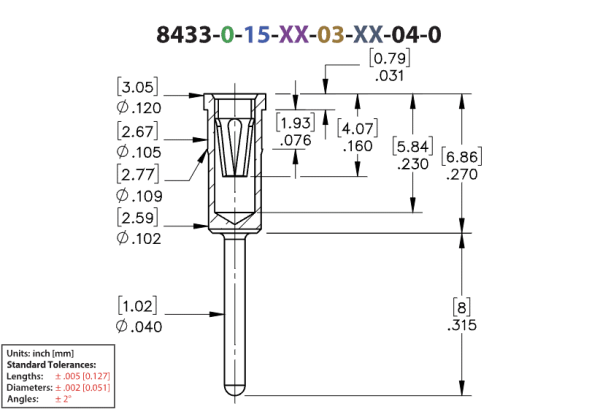

Description: Alternative of Mill-Max Receptacle With A Standard Tail Accepts .040″-.060″ (1,016-1,524mm) diameter leads.
|
Mounting Feature:Press-Fit into a Non-Plated Through Hole (NPTH) Product Family: Pin Receptacle Packaging: Packaged in Bulk Materials ShellMaterial : Brass Alloy Shell Plating : 10 μ” Gold over Nickel Contact Plating : 30 μ” Gold over Nickel |
Technical SpecsMechanical life (Durability) : 1,000 Cycles Minimum Operating Temperature Range : -55/+125° C Current Rating : 5A @ 10°C Temperature Rise Contact Resistance : 10 mΩ Max Shock : No Elect. Discontinuity > 1μs @ 50g Vibration : No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G |
| Part No. | Shell Plating | Contact Plating | ROHS |
|---|---|---|---|
|
8433-0-15-15-03-27-04-0
|
15: – 10 μ” Gold over Nickel | 27: 30 μ” Gold over Nickel | Yes |
| 8433-0-15-01-03-01-04-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 01: 200 – 300 μ” Tin/Lead over Nickel | No |
| 8433-0-15-01-03-27-04-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 27: 30 μ” Gold over Nickel | No |
| 8433-0-15-15-03-14-04-0 | 15: – 10 μ” Gold over Nickel | 14: 10 μ” Gold over Nickel | Yes |
| 8433-0-15-80-03-14-04-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 14: 10 μ” Gold over Nickel | Yes |
| 8433-0-15-80-03-27-04-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 27: 30 μ” Gold over Nickel | Yes |
| 8433-0-15-80-03-80-04-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 80: 200 – 300 μ” Tin (matte finish) over Nickel | Yes |
