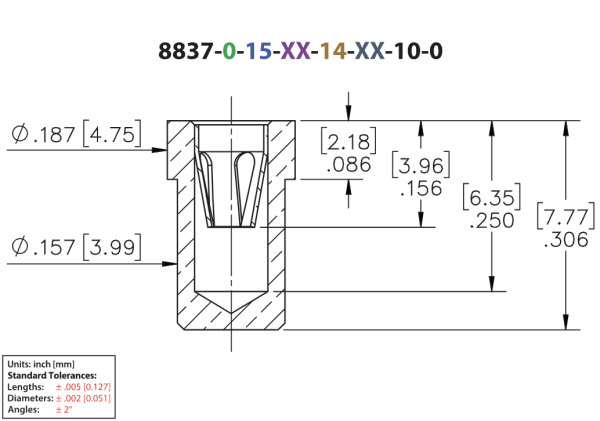

Description: Alternative of Mill-Max 8837 Receptacle With No Tail
Accepts .065″-.085″ (1,651-2,159mm) diameter leads.
|
Mounting Feature: Press-Fit into a Non-Plated Through Hole (NPTH)
MaterialsShell Material : Brass Alloy |
Technical SpecsMechanical life (Durability) : 1,000 Cycles Minimum Operating Temperature Range : -55/+125° C Current Rating : 8A @ 10°C Temperature Rise Contact Resistance : 10 mΩ Max Shock : No Elect. Discontinuity > 1μs @ 50g Vibration : No Elect. Discontinuity > 1μs @ 10-2000HZ, 20 G |
| Part No | Shell Plating | Contact Plating | RoHS |
| 8837-0-15-01-14-01-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 01: 200 – 300 μ” Tin/Lead over Nickel | No |
| 8837-0-15-01-14-27-10-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | 27: 30 μ” Gold over Nickel | No |
| 8837-0-15-15-14-14-10-0 | 15: – 10 μ” Gold over Nickel | 14: 10 μ” Gold over Nickel | Yes |
| 8837-0-15-15-14-27-10-0 | 15: – 10 μ” Gold over Nickel | 27: 30 μ” Gold over Nickel | Yes |
| 8837-0-15-80-14-14-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 14: 10 μ” Gold over Nickel | Yes |
| 8837-0-15-80-14-27-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 27: 30 μ” Gold over Nickel | Yes |
| 8837-0-15-80-14-80-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 80: 200 – 300 μ” Tin (matte finish) over Nickel | Yes |
| 8837-0-57-15-14-27-10-0 | 15: – 10 μ” Gold over Nickel | 27: 30 μ” Gold over Nickel | Yes |
| 8837-0-57-80-14-27-10-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | 27: 30 μ” Gold over Nickel | Yes |
