Circuit Board Hardware – Alternative of MillMax 0332 Receptacle Pins With OFP Solder Barrier

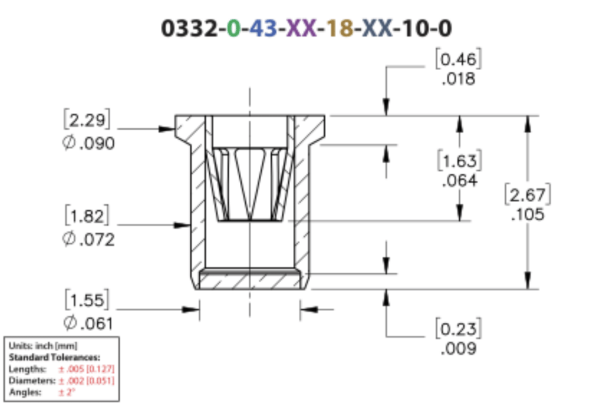

Circuit Board Hardware – PCB Receptacle Alternative of  MillMax Series 0332-0-43-80-18-27-10-0 With OFP Solder Barrier Accepts .018″-.023″ Diameter Leads

JIATEL Organic Fibre-Plug® (OFP) Receptacles cover a wide range of lead sizes and offer early engagement/dual-entry capability. JIATEL OFP receptacles prevent contamination of the critical contact area during assembly and reflow soldering of the receptacle onto the PCB. OFP receptacles also provide high reliability and a compact connection. The early engagement/dual-entry versions are ideal for mating with short pins for creating low-profile assemblies and for situations where a component must be assembled from the bottom side of the board.

Overview Description: Receptacle With OFP Solder Barrier Accepts 0.037″-0.043″ (0,940-1,092mm) diameter leads. Mounting Feature: Solder Mount Mounting Hole: 0.077″ (1,956mm) Product Family: Pin Receptacle General Info Description : Receptacle With OFP Solder Barrier Mounting Feature : Solder Mount Mounting Hole: 0.077″ (1,956mm) Pin Diameter Range: 0.037″-.043″ (0,940-1,092mm) Packaging: Packaged in Bulk With Organic Fibre Plug RoHS : Yes Product Lifecycle : Active

Materials Shell Material : Brass Alloy Shell Plating :100 – 200 μ” Tin (matte finish) over Nickel ContactPlating : Gold over Nickel Technical Specs Mechanical life (Durability) :500 Cycles Minimum Operating Temperature Range : -55/+125° C Current Rating : 4A @ 10°C Temperature Rise Contact Resistance : 10 mΩ Max Shock : No Elect. Discontinuity >1μs @ 50g Vibration : No Elect. Discontinuity >1μs @ 10-2000HZ, 20G

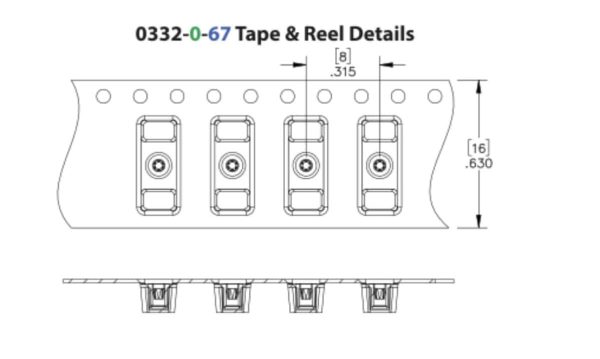

ADDITIONAL PARTS, PACKAGING, & ASSEMBLY INFO
