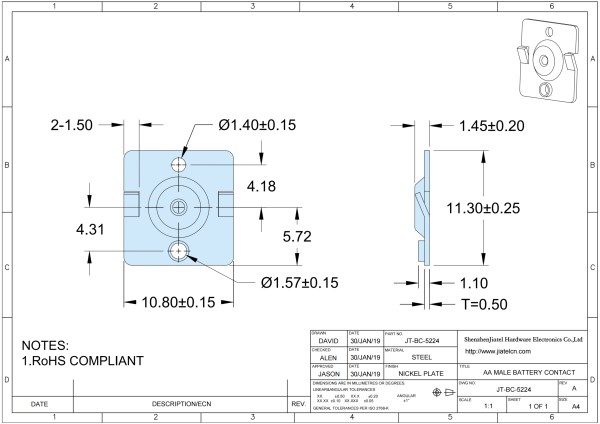

High Quality Steel Nickel Plated A, AA, Keystone 5224 Alternative CR2 Positive Battery Contact
| Part Number | JT-BC-5224 |
| Product Name | AA/14250 /1/2AA Battery Contact |
| Finish/Plating | Nickel Plate |
| Material | 0.50mm Steel |
| Battery Type, Function | Cylindrical, Contact (Single) |
| Style | Contact Solid (Positive) |
| Cell Size | A, AA, CR2 |
| Alternative | Keystone 5224 |
| Packaging | Bulk |
| Certificate | RoHS, REACH |
| Mating Spring Contact | JT-BC-5202 |
Battery Contacts for Molded Case Applications
AA Cell Battery Applications
These economical contacts are designed to “slide-in” to the battery compartment of electronic equipment. The coil spring contacts are designed with a unique spring tension ability and they accurately adjust to variations in battery length. Contacts will provide a reliable connection while maintaining a low contact resistance.
