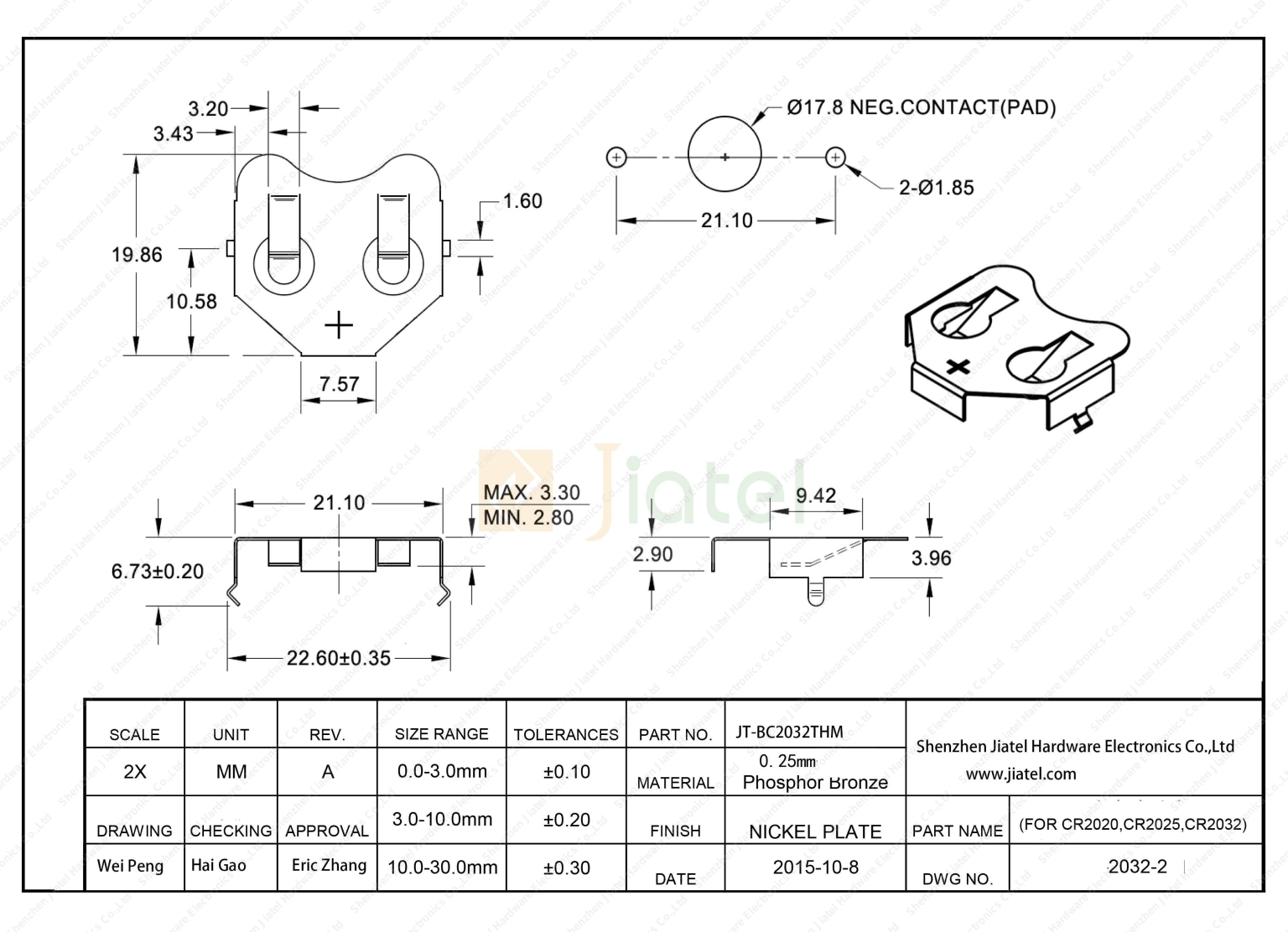

THM Battery Retainer CR2032

Jiatel P/N

JT-BC2032THM

Battery Compatibility 

CR2032

PCB Mount Orientation

Horizontal

Mounting

Through hole

Material

Phosphor Bronze

Surface Plating

Nickle 100μ“

Package

Bulk

Details about THM Battery Retainer CR2032

The CR2032 SMT Battery Contact is a precision-engineered component designed for efficient and reliable power connectivity in compact electronic devices. Each contact is subject to a 100% inspection before delivery, ensuring top-tier quality and performance.

Product Highlights:
  • Quality Guarantee: Rigorous inspection of every piece ensures reliability and longevity.
  • Packaging Options: Available in bulk with a Small Package Quantity (SPQ) of 1000 pcs, or on a reel for automated placement with an SPQ of 500 pcs per reel.
  • Material Strength: Constructed with Phosphor Bronze for excellent resistance to shock and vibration.
  • SMT and THM Versions: Offered in both Surface-Mount Technology (SMT) and Through-Hole Mount (THM) versions for diverse assembly requirements.
  • Compatibility: Designed to accommodate a range of coin cell sizes, including 12mm, 16mm, 20mm, 23mm, and 24mm.
Design and Application:
  • Low Profile Design: Ideal for devices where space is at a premium.
  • Economical Choice: Provides a cost-effective solution without sacrificing quality.
  • Stability: THM version features stable mounting legs for secure PCB retention during wave soldering processes.
  • Lightweight: Facilitates easy pick up and placement, enhancing the assembly process.

The CR2032 SMT Battery Socket, with its low-profile and economic design, is a reliable choice for various applications, including:

  • Portable Electronics: Where lightweight components are essential.
  • Industrial Equipment: Requiring stable and secure power connections.
  • Medical Devices: That demand high reliability and resistance to environmental stresses.

These battery contacts and holders are engineered to provide a secure and efficient power source for a wide range of electronic applications, ensuring your devices perform at their best.
