2 Position Spring Piston Connector Through Hole
| Product Number | 825-22-002-10-001101 |
| Description | CONN SPRING PISTON 2POS PCB |
| Manufacturer Standard Lead Time |
3 Weeks
|
|
Detailed Description
|
2 Position Spring Piston Connector Through Hole
|
Product Attributes
| Type | Description |
| Series | 825 |
| Packaging | Tube/Bulk |
|
Part Status
|
Active
|
|
Connector Type
|
Piston
|
|
Number of Contacts
|
2
|
| Pitch | 0.100″ (2.54mm) |
|
Number of Rows
|
1
|
|
Mounting Type
|
Through Hole
|
|
Material
|
Copper Alloy
|
|
Contact Finish
|
Gold
|
|
Contact Finish Thickness
|
20.0µin (0.51µm)
|
|
Base Product Number
|
825-22 |
|
Product Training Modules
|
Spring-Loaded Connectors |
|
Environmental Information
|
RoHS Cert |
Environmental & Export Classifications
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
|

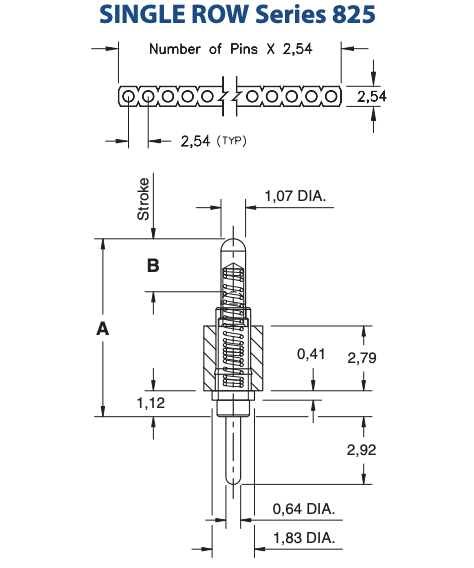

• Modular contacts for use on 2,54 grid, available in four heights from 7,67 to 9,96, supplied in single and double row contact strips • Precision-machined piston / base and gold-plated components assure up to 1,000,000 cycle life durability • Pistons have a 1,14 mid. stroke and a 2,29 max. stroke • Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak • High temperature thermoplastic insulators are suitable for surface mount processes • Both 825 & 827 series contact strips are designed for manual placement into Ø0,965±0,076 plated through-holes in the circuit board prior to hand, wave or reflow soldering |
|
Technical SpecificationsMaterials: |
