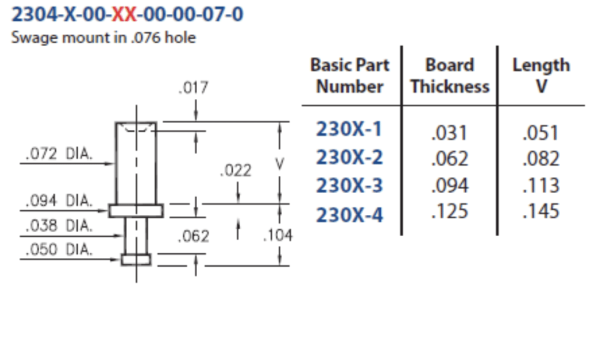

Description: Alternative of Mill-Max 2304 Turret Terminal Pin
|
Mounting Feature: Swage Mount
MaterialsShell Material : Brass Alloy Shell Plating : 200 – 300 μ” Tin (matte finish) over Nickel |
Technical SpecsOperating Temperature Range : – 55/+125° C Current Rating : Application Specific |
| Part No. | Shell Plating | Contact Plating | ROHS |
|---|---|---|---|
|
2304-3-00-80-00-00-07-0
|
80: – 200 – 300 μ” Tin (matte finish) over Nickel | Yes | |
| 2304-1-00-01-00-00-07-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | No | |
| 2304-1-00-44-00-00-07-0 | 44: – 300 μ” Silver over Copper | Yes | |
| 2304-1-00-50-00-00-07-0 | 50: – 300 – 500 μ” Electro-Solder (60/40 Tin/Lead) | No | |
| 2304-1-00-80-00-00-07-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | Yes | |
| 2304-2-00-01-00-00-07-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | No | |
| 2304-2-00-44-00-00-07-0 | 44: – 300 μ” Silver over Copper | Yes | |
| 2304-2-00-50-00-00-07-0 | 50: – 300 – 500 μ” Electro-Solder (60/40 Tin/Lead) | No | |
| 2304-2-00-80-00-00-07-0 | 80: – 200 – 300 μ” Tin (matte finish) over Nickel | Yes | |
| 2304-3-00-01-00-00-07-0 | 01: – 200 – 300 μ” Tin/Lead over Nickel | No |
