Magnetic Pogo Cable
Custom Magnetic Pogo Pin Cable Assemblies for Smart Devices
Jiatel’s Custom Magnetic Pogo Pin Cables provide a secure, quick-connect, and high-reliability solution for devices requiring frequent charging or docking. Utilizing the precision and durability of Pogo Pins, our magnetic connectors guarantee stable, low-resistance contact and high mating cycles, making them the preferred choice for consumer and industrial applications.
Targeted Applications:
- Smart Wearables: Watches, fitness trackers, and specialized sensors.
- Tracking Devices: GPS locators and asset management tools.
- Medical Equipment: Portable monitoring and diagnostic devices.
Precision Performance Specifications
Our magnetic cables are built around highly reliable Pogo Pin technology, offering flexibility across critical parameters:
| Specification Parameter | Standard Options / Range | Core Advantage |
| Pogo Pin Spring Force | 40gf, 60gf, 100gf | Fine-tuned force ensures optimal contact pressure without damaging device contacts. |
| Contact Plating | Gold Plating | Guarantees superior corrosion resistance and signal integrity, crucial for high-cycle use. |
| Current Withstand Option | 1A (Standard), up to 2A, 3A | Supports fast charging and high-power applications (Specify requirement for > 1A). |
| Pitch (Center-to-Center Spacing) | 2.54mm, 2.84mm, 3.0mm, 5.0mm | Select from existing tooling to reduce development time and cost. |
| Cable Length | 0.6m, 1.2m (Standard) | Standard lengths available for quick production runs. |
Full Mating Solutions: We provide both the magnetic cable assembly and the corresponding PCB-side female contact pads/sockets.
Comprehensive Customization Services
Jiatel provides full end-to-end customization, ensuring the magnetic cable perfectly integrates with your product’s industrial design.
✔️ Core Customizable Specifications:
- Higher Current Support: Up to 3A (requires specification and design review).
- Overmold Shape: Custom I-shape or T-shape overmold for improved ergonomics and strain relief.
- Cable Length: Any non-standard cable length can be specified.
- Pins Definition & Spring Force: Customized pin assignments and non-standard spring force values.
- Branding: Custom Logo Printing on the connector housing.
❗ Note: Pin-to-pin distance and the overall dimension of the existing magnetic design cannot be easily changed without new tooling. We will suggest using an existing product or building a new mold based on your requirements.
Your Trusted Engineering Partner
Jiatel understands the need for both performance and budget control. Our expert team will work with you to understand your exact requirements, offering an Low NRE/Tooling Costs (Starting under $2000) and fast turnaround.
Contact Jiatel’s expert immediately and send us your customized design in Step file format to begin the quotation process and receive your solution quickly.
Looking for PCB-side Pogo Pin Connectors? View our 2.5mm Series.
AA / AAA Battery Holder Selection
| Keystone P/N | Type | Mount / Contact | Cell | Jiatel Equivalent |
|---|---|---|---|---|
| 1022 | Dual AAA holder | SMT | 2 x AAA | View |
| 5228 | Dual AA spring contact | — | 2 x AA | View |
| 92 | Battery clip | PC pin (THM) | AA / 1/2AA | View |
| 5227 | Dual solid contact | — | 2 x AA | View |
| 5220 | Spring contact | Solder tab | A / AA / CR2 | View |
| 5202 | Spring contact | Slide-in | A / AA / CR2 | View |
| 56 | Battery contact | SMT | AAA / N / A23 | View |
| 57 | Battery contact | SMT | AA / CR2 | View |
| 5221 | Solid contact | Slide-in | A / AA / CR2 | View |
| 5219 | Solid contact | Solder tab | A / AA / CR2 | View |
Keystone part numbers are referenced for cross-reference only; Jiatel is not affiliated with Keystone Electronics.
Battery Clips & Spring Contacts Selection
Contact type drives retention force and assembly method. Match mount to your PCB process.
| Keystone P/N | Type | Mount / Contact | Cell | Jiatel Equivalent |
|---|---|---|---|---|
| 5228 | Dual AA spring contact | — | 2 x AA | View |
| 92 | Battery clip | PC pin (THM) | AA / 1/2AA | View |
| 5227 | Dual solid contact | — | 2 x AA | View |
| 5222 | Spring contact | Slide-in | AA | View |
| 56 | Battery contact | SMT | AAA / N / A23 | View |
| 5201 | Spring contact | Solder tab | A / AA | View |
| 5223 | Solid contact | Solder tab | AA | View |
Keystone part numbers are referenced for cross-reference only; Jiatel is not affiliated with Keystone Electronics.
OBD-II Harness Selection — 46 stock assemblies
Pick by interface and fitment. Figure gives the vehicle-side connector to the 16-pin OBD-II end. 15 adapters · 12 splitters · 8 cables · 5 connectors · 4 extensions · 1 jumper · 1 tester.
Request 2D Drawing & PinoutRequest a Custom Harness Quote
| Type | Model | Interface / config | Fitment | Detail |
|---|---|---|---|---|
| Adapter | Honda Motorcycle OBD2 16Pin to 6Pin Adapter Cable | 16-pin → 6-pin | Honda | View |
| Universal ECU Diagnostic Cable | — | Universal | View | |
| 12-Pin OBD Adapter Cable for 2012-2015 Tesla Model S & Mod | 12-pin | Tesla | View | |
| 14-Pin to 16-Pin OBD2 Adapter Cable for Mercedes-Benz Spri | 14-pin → 16-pin | Mercedes, Sprinter | View | |
| 20-Pin to 16-Pin OBD2 Adapter Cable for Tesla Model S & Mo | 20-pin → 16-pin | Tesla | View | |
| 6-Pin to OBD2 Adapter Cable for Harley-Davidson Motorcycle | 6-pin | Harley | View | |
| Benelli 6-Pin to 16-Pin OBD2 Adapter Cable for Motorcycle | 6-pin → 16-pin | Benelli | View | |
| Ducati 4-Pin to 16-Pin OBD2 Adapter Cable for Motorcycle D | 4-pin → 16-pin | Ducati | View | |
| Honda 3-Pin to 16-Pin OBD2 Adapter Cable | 3-pin → 16-pin | Honda | View | |
| J1708 6-Pin to OBD2 16-Pin Female Truck Adapter Cable | 6-pin → 16-pin · J1708 · M · F | — | View | |
| Mercedes-Benz 38-Pin to 16-Pin OBD2 Adapter Cable | 38-pin → 16-pin | Mercedes | View | |
| Mitsubishi 12-Pin to 16-Pin OBD2 Adapter Cable | 12-pin → 16-pin | Mitsubishi | View | |
| OBD2 Female Adapter Cable for Mercedes-Benz & Iveco Diagno | M · F | Mercedes, Iveco | View | |
| Polaris 8-Pin to 16-Pin OBD2 Diagnostic Adapter Cable | 8-pin → 16-pin | Polaris | View | |
| Tesla OBD2 Adapter | — | Tesla | View | |
| Cable | Audi 2x2 to 16-Pin OBD2 Diagnostic Cable for VAG Vehicles | 16-pin | Audi, VAG | View |
| BENZ SPRINTER 14PIN to 16PIN OBD2 Cable | 14-pin → 16-pin | Mercedes, Sprinter | View | |
| BMW ENET Cable | OBD2 to RJ45 Diagnostic Harness | RJ45 | BMW | View | |
| OBD2 16Pin Open-End Cable | 16-pin · Open end | — | View | |
| Best-Selling Custom J1939 9-Pin to OBD2 16-Pin Diagnostic | 9-pin → 16-pin · J1939 9-pin | Cummins | View | |
| Custom Truck Diagnostic Cable | 9-pin · DB62 D-SUB · J1939 9-pin · Deutsch 9-pin | Custom | View | |
| OBD2 16Pin to 6Pin Harley, Kawasaki, Yamaha, Suzuki Motorc | 16-pin → 6-pin | Harley, Kawasaki, Yamaha, Suzuki | View | |
| OBD2 Dashcam Power Cable | Plug-in | — | View | |
| Connector | Dongfeng Heavy-Duty Truck OBD Diagnostic Cable | 16-pin → 9-pin · M | Cummins, Dongfeng | View |
| Large-Size OBD2 Male Connector Housing | M | — | View | |
| OBD Copper Pin Connector Housing | — | Mitsubishi, Subaru | View | |
| OBD2 Male Connector | M | — | View | |
| Universal 6-Pin Diagnostic to JST 04R-JWPF-VSLE-S Connecto | 6-pin · JST | Universal | View | |
| Extension | For BMW Hidden Features Coding | RJ45 | BMW | View |
| OBD 8-Pin Switch Extension Cable with Bluetooth Connector | 8-pin | — | View | |
| OBD2 One-to-Two Extension Cable for Cars: Volkswagen, Audi | 1→2 | Audi, VW, Skoda | View | |
| OBD2 Extension Cable | M · F | — | View | |
| Jumper | K+CAN Universal Jumper Cable for ECU Bench Programming | — | Universal | View |
| Splitter | OBD2 16-Pin Male-to-Female Y-Splitter Extension Cable | 16-pin · M · F · Y-type | Universal | View |
| Custom Tesla Model 3/Y OBD2 Diagnostic Harness | 26-pin → 16-pin | Tesla | View | |
| L-Shaped 90-Degree OBD2 Splitter Extension Cable | 16-pin · 90° L · 0.3 m | — | View | |
| L-Shaped OBD2 One-to-Three Splitter Extension Cable | 1→3 · 90° L | — | View | |
| L-Shaped OBD2 Splitter Extension Cable | 1→2 · 90° L | — | View | |
| L-Shaped OBD2 Splitter Extension Cable | 16-pin · 1→2 · 90° L · Flat ribbon | — | View | |
| OBD2 Flat Splitter Extension Cable | 16-pin · 1→3 | — | View | |
| OBD2 Splitter Cable | 1→2 | — | View | |
| OBD2 Splitter Extension Cable | 16-pin · 1→2 · 0.15 m | — | View | |
| OBD2 Y Splitter Extension Cable | 16-pin · 1→2 · Y-type | Toyota, Kia | View | |
| OBD2 to 8-Port DB9 Female Splitter Cable | DB9 · M · F · 8-port | — | View | |
| Universal OBD2 16-Pin Y-Splitter Harness with Mounting Bra | 16-pin · Y-type | Universal | View | |
| Tester | OBD2 Female 16-Pin Jumper Tester for K-Line and CAN-bus | 16-pin · M · F | — | View |
-
-
-
-

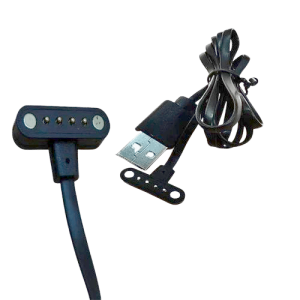

3PinMagnetic Pogo Pin USB Charging Cable,for tracking devices
Magnetic Pogo Cable -
Frequently asked questions
Will the magnet interfere with my device?
It can. Hall sensors, reed switches, compasses and some MEMS parts are sensitive to static fields. Where these sit close by, evaluate magnetic shielding or increase separation.
Can magnetic connectors be made waterproof?
Yes, with an O-ring and sealed contacts. The IP rating depends on the structure and the test condition, so it must be verified against the target level rather than inferred from the design.
