Spring Loaded Connector used in Wireless Lock
| Parameter | Specification |
| Pitch | 2.5mm (Customizable) |
| Current Rating | 2.0A |
| Spring Force | 60g ± 20g (Adjustable) |
| Durability | 100,000 Cycles |
| Plating | 3u” Gold over Nickel |
| Plastic Material | High-Temp LCP (Reflow Soldering Compatible) |
Why it’s perfect for Wireless Locks?
Engineered for Smart Wireless Locks & Security Devices
Security hardware requires high-reliability connections in compact spaces. Our 2.5mm pitch 2-pin spring-loaded connector is specifically optimized for Wireless Lock battery charging and data synchronization.
Robust Vibration Resistance: Ensures stable power even when the door is slammed or under external vibration.
Space-Saving Vertical SMT: Minimizes PCB footprint, allowing for slimmer lock designs.
Corrosion Resistance: Standard 3u” Gold plating prevents contact oxidation in semi-outdoor environments.
2Pin Pogo Pin Connector Description :
High-Precision Mating Interface Jiatel provides both Spring-Loaded Male Connectors and Solid Brass Mating Target Pins. Our 2-pin system ensures a stable electrical path with low contact resistance (<30mΩ) and supports rapid blind-mating for consumer and industrial devices.
Jiatel Pogo Pin Header advantages
Flat bottom type: good stability, the bottom of the pin is flat bottom design, easy to solder with the PCB board.
Inserted board type: the tail of the pin with a positioning pin, and PCB board soldering, will not occur when the offset phenomenon, good positioning effect.
Bending type: tail bending, providing designers with more options in the use of space.
Double-headed type: double-headed double-action design, allowing engineers to have more space flexibility in board-to-board bi-directional connections.
Solder wire type: applicable to Cable end, easy to solder with wire.
Threaded type: special specifications to meet the different needs of customers while customizing according to customer needs
Features of 2pin spring-loaded connectors:
For meeting the special requirements of customers,Jiatel uses innovative spring pin connectors, self-developed standard specifications such as
1.27 pitch, 2.0 pitch, 2.54 pitch, 3.0 pitch, etc. single row, double row male and female mating connector specifications
We also provide a one-stop customization solution to meet customer’s special requirements.
1. The shape of the round polygon sector and the other shaped.
2. The pitch is greater than or equal to 1.27mm, and the number of pins is greater than or equal to twice.
3. Assembly method: SMT, DIP. 90-degree bending soldering line, etc.
4. Positioning mode, groove seal, snap-lock positioning, and positioning post
5. plastic material, PA66, PA9T, LCP, HTN, ABS, etc.
The plastic color can be customized according to Pantone color.
Adapter extension, Pcb wire harness fpc io connector base etc.
More about Jiatel Custom Fields, please click here.
Jiatel Pogo Connector Application:
|
|
|
|

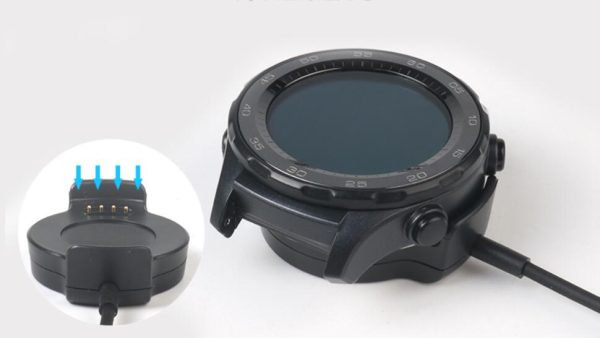

| Wearing Devices | Smart Watch | Magnet Cable | Keyboard |
